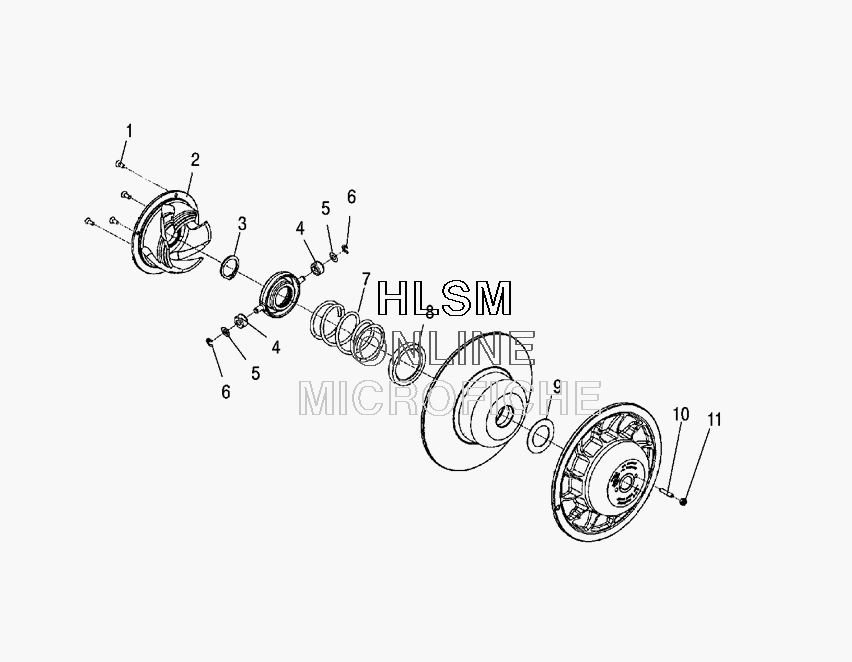

CLUTCH - DRIVEN для Polaris 400 IQ AND EURO (S07MX4CS/CE) - 2007 года выпуска

  • №
    Артикул
    Название
  • -
    1322705 ASM-DRVNCLTCH, TEAM, BSC, LWT, THN (INCL. 3-6, 8-11)
    ASM-DRVNCLTCH, TEAM, BSC, LWT, THN (INCL. 3-6, 8-11)
  • 1
    3233996 SCREW-CAP TORX SFCH1/4-28X.625
    SCREW-CAP TORX SFCH1/4-28X.625
  • 2
    5135438 RAMPDVN (70/44-.46)66/44-.46) LW
    RAMPDVN (70/44-.46)66/44-.46) LW
  • 3
    7710583 RET.RING-
    RET.RING-
  • 4
    5434534 ROLLER
    ROLLER
  • 5
    7556226 WASHER-THRUST
    WASHER-THRUST
  • 6
    7710523 RET.E-RING-E T.375
    RET.E-RING-E T.375
  • 7
    7043252 SPRING-DRIVE CLUTCH 160/280
    SPRING-DRIVE CLUTCH 160/280
  • 8
    7556227 WASHER-THRUST
    WASHER-THRUST
  • 9
    7556435 WASHER-1.510X2.950X.035
    WASHER-1.510X2.950X.035
  • 10
    3234228 SCREW-SET HEX SKT 1/4-20X1.25
    SCREW-SET HEX SKT 1/4-20X1.25
  • 11
    3233289 NUT, FLEXLOCK
    NUT, FLEXLOCK
