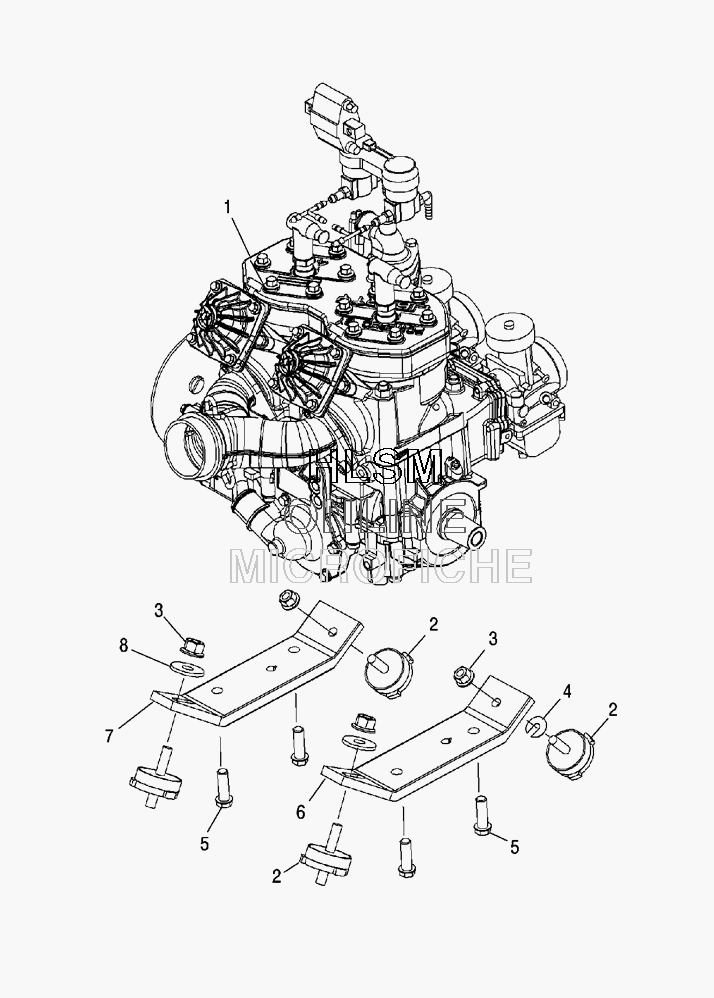

ENGINE MOUNTING W/ SHORT BLOCK для Polaris 400 IQ AND EURO (S07MX4CS/CE) - 2007 года выпуска
-
№АртикулНазвание
-
12202947 ENGINE (SEE NOTE)ENGINE (SEE NOTE)
-
23021717 ISOLATOR-RUBBERISOLATOR-RUBBER
-
37547180 NUT-FLANGED, 3/8-16 NYLON-ZNUT-FLANGED, 3/8-16 NYLON-Z
-
47556011 WASHERWASHER
-
57517399 SCREWSCREW
-
65134542 STRAP-ENGINE MNT, LEFT HANDSTRAP-ENGINE MNT, LEFT HAND
-
75134543 STRAP-ENGINE MNT, RIGHT HANDSTRAP-ENGINE MNT, RIGHT HAND
-
87555893 WASHER, FLATWASHER, FLAT
