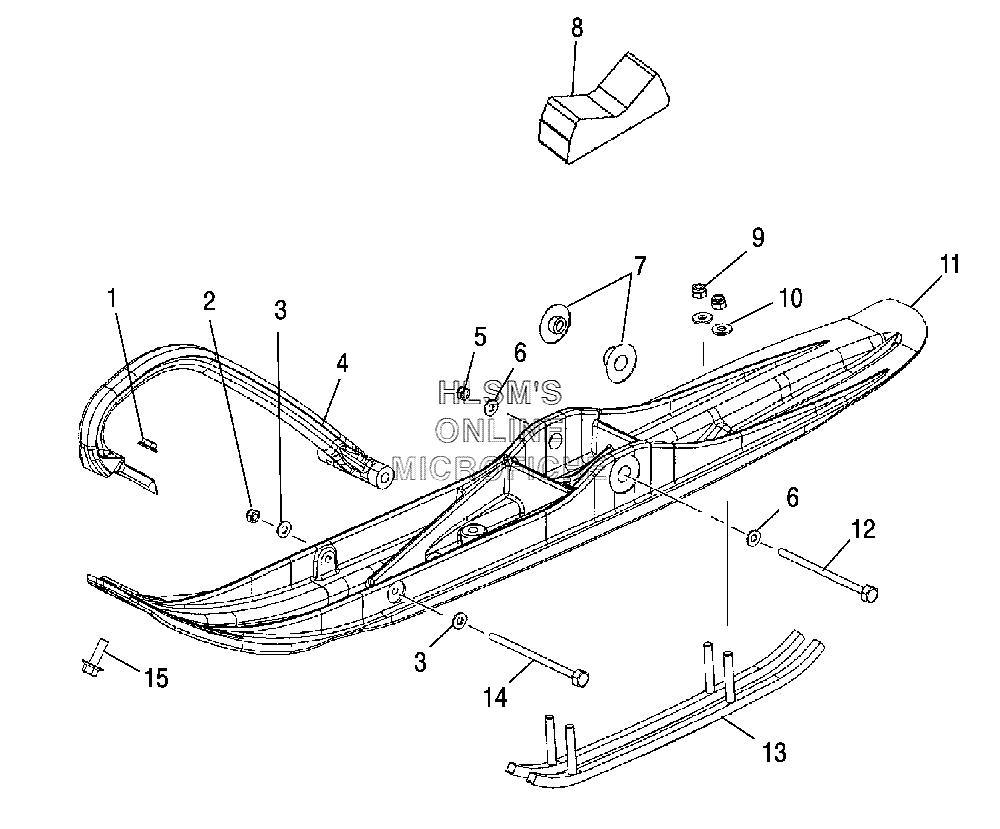

SKI ASSEMBLY для Polaris Trail RMK 136'' (S06NJ5BSA) - 2006 года выпуска
-
№АртикулНазвание
-
17542321 NUT, FLANGENUT, FLANGE
-
27542122 NUT-NYLOKNUT-NYLOK
-
37558301 WASHER, FLATWASHER, FLAT
-
45435681-293 TOE-PLASTIC, SKI (INDY RED)TOE-PLASTIC, SKI (INDY RED)
-
57542439 NUT, NYLOKNUT, NYLOK
-
67556130 WASHERWASHER
-
75132637 BUSHING, METAL (.390 ID)BUSHING, METAL (.390 ID)
-
85412018 STOP, RUBBERSTOP, RUBBER
-
97542324 NUT, NYLOKNUT, NYLOK
-
107555843 WASHER, WROUGHTWASHER, WROUGHT
-
111821335-070 SKI ASSY. (LEFT/BLACK) (INCL. 7)SKI ASSY. (LEFT/BLACK) (INCL. 7)
-
111821336-070 SKI ASSY. (RIGHT/BLACK) (INCL. 7)SKI ASSY. (RIGHT/BLACK) (INCL. 7)
-
127517968 SCREWSCREW
-
132874334 SKAG KIT, CARBIDE, 4'', 60ШSKAG KIT, CARBIDE, 4'', 60Ш
-
147518047 BOLTBOLT
-
157516317 SCREWSCREW
