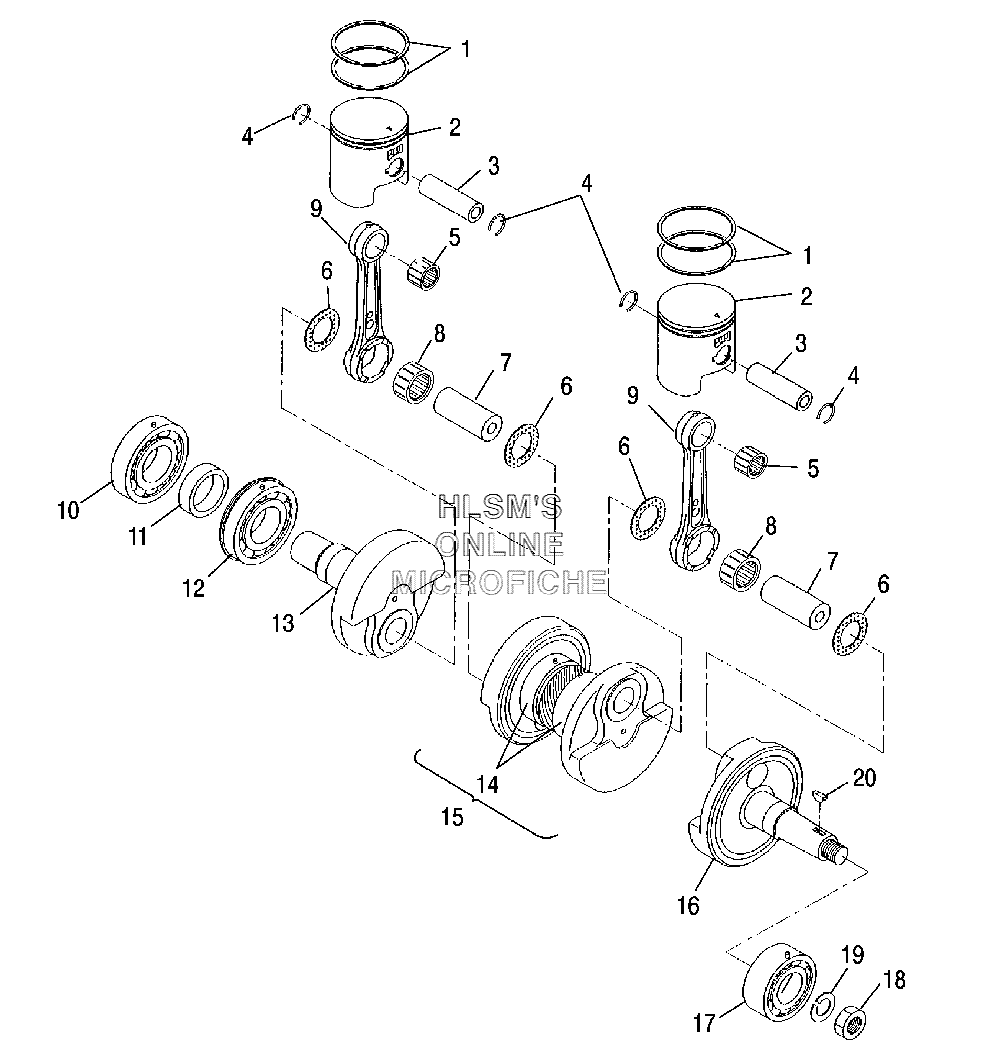

PISTON AND CRANKSHAFT для Polaris Trail RMK 136'' (S06NJ5BSA) - 2006 года выпуска

‹-+›
  • №
    Артикул
    Название
  • 1
    3086988 PISTON, RING (STD)
    PISTON, RING (STD)
  • 1
    3086989 PISTON, RING (.010''/.25MM O/S)
    PISTON, RING (.010''/.25MM O/S)
  • 1
    3086990 PISTON, RING (020''/50MM O/S)
    PISTON, RING (020''/50MM O/S)
  • 2
    3089485 PISTON (STD) (INCL. 4)
    PISTON (STD) (INCL. 4)
  • 2
    3089486 PISTON (.010''/.25MM O/S) (INCL. 4)
    PISTON (.010''/.25MM O/S) (INCL. 4)
  • 2
    3089487 PISTON (.020''/.50MM O/S) (INCL. 4)
    PISTON (.020''/.50MM O/S) (INCL. 4)
  • 3
    3083838 PIN, PISTON
    PIN, PISTON
  • 4
    3084167 CLIP, PISTON PIN
    CLIP, PISTON PIN
  • 5
    3085595 BEARING, SMALL END
    BEARING, SMALL END
  • 6
    3083277 SPACER, CRANKPIN
    SPACER, CRANKPIN
  • 7
    3083456 PIN, CRANK 2
    PIN, CRANK 2
  • 8
    3086390 BEARING-END, LARGE
    BEARING-END, LARGE
  • 9
    3240083 ROD, CONNECTING
    ROD, CONNECTING
  • 10
    3085754 BEARING, BALL
    BEARING, BALL
  • 11
    3085677 SPACER
    SPACER
  • 12
    3085753 BEARING, BALL
    BEARING, BALL
  • 13
    3089484 CRANKSHAFT 3 (PTO)
    CRANKSHAFT 3 (PTO)
  • 14
    3084586 BEARING, BALL
    BEARING, BALL
  • 15
    3085674 CRANKSHAFT 2, CENTER (INCL. 7)
    CRANKSHAFT 2, CENTER (INCL. 7)
  • 16
    3089483 CRANKSHAFT ASSY. (INCL. 6-17)
    CRANKSHAFT ASSY. (INCL. 6-17)
  • 16
    3087177 CRANKSHAFT 1 (MAG)
    CRANKSHAFT 1 (MAG)
  • 17
    3084681 BEARING, BALL
    BEARING, BALL
  • 18
    3083093 NUT
    NUT
  • 19
    3083094 WASHER-SPRING
    WASHER-SPRING
  • 20
    3081543 KEY WOODRUFF
    KEY WOODRUFF
