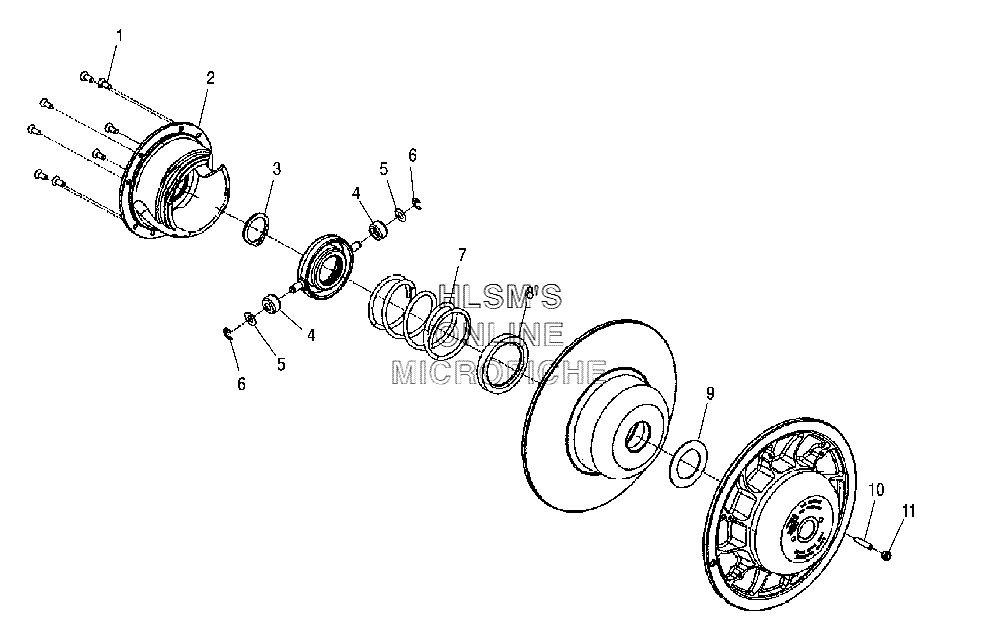

CLUTCH - DRIVEN для Polaris Trail RMK 136'' (S06NJ5BSA) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    3233996 SCREW
    SCREW
  • 2
    5133887 RAMP-DRIVEN
    RAMP-DRIVEN
  • 3
    7710522 RET.RING-EXT
    RET.RING-EXT
  • 4
    5434534 ROLLER
    ROLLER
  • 5
    7556226 WASHER-THRUST
    WASHER-THRUST
  • 6
    7710523 RET.E-RING-E
    RET.E-RING-E
  • 7
    7043057 SPRING-DRIVEN CLTCH (LEFT) (RED/BLUE)
    SPRING-DRIVEN CLTCH (LEFT) (RED/BLUE)
  • 8
    7556227 WASHER-THRUST
    WASHER-THRUST
  • 9
    3234033 SPACER
    SPACER
  • 10
    7518024 SCREW, SET
    SCREW, SET
  • 11
    3233289 NUT,FLEXLOCK
    NUT,FLEXLOCK
  • -
    1322433 DRIVEN CLUTCH ASSY., BASIC# 216HP (INCL. 3-6,8-11)
    DRIVEN CLUTCH ASSY., BASIC# 216HP (INCL. 3-6,8-11)
