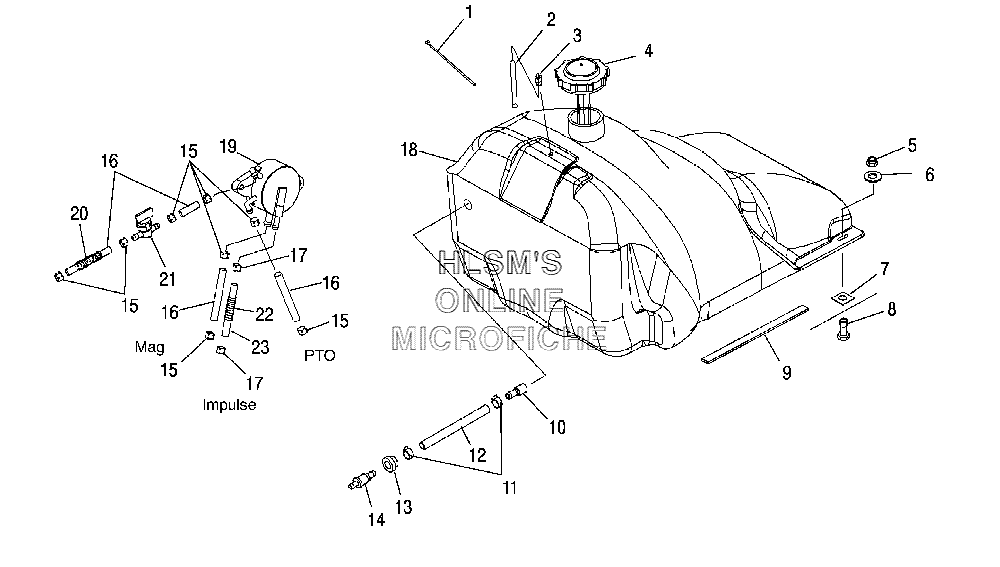

FUEL SYSTEM для Polaris Trail RMK 136'' (S06NJ5BSA) - 2006 года выпуска
-
№АртикулНазвание
-
17080804 CABLE TIE-RELEASABLECABLE TIE-RELEASABLE
-
27052095 FITTING, 90 DEG, 1/8FITTING, 90 DEG, 1/8
-
38450061-600 LINE, FUEL (3MMX7MM)LINE, FUEL (3MMX7MM)
-
42520323 CAP-FUEL, 12 GAL W/GAUGECAP-FUEL, 12 GAL W/GAUGE
-
45810512 GASKETGASKET
-
57542122 NUT-NYLOKNUT-NYLOK
-
67555960 WASHER, FLATWASHER, FLAT
-
77670021 NUT, SPEEDNUT, SPEED
-
87512193 BOLT, CARRIAGEBOLT, CARRIAGE
-
95810947 FOAM, SEALFOAM, SEAL
-
107052301 PICK-UP-FUEL, W/FILTERPICK-UP-FUEL, W/FILTER
-
117080402 RING, COMPRESSIONRING, COMPRESSION
-
128350019-160 FUEL LINE-ESTERFUEL LINE-ESTER
-
135435941 GROMMET-3/4''GROMMET-3/4''
-
147052375 FITTING-1/4 TO 1/4FITTING-1/4 TO 1/4
-
157080307 CLAMP, HOSECLAMP, HOSE
-
168350018-600 TUBING-ETHERTUBING-ETHER
-
177080003 CLAMP, HOSECLAMP, HOSE
-
182520467 FUEL TANK ASSY. (INCL. 2, 10-14)FUEL TANK ASSY. (INCL. 2, 10-14)
-
193089751 FUEL PUMP ASSY.FUEL PUMP ASSY.
-
204010051-30 CONDUIT, CONVOLUTED (30 CM)CONDUIT, CONVOLUTED (30 CM)
-
217052248 VALVE-FUEL,VALVE-FUEL,
-
228360052-30 TUBING-CONVOLUTEDTUBING-CONVOLUTED
-
238450040-600 LINE FUEL (1/4 ID 600 CM.)LINE FUEL (1/4 ID 600 CM.)
