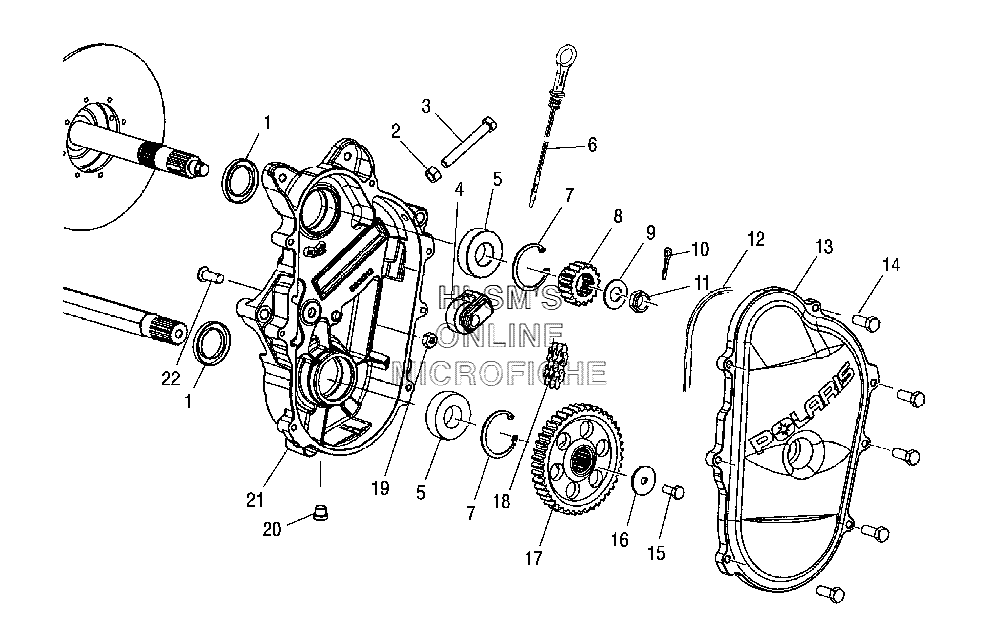

CHAINCASE ASSEMBLY для Polaris Trail RMK 136'' (S06NJ5BSA) - 2006 года выпуска
‹-+›
-
№АртикулНазвание
-
13610030 SEAL, OILSEAL, OIL
-
27542404 NUTNUT
-
37515459 SCREWSCREW
-
41341437 TIGHTENER ASSY., CHAINTIGHTENER ASSY., CHAIN
-
53514309 BEARING, BALL #6205BEARING, BALL #6205
-
61332143 ASM-DIPSTICK (INCL. O-RING)ASM-DIPSTICK (INCL. O-RING)
-
77718406 RING, RETAININGRING, RETAINING
-
83221095 SPROCKET, 3/4W, 15 SPLINE (19 TEETH)SPROCKET, 3/4W, 15 SPLINE (19 TEETH)
-
97571620 WASHER, SPRINGWASHER, SPRING
-
107661203 PIN, COTTERPIN, COTTER
-
117547202 NUTNUT
-
125812574 GASKET-CHAINCASE COVERGASKET-CHAINCASE COVER
-
135631354 COVER, CHAINCASECOVER, CHAINCASE
-
147512242 SCREWSCREW
-
157517979 SCREWSCREW
-
167571618 WASHER, SPRINGWASHER, SPRING
-
173221188 SPROCKET, 3/4W (43/15 TEETH)SPROCKET, 3/4W (43/15 TEETH)
-
183221109 CHAIN, HYVO. 74P 3/4WCHAIN, HYVO. 74P 3/4W
-
197542451 NUT, NYLOKNUT, NYLOK
-
207052115 PLUGPLUG
-
215134085 CHAINCASECHAINCASE
-
227515477 SCREW, CARRIAGESCREW, CARRIAGE
