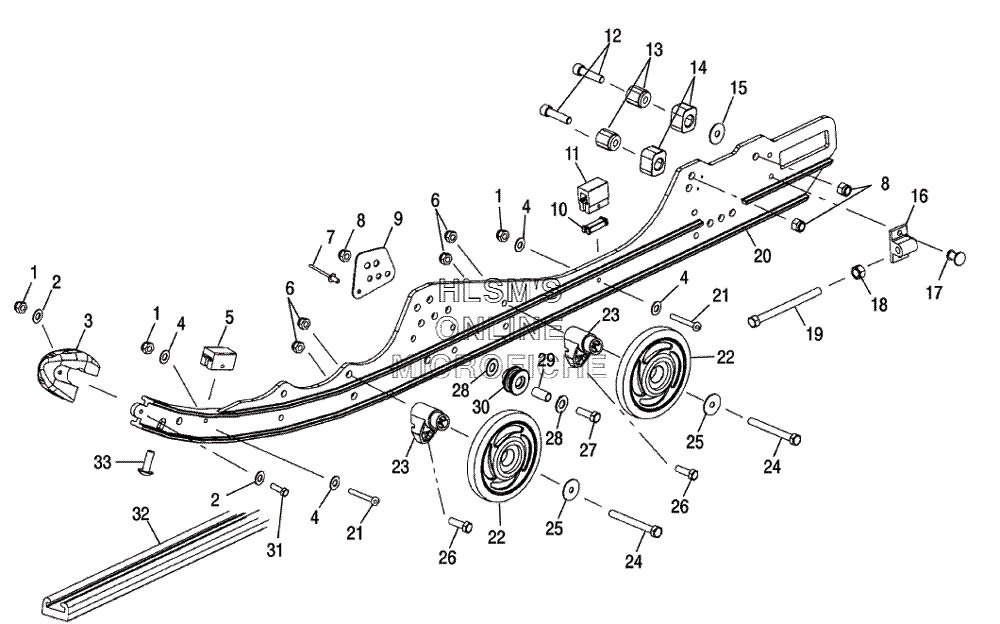

RAIL ASSEMBLY W/ IDLER WHEELS для Polaris Indy 500 (S06NB4BS) - 2006 года выпуска`
-
№АртикулНазвание
-
17541925 NUT, NYLOK 10-24 YNUT, NYLOK 10-24 Y
-
27555792 WASHERWASHER
-
35434374 CAP RAIL TIPCAP RAIL TIP
-
47555783 WASHER, FLATWASHER, FLAT
-
55521499 BUMPER, JOUNCE (FRONT)BUMPER, JOUNCE (FRONT)
-
67542324 NUT, NYLOKNUT, NYLOK
-
77661845 RIVETRIVET
-
87542439 NUT, NYLOKNUT, NYLOK
-
95244677 BRACKET RAIL REINFBRACKET RAIL REINF
-
105432946 LINER, BUMPERLINER, BUMPER
-
115521498 BUMPER, JOUNCE (REAR)BUMPER, JOUNCE (REAR)
-
127515537 BOLTBOLT
-
135131113 MOUNT, BUMPERMOUNT, BUMPER
-
145410925 BUMPER, PIVOT ARMBUMPER, PIVOT ARM
-
155244371 SPACERSPACER
-
165132444 BLOCK IDLER BOLT ADJUSTING, 7/16BLOCK IDLER BOLT ADJUSTING, 7/16
-
177621501 RIVETRIVET
-
187547156 NUT 7/16-14NUT 7/16-14
-
197517773 SCREW HEXAGON HEADSCREW HEXAGON HEAD
-
201541755 RAIL, 121" ASSY (LEFT) (INCL. 3, 5, 11, 14, 16)RAIL, 121" ASSY (LEFT) (INCL. 3, 5, 11, 14, 16)
-
201541756 RAIL, 121" ASSY (RIGHT) (INCL. 3, 5, 11, 14, 16)RAIL, 121" ASSY (RIGHT) (INCL. 3, 5, 11, 14, 16)
-
217510504 SCREWSCREW
-
221590275-446 WHEEL SCROLLED ASSY (COSMIC SUN)WHEEL SCROLLED ASSY (COSMIC SUN)
-
227718407 RING RETAINING (1 PER WHEEL)RING RETAINING (1 PER WHEEL)
-
223514303 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
235631065 BLOCK WHEEL MOUNT, LWTBLOCK WHEEL MOUNT, LWT
-
247515346 SCREWSCREW
-
257556179 WASHER SPRING, CONNECTINGWASHER SPRING, CONNECTING
-
267515317 BOLTBOLT
-
277515438 BOLTBOLT
-
287555983 WASHER, FLATWASHER, FLAT
-
295333948 SPACERSPACER
-
305433959 ROLLER SPRING, SQUAREROLLER SPRING, SQUARE
-
317511975 SCREWSCREW
-
325521571 SLIDER, XL SERVICE BASICSLIDER, XL SERVICE BASIC
-
337515199 SCREWSCREW
