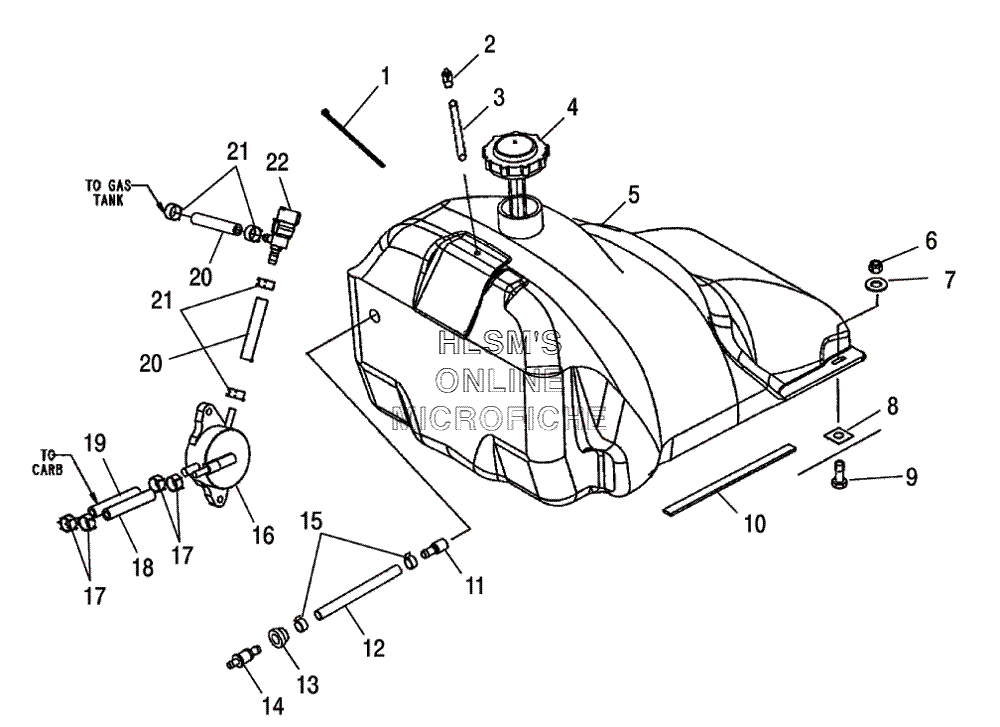

FUEL SYSTEM для Polaris Indy 500 (S06NB4BS) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    7080804 CABLE TIE RELEASABLE, 5 1/2"
    CABLE TIE RELEASABLE, 5 1/2"
  • 2
    7052095 FITTING, 90 DEG, 1/8
    FITTING, 90 DEG, 1/8
  • 3
    8450061-600 LINE, FUEL (3MMX7MM)
    LINE, FUEL (3MMX7MM)
  • 4
    2520323 CAP FUEL 12 GAL W/GAUGE
    CAP FUEL 12 GAL W/GAUGE
  • 4
    5810512 GASKET
    GASKET
  • 5
    2520467 FUEL TANK, ASSY (INCL. 2, 11-14)
    FUEL TANK, ASSY (INCL. 2, 11-14)
  • 6
    7542122 NUT NYLOK
    NUT NYLOK
  • 7
    7555960 WASHER, FLAT
    WASHER, FLAT
  • 8
    7670021 NUT, SPEED
    NUT, SPEED
  • 9
    7512193 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 10
    5810947 FOAM, SEAL
    FOAM, SEAL
  • 11
    7052301 PICK-UP FUEL W/FILTER 105 MICRON
    PICK-UP FUEL W/FILTER 105 MICRON
  • 12
    8350019-160 FUEL LINE ESTER
    FUEL LINE ESTER
  • 13
    5435941 GROMMET 3/4" VITON
    GROMMET 3/4" VITON
  • 14
    7052375 FITTING 1/4 TO 1/4, STRAIGHT
    FITTING 1/4 TO 1/4, STRAIGHT
  • 15
    7080402 RING, COMPRESSION
    RING, COMPRESSION
  • 16
    3086998 FUEL PUMP ASSY
    FUEL PUMP ASSY
  • 17
    7080003 CLAMP, HOSE
    CLAMP, HOSE
  • 18
    8450040-600 LINE FUEL (1/4 ID/600 CM.)
    LINE FUEL (1/4 ID/600 CM.)
  • 19
    8350017-600 FUEL LINE, ETHER 5/16" (RED)
    FUEL LINE, ETHER 5/16" (RED)
  • 20
    8350018-600 TUBING, ETHER ERETHANE SERVICE (160CM)
    TUBING, ETHER ERETHANE SERVICE (160CM)
  • 21
    7080307 CLAMP, HOSE
    CLAMP, HOSE
  • 22
    7052249 VALVE FUEL PLASTIC 90Ш 1/4 HOSE
    VALVE FUEL PLASTIC 90Ш 1/4 HOSE
