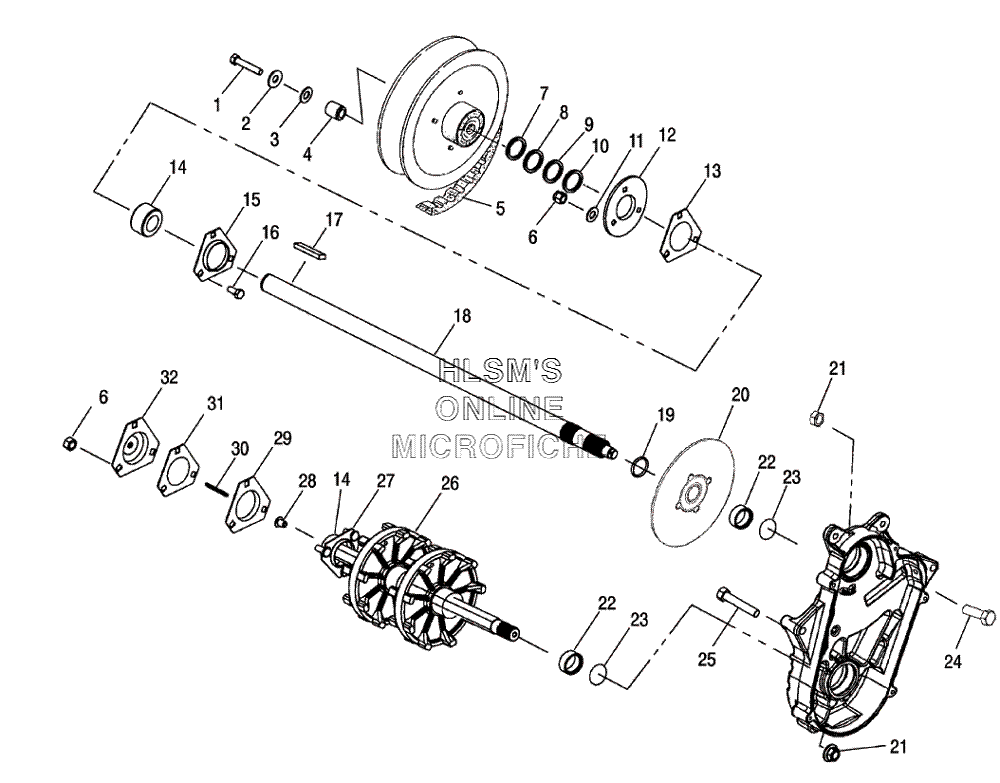

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris Indy 500 (S06NB4BS) - 2006 года выпуска`
-
№АртикулНазвание
-
17517820 BOLT HEXAGON/LKBOLT HEXAGON/LK
-
27555701 WASHER, FLATWASHER, FLAT
-
37555734 WASHER, FLATWASHER, FLAT
-
45020291 SPACERSPACER
-
53211078 BELT DRIVEBELT DRIVE
-
67542324 NUT, NYLOKNUT, NYLOK
-
77555917 WASHERWASHER
-
87555957 WASHERWASHER
-
97555864 WASHERWASHER
-
107556509 BUSHINGBUSHING
-
117558402 WASHER, FLATWASHER, FLAT
-
125241359 FLANGE RD, RELUBE W/ZERKFLANGE RD, RELUBE W/ZERK
-
127080561 FITTING, LUB/VENFITTING, LUB/VEN
-
135811095 GASKET, JACKSHAFT (BLACK)GASKET, JACKSHAFT (BLACK)
-
143514525 BEARINGBEARING
-
155222751 FLANGETTEFLANGETTE
-
167512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
177721128 KEYKEY
-
181332283 JACKSHAFT, W/BEARING ASSY (15T) (INCL. 14, 19)JACKSHAFT, W/BEARING ASSY (15T) (INCL. 14, 19)
-
197710422 RING, RETAININGRING, RETAINING
-
202202493 BRAKE DISC, FORGED KITBRAKE DISC, FORGED KIT
-
217542423 NUT, FLANGENUT, FLANGE
-
225020588 SLEEVE, SEALSLEEVE, SEAL
-
235410613 O-RINGO-RING
-
247518002 SCREW HEXAGON/CAPSCREW HEXAGON/CAP
-
257515428 BOLT, CARRIAGEBOLT, CARRIAGE
-
261590340 DRIVE SHAFT ASSY (INCL. 27, 28)DRIVE SHAFT ASSY (INCL. 27, 28)
-
271012945 FLANGETTE W/SCREWS ASSYFLANGETTE W/SCREWS ASSY
-
283280019 BUSHING METAL SPEEDOMETERBUSHING METAL SPEEDOMETER
-
295243529 FLANGETTE OFFSET, W/HOLEFLANGETTE OFFSET, W/HOLE
-
303280017 KEY, SPEEDOMETER SQUAREKEY, SPEEDOMETER SQUARE
-
315830012 GASKET, DRIVE ADAPTORGASKET, DRIVE ADAPTOR
-
323280116 ADAPTER, DRIVE W/ZERKADAPTER, DRIVE W/ZERK
-
327080433 FITTING, LUBRICATION THREADEDFITTING, LUBRICATION THREADED
