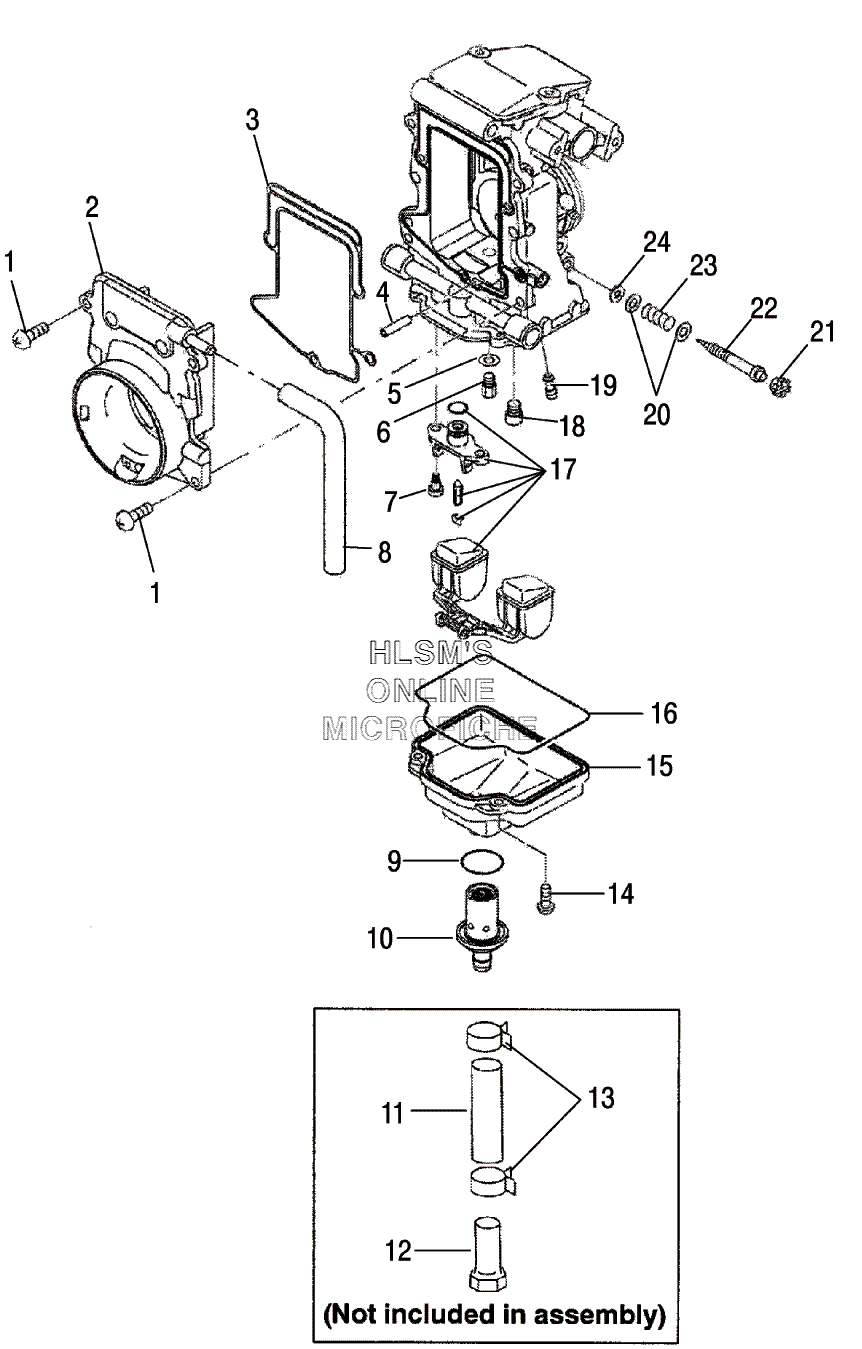

CARBURETOR ASSEMBLY для Polaris Indy 500 (S06NB4BS) - 2006 года выпуска
-
№АртикулНазвание
-
13130825 SCREWSCREW
-
23130975 FUNNEL, ASSYFUNNEL, ASSY
-
33130870 O-RING, AIR FUNNELO-RING, AIR FUNNEL
-
43131203 AIR JET PILOTAIR JET PILOT
-
53130949 WASHERWASHER
-
63130139 JET, MAIN HEXAGON HEAD #360JET, MAIN HEXAGON HEAD #360
-
73130860 SCREWSCREW
-
83131280 HOSEHOSE
-
93130863 O-RINGO-RING
-
103130862 NIPPLE, DRAIN SCREWNIPPLE, DRAIN SCREW
-
115431893 PLUG, TRAPPLUG, TRAP
-
125411708 HOSE, WATERTRAPHOSE, WATERTRAP
-
137080003 CLAMP, HOSECLAMP, HOSE
-
143130824 SCREWSCREW
-
153130858 FLOAT, BODYFLOAT, BODY
-
163130861 O-RINGO-RING
-
173130859 FLOAT ASSYFLOAT ASSY
-
183130769 JET, STARTER #VM11/22-145JET, STARTER #VM11/22-145
-
193130067 JET, PILOT #40JET, PILOT #40
-
203130986 CAPCAP
-
213130987 ADJUSTERADJUSTER
-
223130836 SPRINGSPRING
-
233130837 WASHERWASHER
-
243130835 PACKINGPACKING
