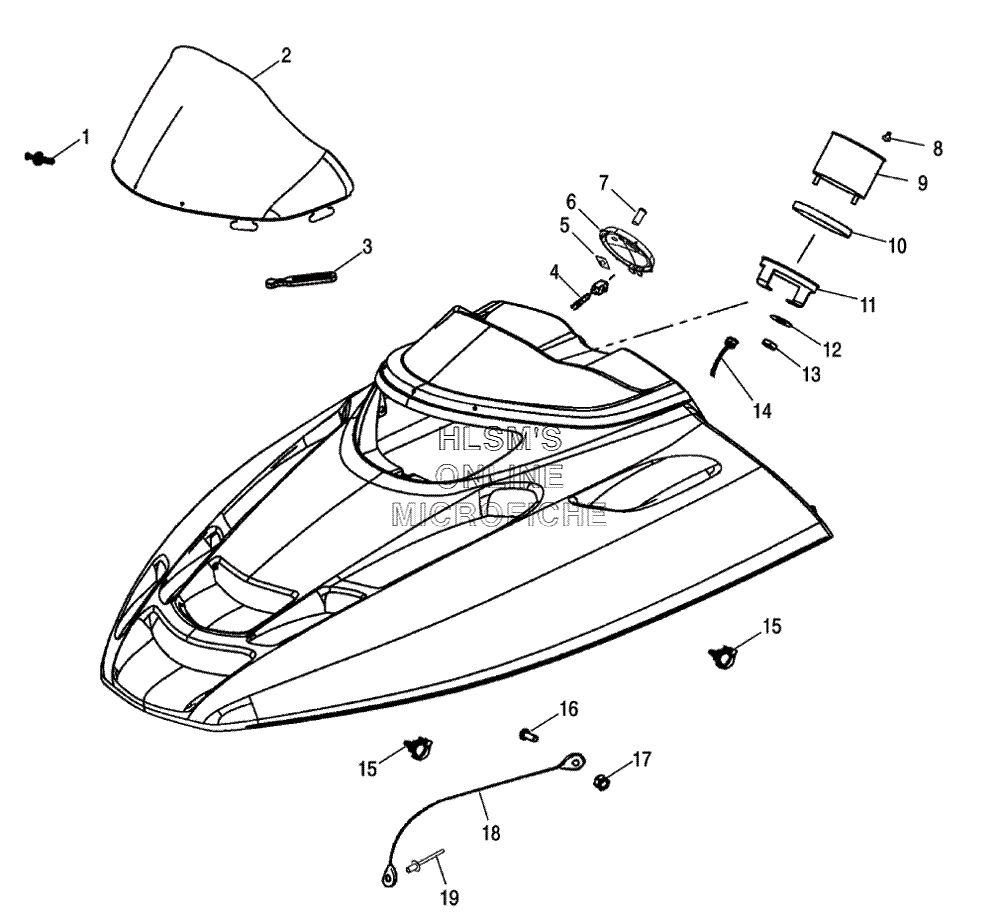

HOOD ASSEMBLY W/ WINDSHIELD для Polaris Indy 500 (S06NB4BS) - 2006 года выпуска
-
№АртикулНазвание
-
17621509 RIVET, PLASTI LOCKRIVET, PLASTI LOCK
-
25434194 WINDSHIELD 13"FLR SMOKEWINDSHIELD 13"FLR SMOKE
-
35410970 RETAINER, WINDSHIELDRETAINER, WINDSHIELD
-
42460876 HARNESS JUMPER, TEMP LIGHTHARNESS JUMPER, TEMP LIGHT
-
57670133 RETAINER 1/2" BOLT/LAMPRETAINER 1/2" BOLT/LAMP
-
65434081 PLUG DASH, 5" W/SINGLE 1/2"HOLEPLUG DASH, 5" W/SINGLE 1/2"HOLE
-
74010535 INDICATOR HIGH TEMP, 1/2" DIAINDICATOR HIGH TEMP, 1/2" DIA
-
83280186 KNOB, TRIP ODOMETER THD. (LEFT)KNOB, TRIP ODOMETER THD. (LEFT)
-
93280411 SPEEDOMETER ASSY W/OAN (5" 120MPH) (WHITE/BLACK)SPEEDOMETER ASSY W/OAN (5" 120MPH) (WHITE/BLACK)
-
94030015 BULB TAILLIGHT/TACHOMETER/SPEEDOMETERBULB TAILLIGHT/TACHOMETER/SPEEDOMETER
-
103280209 CUSHION, TACHOMETER/SPEEDOMETER RUBBERCUSHION, TACHOMETER/SPEEDOMETER RUBBER
-
113280210 BRACKET TACHOMETER/SPEEDOMETER 5"BRACKET TACHOMETER/SPEEDOMETER 5"
-
123280157 WASHER, FLATWASHER, FLAT
-
137546703 NUT, NYLOKNUT, NYLOK
-
143280385 CABLE SPEEDOMETERCABLE SPEEDOMETER
-
154010589 CLIP PLASTIC, DART NYLONCLIP PLASTIC, DART NYLON
-
167512018 SCREWSCREW
-
177541925 NUT, NYLOK 10-24 YNUT, NYLOK 10-24 Y
-
187080521 CABLE, HOOD RETAINERCABLE, HOOD RETAINER
-
197661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
