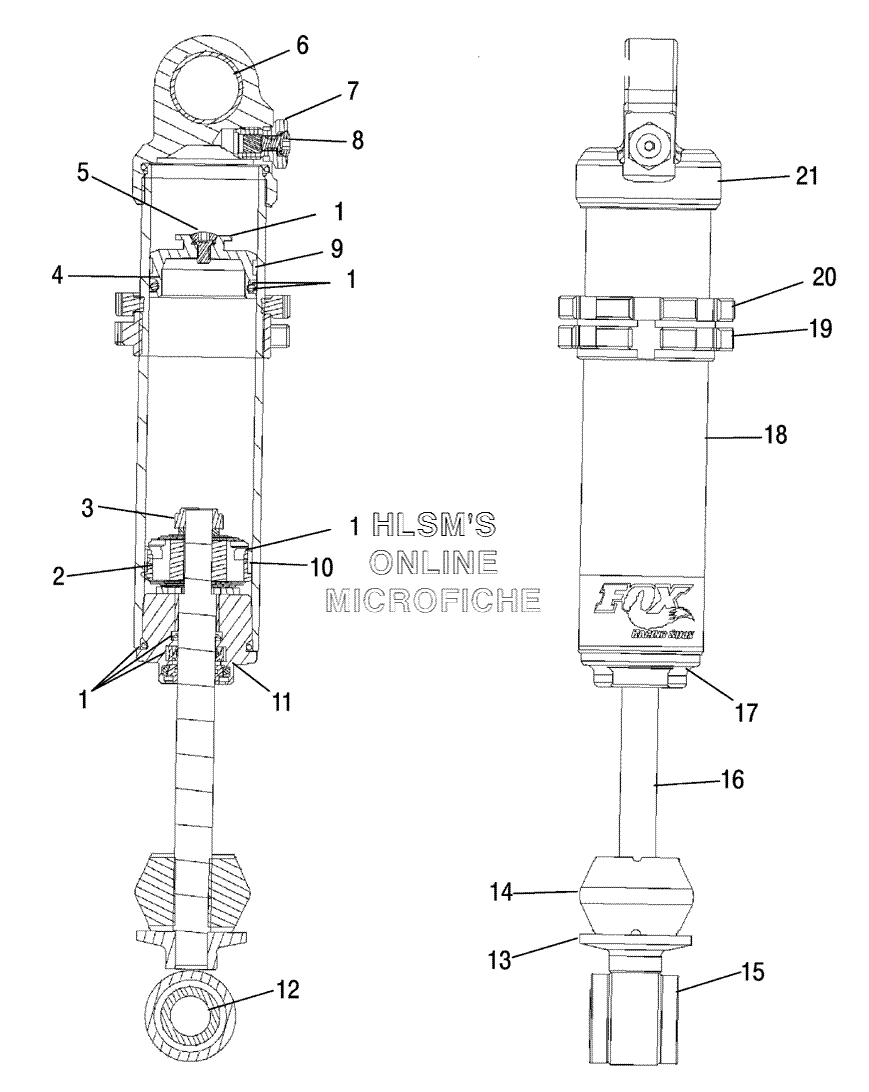

SUSPENSION - FOX SHOCK - FRONT TRACK для Polaris FST Classic (S06PD7FS) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    1500710 REBUILD KIT
    REBUILD KIT
  • 2
    1500734 PISTON (.093 BLEED)
    PISTON (.093 BLEED)
  • 3
    1500016 NUT, LOCK
    NUT, LOCK
  • 4
    1500601 IFP ASSY
    IFP ASSY
  • 5
    1500161 SCREW/O RING ASSY
    SCREW/O RING ASSY
  • 6
    1500444 BEARING RBC
    BEARING RBC
  • 7
    1500014 VALVE , AIR ASSY
    VALVE , AIR ASSY
  • 8
    1500019 SCREW
    SCREW
  • 9
    1500006 RING, PISTON, FLOATING
    RING, PISTON, FLOATING
  • 10
    1500002 DAMPER, PISTON RING
    DAMPER, PISTON RING
  • 11
    1500485 SCRAPER FIST, BRONZE
    SCRAPER FIST, BRONZE
  • 12
    1500310 SLEEVE (.56X.81X1.2)
    SLEEVE (.56X.81X1.2)
  • 13
    1500164 EYELET, BASE
    EYELET, BASE
  • 14
    1500735 BUMPER B/O
    BUMPER B/O
  • 15
    1500309 BUSHING (.35ILG) (.595TLG)
    BUSHING (.35ILG) (.595TLG)
  • 16
    1500736 SHAFT
    SHAFT
  • 17
    1500545 CYLINDER HEAD O-RING
    CYLINDER HEAD O-RING
  • 17
    1700051 CYLINDER HEAD O-RING
    CYLINDER HEAD O-RING
  • 18
    1500706 BODY, ALUMINUM
    BODY, ALUMINUM
  • 19
    1500707 RING, SPRING PRELOAD
    RING, SPRING PRELOAD
  • 20
    1500708 RING, SPRING PRELOAD
    RING, SPRING PRELOAD
  • 21
    1500709 BODY CAP ASSY
    BODY CAP ASSY
