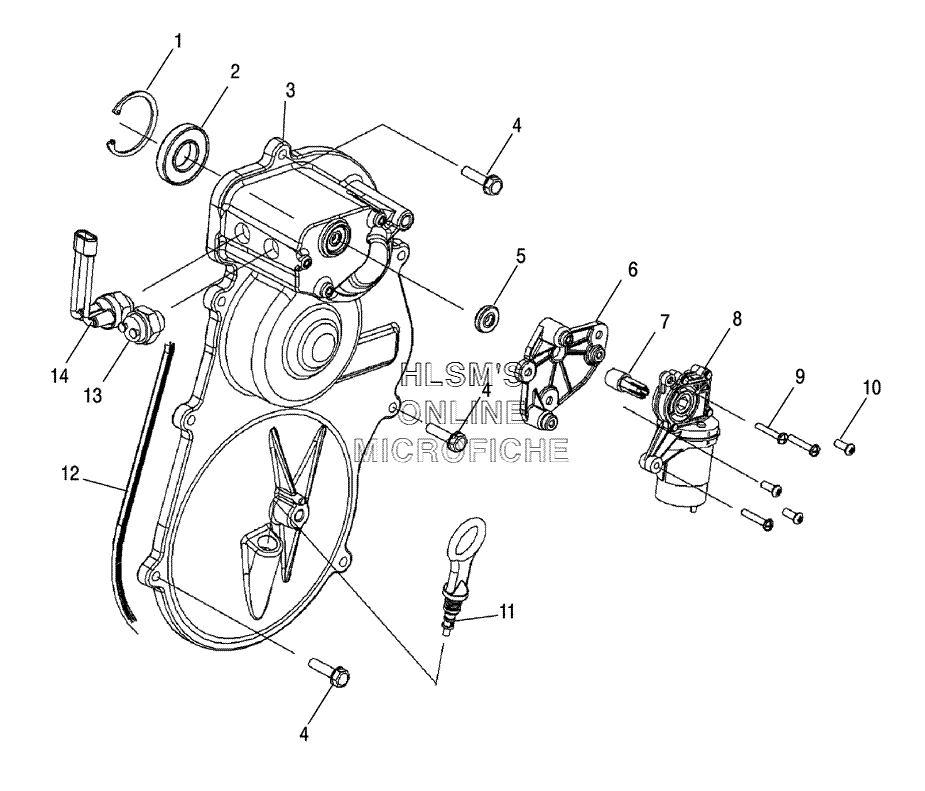

GEARCASE COVER для Polaris FST Classic (S06PD7FS) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    7710560 RING RETAINING
    RING RETAINING
  • 2
    3514476 BEARING BALL (20MM)
    BEARING BALL (20MM)
  • 3
    1332317 COVER REVERSE ASSY (INCL. 1, 2, 5, 12)
    COVER REVERSE ASSY (INCL. 1, 2, 5, 12)
  • 4
    7512225 SCREW
    SCREW
  • 5
    3610109 SEAL OIL (.375X.725X.180)
    SEAL OIL (.375X.725X.180)
  • 6
    5436152 BRACKET REV ACT MOUNT NYLON
    BRACKET REV ACT MOUNT NYLON
  • 7
    5436807 COUPLER REVERSE ACTUATOR
    COUPLER REVERSE ACTUATOR
  • 8
    1332316 ACTUATOR ASSY
    ACTUATOR ASSY
  • 9
    7518046 SCREW
    SCREW
  • 10
    7512024 SCREW
    SCREW
  • 11
    1332250 DIPSTICK WITH MAGNET EDGE ASSY
    DIPSTICK WITH MAGNET EDGE ASSY
  • 12
    5412542 GASKET, CHAINCASE (8.424)
    GASKET, CHAINCASE (8.424)
  • 13
    4011005 POSITION SWITCH INDICATOR
    POSITION SWITCH INDICATOR
  • 14
    4011340 SWITCH POSITION
    SWITCH POSITION
