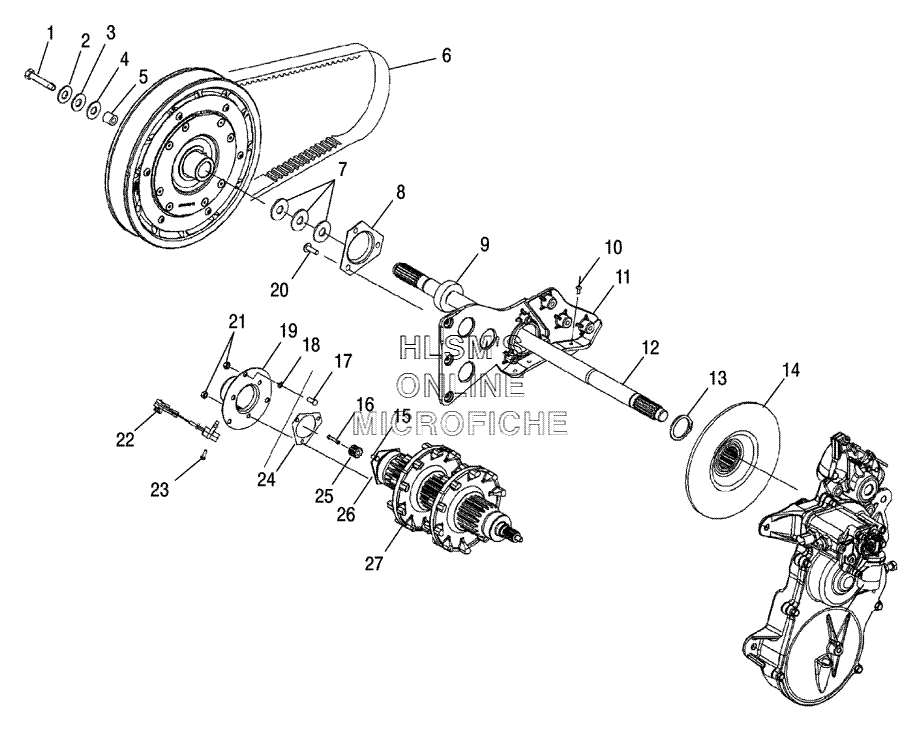

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris FST Classic (S06PD7FS) - 2006 года выпуска
-
№АртикулНазвание
-
17515369 BOLTBOLT
-
27555701 WASHER, FLATWASHER, FLAT
-
37555734 WASHER, FLATWASHER, FLAT
-
47555957 WASHERWASHER
-
55134371 SPACER INPUT SHAFT (.875 OD)SPACER INPUT SHAFT (.875 OD)
-
63211099 BELT DRIVE (11.0''CD)BELT DRIVE (11.0''CD)
-
77555864 WASHERWASHER
-
77555917 WASHERWASHER
-
77556509 BUSHINGBUSHING
-
85222751 FLANGETTEFLANGETTE
-
93514352 BEARING (1XM52XM15)BEARING (1XM52XM15)
-
107661637 RIVET, INTERLOCKRIVET, INTERLOCK
-
115134106 MOUNT JACKSHAFT BEARING MACH (LEFT)MOUNT JACKSHAFT BEARING MACH (LEFT)
-
121332453 JACKSHAFT WITH BEARING ASSY (INCL. 9)JACKSHAFT WITH BEARING ASSY (INCL. 9)
-
137710555 RING RETAININGRING RETAINING
-
142202843 SERVICE BRAKE KITSERVICE BRAKE KIT
-
151014299 FLANGETTE WITH SCREWS ASSYFLANGETTE WITH SCREWS ASSY
-
167516733 SCREWSCREW
-
177518049 BOLT CARRIAGEBOLT CARRIAGE
-
187547030 PALNUTPALNUT
-
195246960 HOUSING DRIVE PICKUPHOUSING DRIVE PICKUP
-
207518444 SCREWSCREW
-
217542324 NUT, NYLOKNUT, NYLOK
-
222410376 SENSOR SPEEDOMETER PICKUPSENSOR SPEEDOMETER PICKUP
-
237512232 BOLTBOLT
-
245811095 GASKET, JACKSHAFT (BLACK)GASKET, JACKSHAFT (BLACK)
-
255240013 WHEEL PICKUP, SPEEDOMETER (9 TEETH)WHEEL PICKUP, SPEEDOMETER (9 TEETH)
-
263514448 BEARING, SPH OD LUBE (25MM)BEARING, SPH OD LUBE (25MM)
-
271590412 DRIVESHAFT TUBULAR REINFORCEMENT ASSY (9 TEETH)DRIVESHAFT TUBULAR REINFORCEMENT ASSY (9 TEETH)
