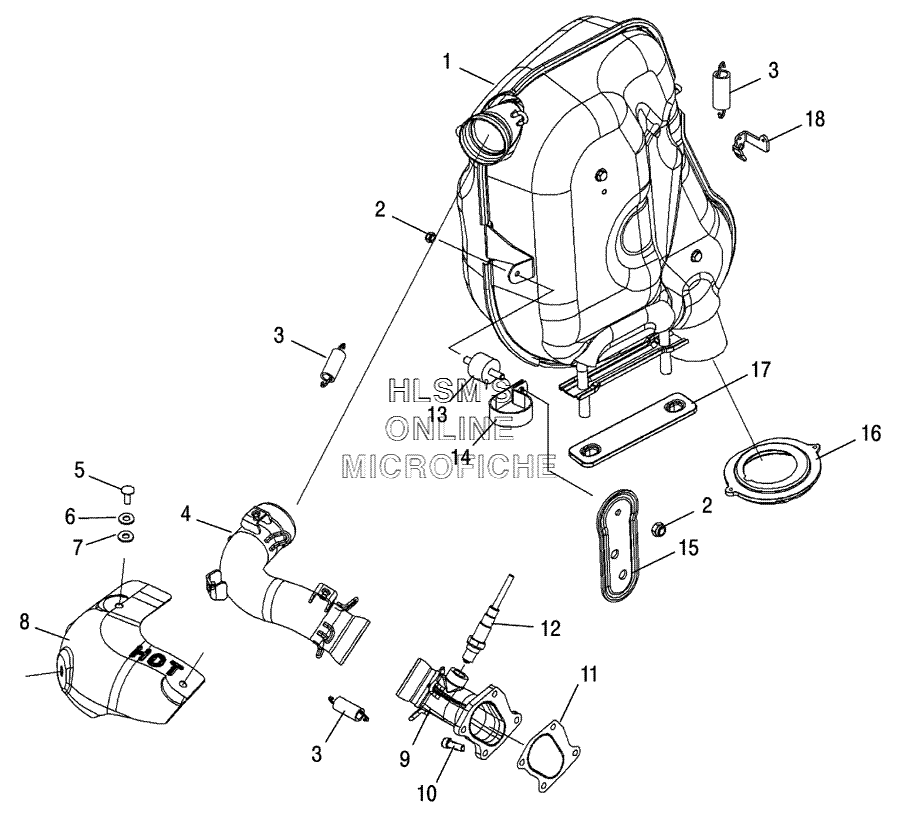

EXHAUST SYSTEM для Polaris FST Classic (S06PD7FS) - 2006 года выпуска
-
№АртикулНазвание
-
11261608 RESONATOR ASSY.RESONATOR ASSY.
-
27542153 NUT, NYLOK, FLANGEDNUT, NYLOK, FLANGED
-
37042332 SPRINGSPRING
-
41261365 PIPE EXHAUST, HOPIPE EXHAUST, HO
-
57518583 BOLT, HEXAGONBOLT, HEXAGON
-
67552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
77558301 WASHER, FLATWASHER, FLAT
-
85249493 SHIELD HEAT, HEAD PIPESHIELD HEAT, HEAD PIPE
-
91261444 MANIFOLD, HOMANIFOLD, HO
-
107518461 SCREWSCREW
-
115812640 GASKET EXHAUSTGASKET EXHAUST
-
124011040 SENSOR OXYGEN, WIDE BANDSENSOR OXYGEN, WIDE BAND
-
133021398 MOUNT RUBBER, ISOLATORMOUNT RUBBER, ISOLATOR
-
147080807 CLAMP HOSECLAMP HOSE
-
155249148 BRACKET RESONATOR/CHASSISBRACKET RESONATOR/CHASSIS
-
165412736 BOOT OUTLET, RESONATORBOOT OUTLET, RESONATOR
-
175412425 GROMMET RESONATOR, SUPPORTGROMMET RESONATOR, SUPPORT
-
185249149 BRACKET RESONATOR/CHAINCASEBRACKET RESONATOR/CHAINCASE
