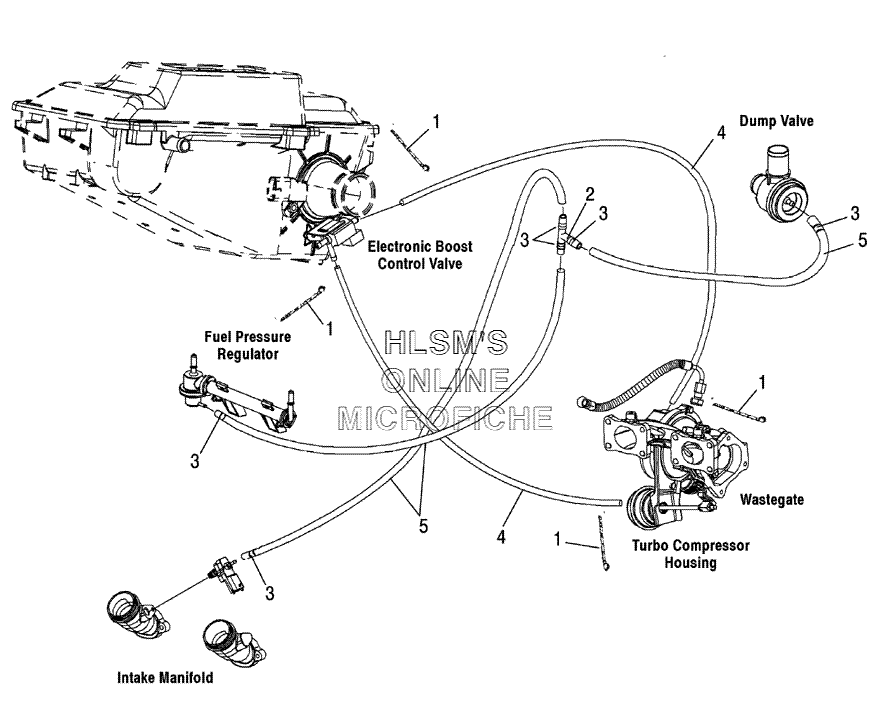

REFERENCE HOSES для Polaris FST Classic (S06PD7FS) - 2006 года выпуска
-
№АртикулНазвание
-
17080138 CABLE TIECABLE TIE
-
27052398 FITTING T, NYLONFITTING T, NYLON
-
37080603 CLAMPCLAMP
-
48450113-153 HOSE 3/16 EPDM (153 CM)HOSE 3/16 EPDM (153 CM)
-
58450112-153 HOSE 5/32 EPDM (153 CM)HOSE 5/32 EPDM (153 CM)
Все узлы модели:
- AIR INTAKE SYSTEM
- ALTERNATOR
- BATTERY BOX
- BRAKE ASSEMBLY
- BUMPER AND SIDE PANELS
- CAM CHAIN W/ TENSIONERS
- CHASSIS - FRONT
- CHASSIS - REAR
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE
- COOLANT - INTERNAL
- COOLANT RAIL
- COOLING SYSTEM
- CRANKCASE AND CYLINDER ASSEMBLY
- CRANKSHAFT AND BALANCE SHAFT
- DECALS
- DRIVE GEAR W/ PULLEY
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ECU MOUNTING
- ELECTRICAL - SENSORS AND SWITCHES
- ELECTRICAL - WIRE HARNESS
- ENGINE MOUNTING - LEFT
- ENGINE MOUNTING - RIGHT AND FRONT
- EXHAUST SYSTEM
- FENDERS W/ SIDE PANELS
- FUEL RAIL
- FUEL TANK
- GEARCASE ASSEMBLY
- GEARCASE COVER
- GEARCASE MOUNTING
- HANDLEBAR ASSEMBLY W/ CONTROLS
- HEADLIGHT ASSEMBLY
- HOOD - FOAM/FOIL/SCREENS
- HOOD ASSEMBLY W/ WINDSHIELD
- IGNITION COILS
- OIL COOLING SYSTEM
- OIL FILTER
- OIL PUMP
- OIL PUMP ASSEMBLY
- PISTON W/ BEARING
- RAIL ASSEMBLY
- • REFERENCE HOSES
- SEAT W/ TAILLIGHT
- SKI ASSEMBLY
- STARTER MOTOR
- STEERING ASSEMBLY
- STEERING HOOP
- STEERING LINKAGE
- STEERING POST ASSEMBLY
- SUSPENSION - FOX SHOCK - FRONT TRACK
- SUSPENSION - FOX SHOCK - REAR TRACK
- SUSPENSION - FRONT
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - REAR
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SWAY BAR
- THROTTLE BODY W/ INTAKE MANIFOLD
- TOOL KIT
- TURBO
- VALVE COVER
- VALVE TRAIN
- VALVES
- WATER PUMP
- WINDSHIELD W/ MIRRORS
- WIRE HARNESS - MAIN
