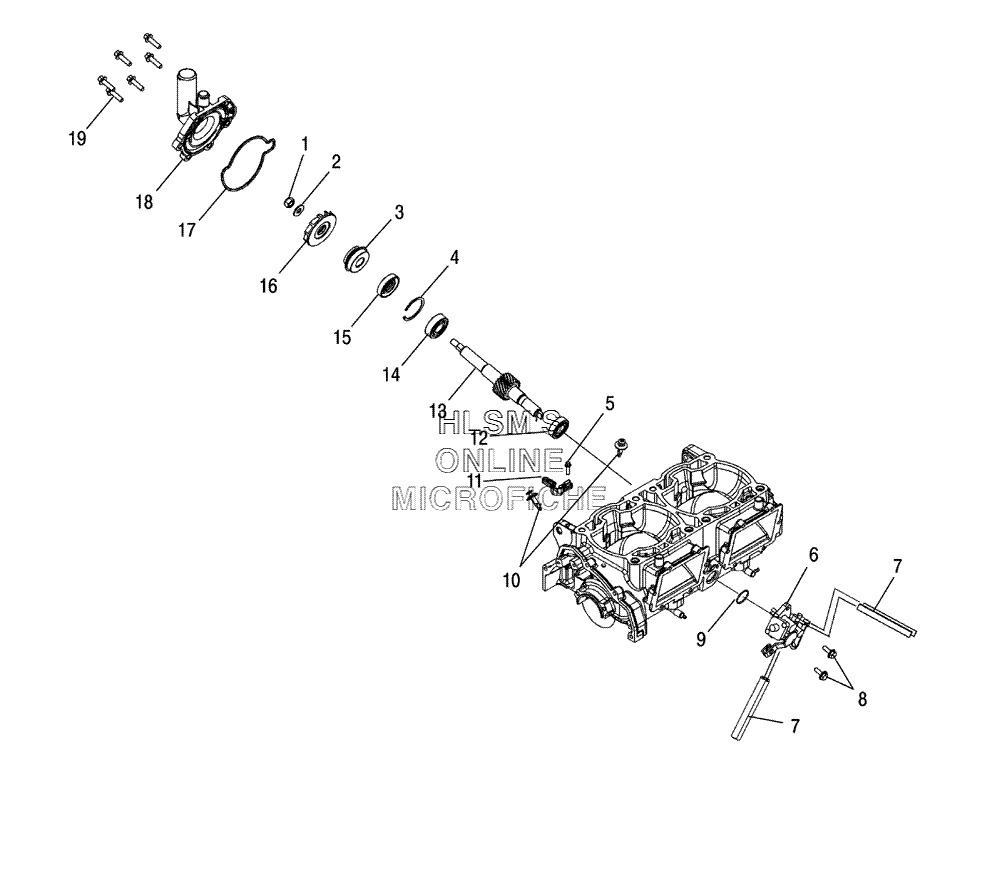

WATER PUMP/OIL PUMP для Polaris 700 Classic (S06PD7HS) - 2006 года выпуска`
-
№АртикулНазвание
-
17546804 NUT, HEXAGON, NYLOKNUT, HEXAGON, NYLOK
-
27555874 WASHER, FLATWASHER, FLAT
-
33610107 SEAL WATERPUMP (15X36 UNITIZED)SEAL WATERPUMP (15X36 UNITIZED)
-
47710527 RING RETAININGRING RETAINING
-
57517398 SCREWSCREW
-
62520463 OIL PUMP ASSY (866 BASE)OIL PUMP ASSY (866 BASE)
-
78450061-600 LINE, FUEL (3MMX7MM)LINE, FUEL (3MMX7MM)
-
87517277 SCREWSCREW
-
95411293 O RINGO RING
-
107621509 RIVET, PLASTI LOCKRIVET, PLASTI LOCK
-
115436187 RETAINER WIRE, PLASTIC CLIPRETAINER WIRE, PLASTIC CLIP
-
123514474 BEARING BALL (15X32X9)BEARING BALL (15X32X9)
-
132203120 DRIVE SHAFT WITH BEARINGS KIT (INCL. 3, 4, 12 15)DRIVE SHAFT WITH BEARINGS KIT (INCL. 3, 4, 12 15)
-
143514407 BEARING BALLBEARING BALL
-
155412217 SEAL OILSEAL OIL
-
165435314 IMPELLER WATERPUMPIMPELLER WATERPUMP
-
175412367 SEAL WATERPUMPSEAL WATERPUMP
-
181202459 WATERPUMP COVER ASSYWATERPUMP COVER ASSY
-
197518385 SCREW, HEXAGONSCREW, HEXAGON
