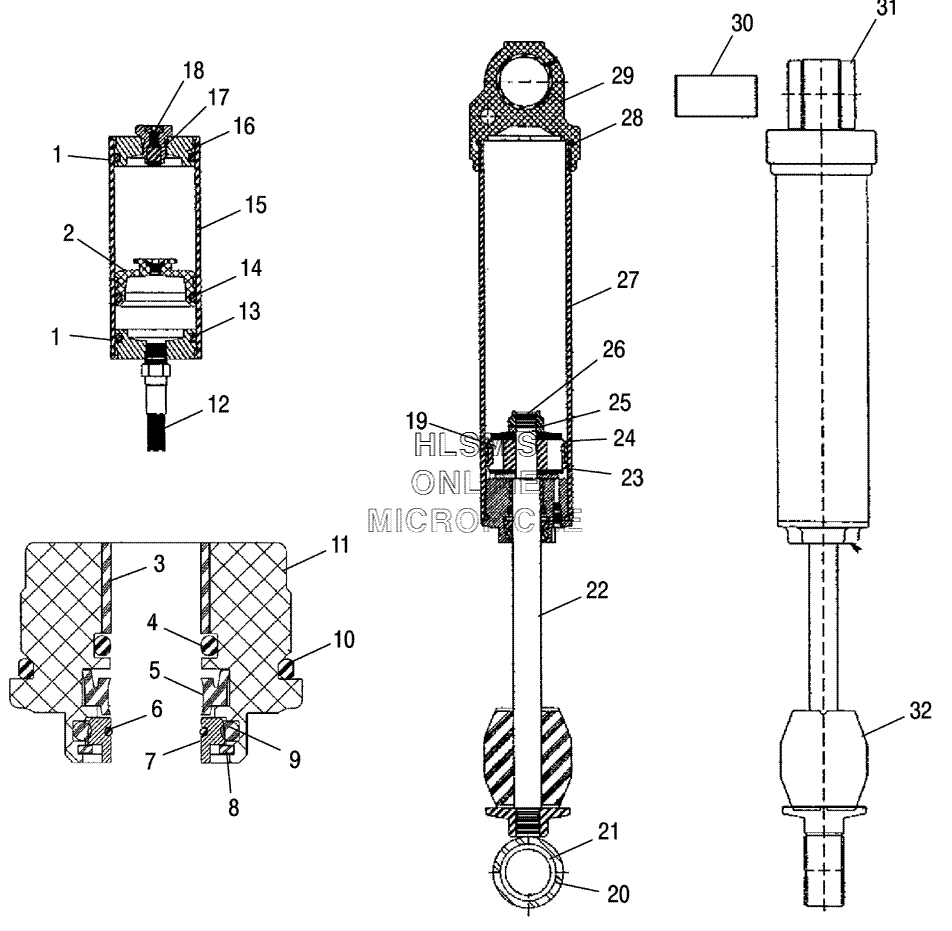

SUSPENSION - REAR TRACK SHOCK для Polaris 700 Classic (S06PD7HS) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    1500450 SEAL O-RING
    SEAL O-RING
  • 2
    1500601 ASSY IFP
    ASSY IFP
  • 3
    1500488 BEARING (.5 IDX.5 TLG)
    BEARING (.5 IDX.5 TLG)
  • 4
    1500021 O RING (INNER)
    O RING (INNER)
  • 5
    1500266 U CUP 4300 URETH
    U CUP 4300 URETH
  • 6
    1500484 O RING (14MM IDX1 MM)
    O RING (14MM IDX1 MM)
  • 7
    1500485 SCRAPER FIST (BRONZE)
    SCRAPER FIST (BRONZE)
  • 8
    1500486 RING SNAP, INTERNAL
    RING SNAP, INTERNAL
  • 9
    1500483 O RING (.103X.73ID)
    O RING (.103X.73ID)
  • 10
    1500020 O RING (.103W 1.299ID)
    O RING (.103W 1.299ID)
  • 11
    1500545 CAP (INCL. 3 10)
    CAP (INCL. 3 10)
  • 12
    1500560 HOSE
    HOSE
  • 13
    1500118 CAP
    CAP
  • 14
    1500003 O RING, ENDCAP
    O RING, ENDCAP
  • 15
    1500705 BODY RES., ALUMINUM
    BODY RES., ALUMINUM
  • 16
    1500114 O-RING
    O-RING
  • 17
    1500023 O RING (OUTER)
    O RING (OUTER)
  • 18
    1500014 VALVE ASSY, AIR
    VALVE ASSY, AIR
  • 19
    1500740 PISTON (.055 BLEED)
    PISTON (.055 BLEED)
  • 20
    1500564 EYELET
    EYELET
  • 21
    1500444 BEARING RBC
    BEARING RBC
  • 22
    1500562 SHAFT
    SHAFT
  • 23
    1500017 PLATE (TOP/OUTER)
    PLATE (TOP/OUTER)
  • 24
    1500002 DAMPER, PISTON RING
    DAMPER, PISTON RING
  • 25
    1500015 PLATE, BACKUP
    PLATE, BACKUP
  • 26
    1500016 NUT, LOCK
    NUT, LOCK
  • 27
    1500741 BODY, SHOCK
    BODY, SHOCK
  • 28
    1500108 O RING (.103W 1.549ID)
    O RING (.103W 1.549ID)
  • 29
    1500704 BODY CAP ASSY
    BODY CAP ASSY
  • 30
    1500310 SLEEVE (.56X.81X1.2)
    SLEEVE (.56X.81X1.2)
  • 31
    1500309 BUSHING (.35ILG) (.595TLG)
    BUSHING (.35ILG) (.595TLG)
  • 32
    5410855 BUMPER, JOUNCE
    BUMPER, JOUNCE
  • -
    1500703 REBUILD KIT
    REBUILD KIT
