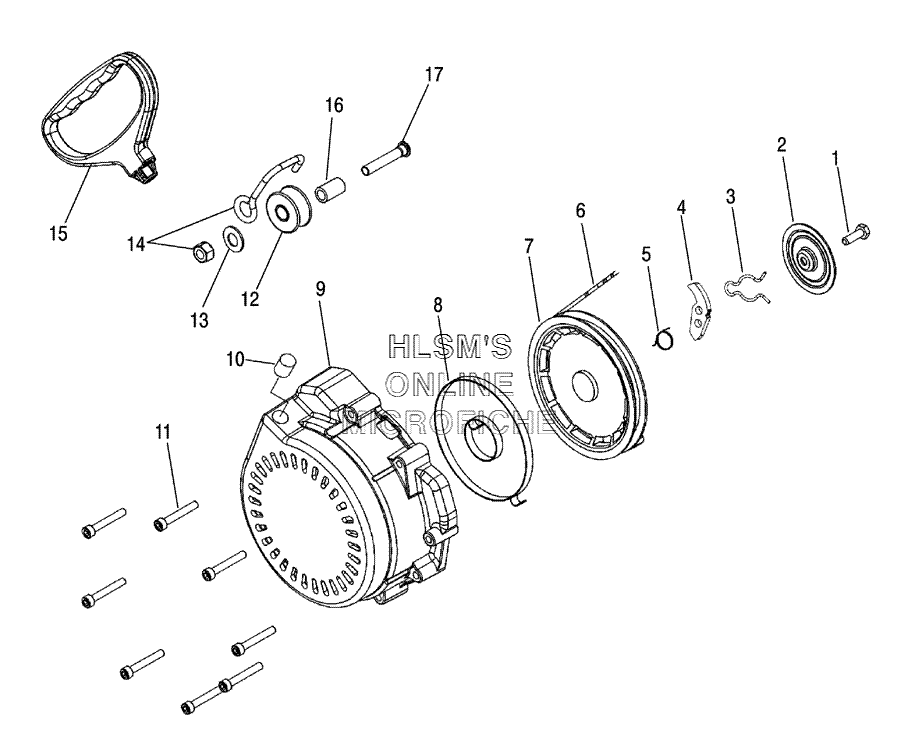

STARTER - RECOIL ASSEMBLY для Polaris 700 Classic (S06PD7HS) - 2006 года выпуска
-
№АртикулНазвание
-
17517984 SCREWSCREW
-
23021650 PLATE, FRICTIONPLATE, FRICTION
-
33021649 SPRING, FRICTIONSPRING, FRICTION
-
45246108 RATCHET PAWL ELEC REVRATCHET PAWL ELEC REV
-
53040166 SPRING, RETRUNSPRING, RETRUN
-
63040169 ROPE, STARTERROPE, STARTER
-
75434936 REEL RECOILREEL RECOIL
-
83021648 SPRING, SPIRALSPRING, SPIRAL
-
95631420 RECOIL, CASERECOIL, CASE
-
103040171 GUIDE, ROPEGUIDE, ROPE
-
117510005 SCREWSCREW
-
125435390 ROLLER RECOILROLLER RECOIL
-
137556188 WASHER FLANGEWASHER FLANGE
-
147542343 NUT, FLANGENUT, FLANGE
-
145334646 GUIDE ROPEGUIDE ROPE
-
155435154-070 HANDLE RECOIL (BLACK)HANDLE RECOIL (BLACK)
-
165134760 BUSHING ROLLERBUSHING ROLLER
-
177518419 SCREW SHOULDERSCREW SHOULDER
-
-1202453 RECOIL ASSYRECOIL ASSY
