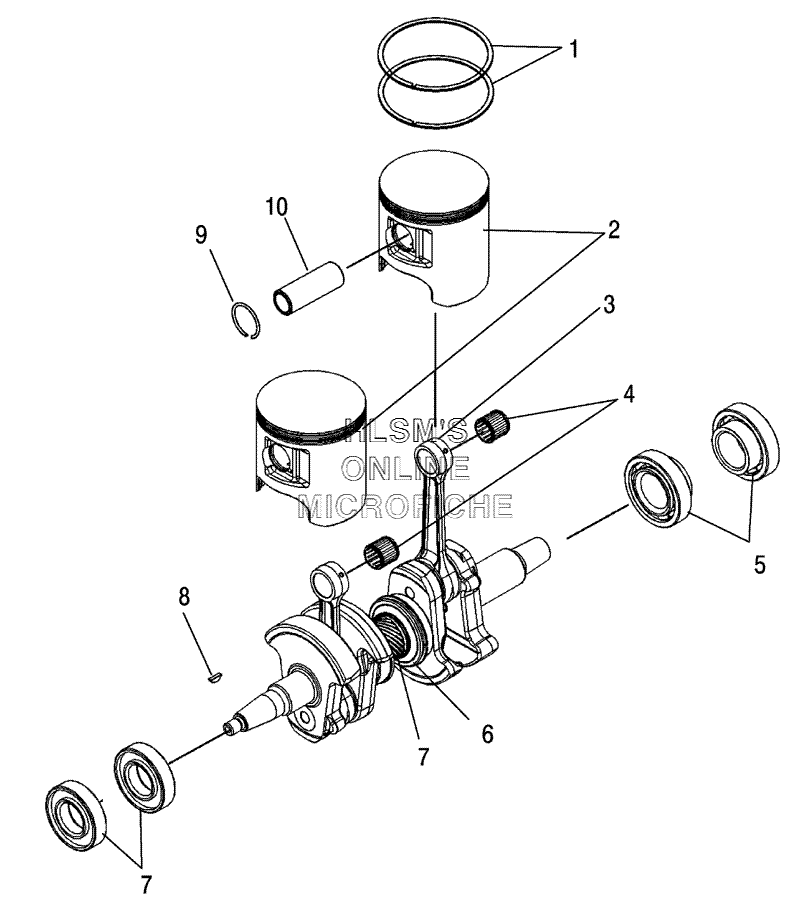

PISTON AND CRANKSHAFT для Polaris 700 Classic (S06PD7HS) - 2006 года выпуска
-
№АртикулНазвание
-
12203099 PISTON RINGS KITPISTON RINGS KIT
-
22203121 PISTON KIT (INCL. 1, 9, 10)PISTON KIT (INCL. 1, 9, 10)
-
32202952 CONNECTING ROD KIT (INCL. ROD, PIN, BEARING, WASHERS)CONNECTING ROD KIT (INCL. ROD, PIN, BEARING, WASHERS)
-
43514500 BEARING, BALLBEARING, BALL
-
53514444 BEARING BALLBEARING BALL
-
63514318 BEARING, BALLBEARING, BALL
-
73514499 BEARING BALL, DBLROWBEARING BALL, DBLROW
-
87721117 KEY, WOODRUFFKEY, WOODRUFF
-
93021179 CIRCLIP, PISTONCIRCLIP, PISTON
-
-2203112 CRANKSHAFT KIT(INCL. 5 7)CRANKSHAFT KIT(INCL. 5 7)
