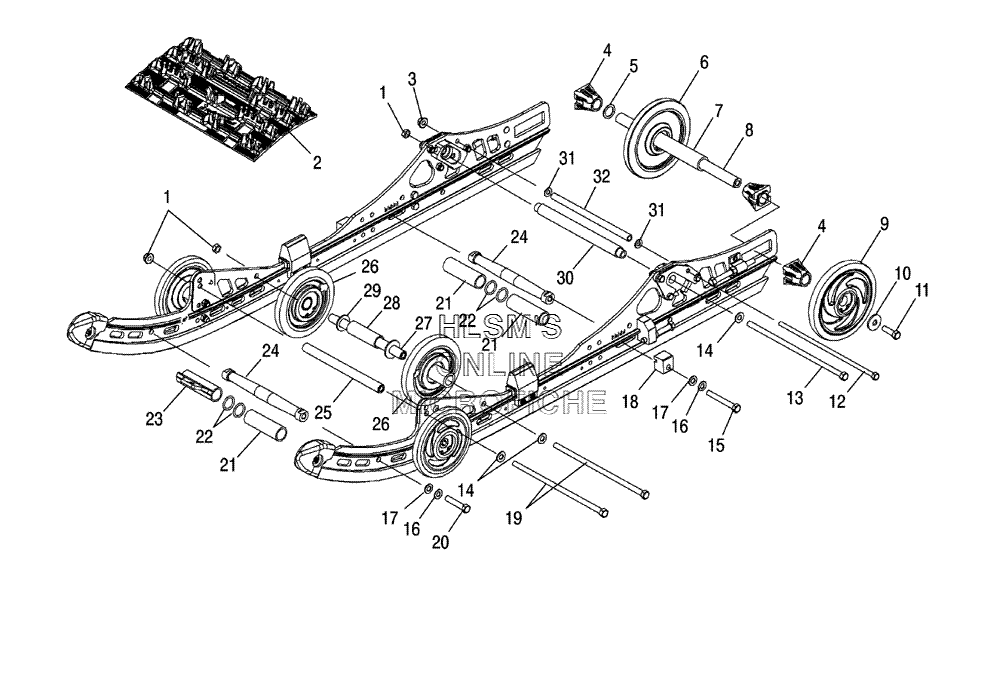

SUSPENSION - REAR - M10 для Polaris 700 Classic (S06PD7HS) - 2006 года выпуска
-
№АртикулНазвание
-
17547263 NUT NYLOKNUT NYLOK
-
25412616 TRACK, RIP SAW (15X128'') ( 1.25,)TRACK, RIP SAW (15X128'') ( 1.25,)
-
25222840 CLIP, GUIDECLIP, GUIDE
-
37547064 NUT, NYLOKNUT, NYLOK
-
45432535 SPACER, IDLERSPACER, IDLER
-
57555918 BUSHINGBUSHING
-
61594087 WHEEL, PLAIN ASSY (6.38 O.D.)WHEEL, PLAIN ASSY (6.38 O.D.)
-
75333285 SPACER, IDLER, LONGSPACER, IDLER, LONG
-
85020744 SHAFT, IDLERSHAFT, IDLER
-
91590303-244 WHEEL IDLER ASSY (BROWN SILVER METALLIC)WHEEL IDLER ASSY (BROWN SILVER METALLIC)
-
97710444 RING, RETAININGRING, RETAINING
-
93514384 BEARINGBEARING
-
107556130 WASHERWASHER
-
117517731 BOLTBOLT
-
127517896 SCREW, HEXAGON HEAD CAPSCREW, HEXAGON HEAD CAP
-
137517821 SCREW, HEXAGON HEAD CAPSCREW, HEXAGON HEAD CAP
-
147555806 WASHER, FLATWASHER, FLAT
-
157518478 SCREW, HEXAGON HEAD CAPSCREW, HEXAGON HEAD CAP
-
167552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
177556042 WASHER, FLATWASHER, FLAT
-
185135040 BLOCK SHOCK PIVOT ADJUSTBLOCK SHOCK PIVOT ADJUST
-
197517921 SCREW, HEXAGONSCREW, HEXAGON
-
207517857 SCREW, HEXAGONSCREW, HEXAGON
-
215333902 SPACER SHOCK CENTERINGSPACER SHOCK CENTERING
-
225411965 O RING (.875ID X .125 DIA)O RING (.875ID X .125 DIA)
-
235132586 MOUNT LIMITER STRAP, ATTACH (LOWER)MOUNT LIMITER STRAP, ATTACH (LOWER)
-
245132793 SHAFT TAPE (RED)SHAFT TAPE (RED)
-
255132579 SHAFT, PIVOT (LOWER)SHAFT, PIVOT (LOWER)
-
261542211 WHEEL/SPACER ASSY (5.62 BOGIE)WHEEL/SPACER ASSY (5.62 BOGIE)
-
275132490 SHAFT (.390X.750X.8665)SHAFT (.390X.750X.8665)
-
285330394 SPACER BOGIE (INNER)SPACER BOGIE (INNER)
-
297556301 BUSHINGBUSHING
-
305133093 SHAFT (LOWER)SHAFT (LOWER)
-
317558402 WASHER, FLATWASHER, FLAT
-
325333477-067 TUBE (.334X.50X8.515) (BLACK)TUBE (.334X.50X8.515) (BLACK)
