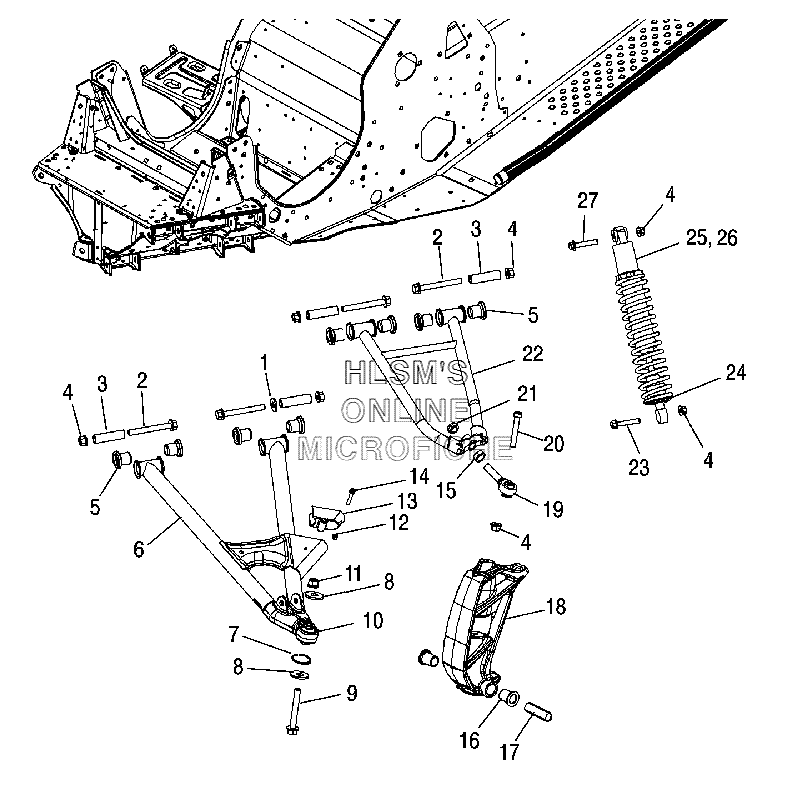

SUSPENSION - FRONT для Polaris 600 HO RMK 144'' (S06PK6FS) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    7555893 WASHER, FLAT
    WASHER, FLAT
  • 2
    7518384 SCREW
    SCREW
  • 3
    5133860 SHAFT-PIVOT
    SHAFT-PIVOT
  • 4
    7547180 NUT-FLANGED
    NUT-FLANGED
  • 5
    5434932 BUSHING-PIVOT
    BUSHING-PIVOT
  • 6
    2203025-293 LCA KIT, RMK (LEFT) (INDY RED) (INCL. 3-7, 12-14)
    LCA KIT, RMK (LEFT) (INDY RED) (INCL. 3-7, 12-14)
  • 6
    2203026-293 LCA KIT, RMK (RIGHT) (INDY RED) (INCL. 3-7, 12-14)
    LCA KIT, RMK (RIGHT) (INDY RED) (INCL. 3-7, 12-14)
  • 6
    2203025-385 LCA KIT, RMK (LEFT) (CLOUD SLIVER) (INCL. 3-7, 12-14)
    LCA KIT, RMK (LEFT) (CLOUD SLIVER) (INCL. 3-7, 12-14)
  • 6
    2203026-385 LCA KIT, RMK (RIGHT) (CLOUD SLIVER) (INCL. 3-7, 12-14)
    LCA KIT, RMK (RIGHT) (CLOUD SLIVER) (INCL. 3-7, 12-14)
  • 7
    7710539 RING-RETAINING
    RING-RETAINING
  • 8
    7556153 WASHER
    WASHER
  • 9
    7518478 SCREW
    SCREW
  • 10
    2203107 BEARING KIT, SPHERICAL (LOWER) (INCL. 7)
    BEARING KIT, SPHERICAL (LOWER) (INCL. 7)
  • 11
    7547344 NUT
    NUT
  • 12
    7541925 NUT, NYLOK
    NUT, NYLOK
  • 13
    5435522 SLIDE-SWAY BAR
    SLIDE-SWAY BAR
  • 14
    7510504 SCREW
    SCREW
  • 15
    7542711 NUT-JAM
    NUT-JAM
  • 16
    5133983 BUSHING-SKI PIVOT
    BUSHING-SKI PIVOT
  • 17
    5010158 BUSHING, PIVOT
    BUSHING, PIVOT
  • 18
    1822797 SPINDLE ASSY. (LEFT) (INCL. 16)
    SPINDLE ASSY. (LEFT) (INCL. 16)
  • 18
    1822798 SPINDLE ASSY. (RIGHT) (INCL. 16)
    SPINDLE ASSY. (RIGHT) (INCL. 16)
  • 19
    7061124 ROD END-1/2, 30Ш
    ROD END-1/2, 30Ш
  • 20
    7518428 SCREW
    SCREW
  • 21
    7547104 NUT
    NUT
  • 22
    2203023-293 UCA KIT, RMK (LEFT) (INDY RED) (INCL. 3, 5, 12, 15, 19, 21)
    UCA KIT, RMK (LEFT) (INDY RED) (INCL. 3, 5, 12, 15, 19, 21)
  • 22
    2203024-293 UCA KIT, RMK (RIGHT) (INDY RED) (INCL. 3, 5, 12, 15, 19, 21)
    UCA KIT, RMK (RIGHT) (INDY RED) (INCL. 3, 5, 12, 15, 19, 21)
  • 22
    2203023-385 UCA KIT, RMK (LEFT) (CLOUD SLIVER) (INCL. 3, 5, 12, 15, 19, 21)
    UCA KIT, RMK (LEFT) (CLOUD SLIVER) (INCL. 3, 5, 12, 15, 19, 21)
  • 22
    2203024-385 UCA KIT, RMK (RIGHT) (CLOUD SLIVER) (INCL. 3, 5, 12, 15, 19, 21)
    UCA KIT, RMK (RIGHT) (CLOUD SLIVER) (INCL. 3, 5, 12, 15, 19, 21)
  • 23
    7518278 SCREW
    SCREW
  • 24
    5630580 RETAINER, SPRING
    RETAINER, SPRING
  • 25
    7043049 SHOCK-IFS, TWIN TUBE
    SHOCK-IFS, TWIN TUBE
  • 25
    7041551-067 SPRING-COMP (BLACK)
    SPRING-COMP (BLACK)
  • 25
    7041551-133 SPRING
    SPRING
  • 25
    7041551-239 SPRING-COMP (REAR)
    SPRING-COMP (REAR)
  • 25
    5431734 RING, SPRING PRELOAD ADJ.
    RING, SPRING PRELOAD ADJ.
  • 26
    7043090 SHOCK-IFS
    SHOCK-IFS
  • 26
    7041576-067 SPRING-COMP, IFS
    SPRING-COMP, IFS
  • 27
    7518554 SCREW
    SCREW
