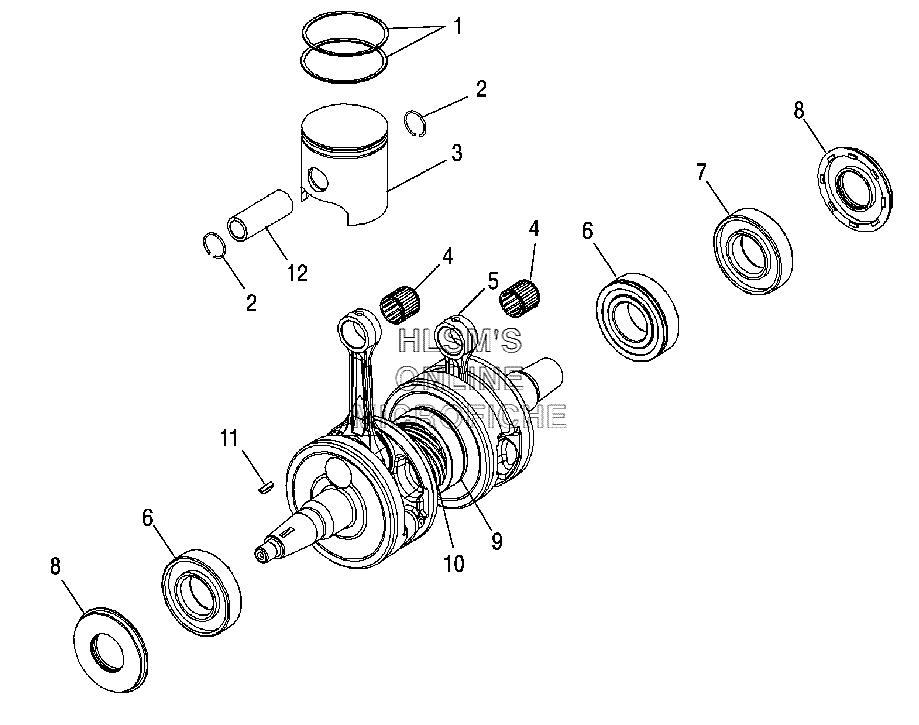

PISTON AND CRANKSHAFT для Polaris 600 HO RMK 144'' (S06PK6FS) - 2006 года выпуска
-
№АртикулНазвание
-
12201256 PISTON RINGS KITPISTON RINGS KIT
-
23022950 CIRCLIP, PISTON (20MM.)CIRCLIP, PISTON (20MM.)
-
32202258 PISTON KIT (INCL. 1, 2, 12)PISTON KIT (INCL. 1, 2, 12)
-
43514365 BEARINGBEARING
-
52201132 CONNECT ROD ASSYCONNECT ROD ASSY
-
63585503 BEARING, BALLBEARING, BALL
-
73514310 BEARING, BALL, EXTRACEBEARING, BALL, EXTRACE
-
85412091 SEAL-FLANGE, TRANSCOMSEAL-FLANGE, TRANSCOM
-
93514363 BEARING-BALLBEARING-BALL
-
105133689 GEAR-PUMP DRIVE (10 START)GEAR-PUMP DRIVE (10 START)
-
117721117 KEY, WOODRUFFKEY, WOODRUFF
-
-2202520 CRANKSHAFT KIT (INCL. 7-10)CRANKSHAFT KIT (INCL. 7-10)
