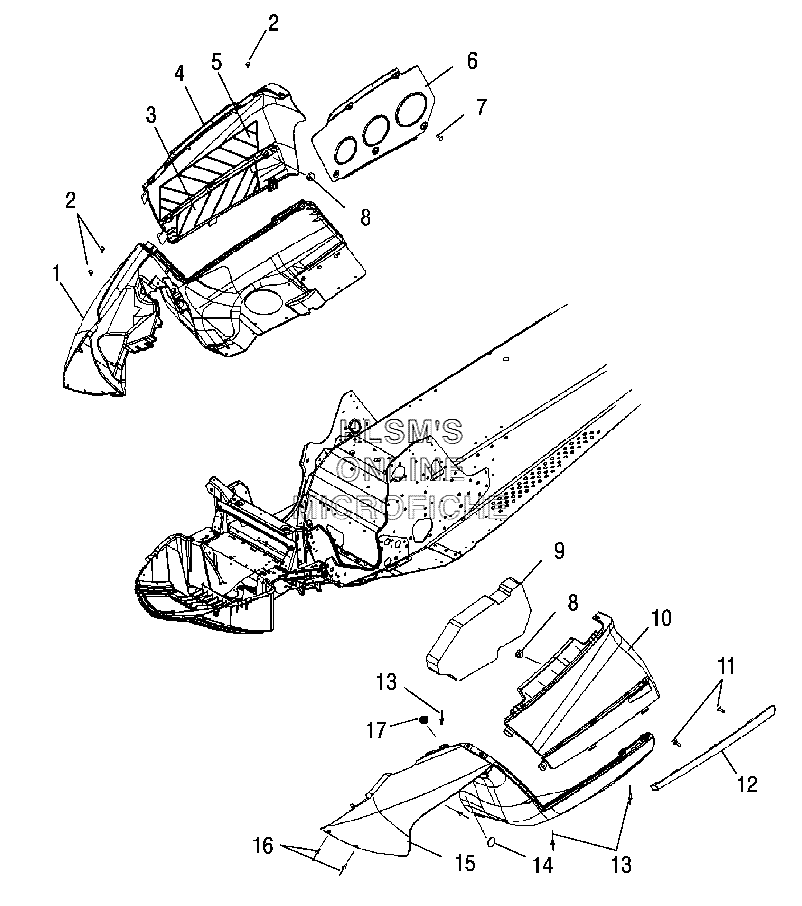

FENDERS W/ SIDE PANELS для Polaris 600 HO RMK 144'' (S06PK6FS) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    2633254-070 FENDER ASSY (RIGHT/BLACK) (INCL. FOAM AND FOIL)
    FENDER ASSY (RIGHT/BLACK) (INCL. FOAM AND FOIL)
  • 1
    2633254-513 FENDER ASSY (RIGHT) (INDY) (INCL. FOAM AND FOIL))
    FENDER ASSY (RIGHT) (INDY) (INCL. FOAM AND FOIL))
  • 1
    5521697-350 SEAL-BULB
    SEAL-BULB
  • 2
    5412465 BUMPER-GROMMET (RIGHT)
    BUMPER-GROMMET (RIGHT)
  • 3
    5812942 FOIL-SIDE PANEL
    FOIL-SIDE PANEL
  • 4
    2633255-070 SIDE PANEL ASSY (RIGHT/BLACK) (INCL. 3, 5)
    SIDE PANEL ASSY (RIGHT/BLACK) (INCL. 3, 5)
  • 4
    2633255-513 SIDE PANEL ASSY (RIGHT/BLUE) (INCL. 3, 5)
    SIDE PANEL ASSY (RIGHT/BLUE) (INCL. 3, 5)
  • 4
    5521697-350 SEAL-BULB
    SEAL-BULB
  • 5
    5812970 FOAM/FIBER-HI TEMP
    FOAM/FIBER-HI TEMP
  • 6
    5248473 SHIELD-HEAT (RIGHT)
    SHIELD-HEAT (RIGHT)
  • 7
    7517441 SCREW
    SCREW
  • 8
    5410414 BUMPER, RUBBER
    BUMPER, RUBBER
  • 9
    5812715 FOAM-SIDE PANEL (LEFT)
    FOAM-SIDE PANEL (LEFT)
  • 10
    2633002-070 SIDE PANEL ASSY. (LEFT/BLACK)
    SIDE PANEL ASSY. (LEFT/BLACK)
  • 10
    2633002-513 SIDE PANEL ASSY. (LEFT/BLUE)
    SIDE PANEL ASSY. (LEFT/BLUE)
  • 10
    5521697-350 SEAL-BULB
    SEAL-BULB
  • 11
    7518238 SCREW
    SCREW
  • 12
    5435787-070 BUMPER (SIDE) (LEFT/BLACK)
    BUMPER (SIDE) (LEFT/BLACK)
  • 12
    5435788-070 BUMPER (SIDE) (RIGHT/BLACK)
    BUMPER (SIDE) (RIGHT/BLACK)
  • 13
    7621467 RIVET, BLIND
    RIVET, BLIND
  • 14
    5411009 PLUG, HOLE
    PLUG, HOLE
  • 15
    2633256-070 FENDER ASSY (LEFT/BLACK) (INCL. FOAM AND FOIL)
    FENDER ASSY (LEFT/BLACK) (INCL. FOAM AND FOIL)
  • 15
    2633256-513 FENDER ASSY. (LEFT/BLUE) (INCL. FOAM AND FOIL)
    FENDER ASSY. (LEFT/BLUE) (INCL. FOAM AND FOIL)
  • 15
    5521697-350 SEAL-BULB
    SEAL-BULB
  • 16
    7661859 RIVET-NYLON
    RIVET-NYLON
  • 17
    5410582 PLUG, CATCH HOLE
    PLUG, CATCH HOLE
