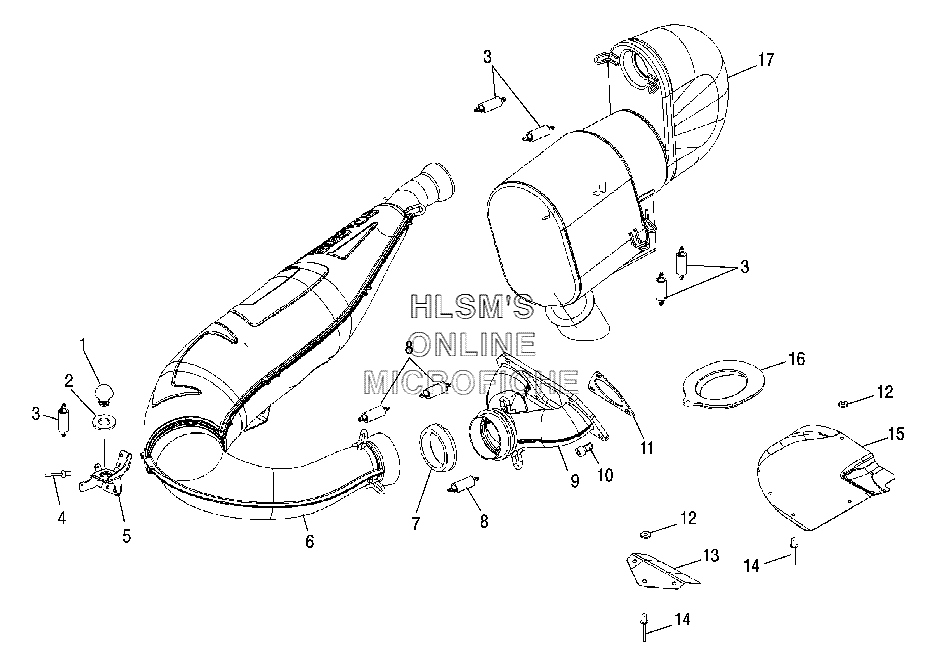

EXHAUST SYSTEM для Polaris 600 HO RMK 144'' (S06PK6FS) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    5411576 DAMPENER-VIBRATION, W/RIBS
    DAMPENER-VIBRATION, W/RIBS
  • 2
    7556004 WASHER
    WASHER
  • 3
    7041687 SPRING
    SPRING
  • 4
    7661637 RIVET, INTERLOCK
    RIVET, INTERLOCK
  • 5
    1261403 BRACKET, CHASSIS TUNED PIPE
    BRACKET, CHASSIS TUNED PIPE
  • 6
    1261344 TUNED ASSY., PIPE
    TUNED ASSY., PIPE
  • 6
    7080739 CLAMP-WORM DRIVE (.44X3.13 DIA)
    CLAMP-WORM DRIVE (.44X3.13 DIA)
  • 6
    7080751 CLAMP-WORM DRIVE (.44WX5.63DIA)
    CLAMP-WORM DRIVE (.44WX5.63DIA)
  • 6
    7080811 CLAMP-WORM DRIVE (.44WX6.5 DIA)
    CLAMP-WORM DRIVE (.44WX6.5 DIA)
  • 6
    5812609 MATTE-TUNED PIPE (TOP)
    MATTE-TUNED PIPE (TOP)
  • 6
    5812610 MATTE-TUNED PIPE (BOTTOM)
    MATTE-TUNED PIPE (BOTTOM)
  • 6
    5248072 COVER-TUNED PIPE (BOTTOM)
    COVER-TUNED PIPE (BOTTOM)
  • 6
    5248073 COVER-TUNED PIPE (TOP)
    COVER-TUNED PIPE (TOP)
  • 7
    3610046 SEAL, EXH.SOCKET
    SEAL, EXH.SOCKET
  • 8
    7042332 SPRING
    SPRING
  • 9
    1261358-029 MANIFOLD (BLACK)
    MANIFOLD (BLACK)
  • 10
    7517322 SCREW
    SCREW
  • 11
    5811838 GASKET-EXHAUST
    GASKET-EXHAUST
  • 12
    7556044 WASHER,
    WASHER,
  • 13
    5249759 DEFLECTOR-EXHAUST, W/HOLES
    DEFLECTOR-EXHAUST, W/HOLES
  • 14
    7661136 RIVET
    RIVET
  • 15
    5249116 PLATE-PROTECTION, FENDER
    PLATE-PROTECTION, FENDER
  • 16
    5436066 BOOT-EXHAUST, OUTLET
    BOOT-EXHAUST, OUTLET
  • 17
    1260004-029 RESONATOR (BLACK)
    RESONATOR (BLACK)
