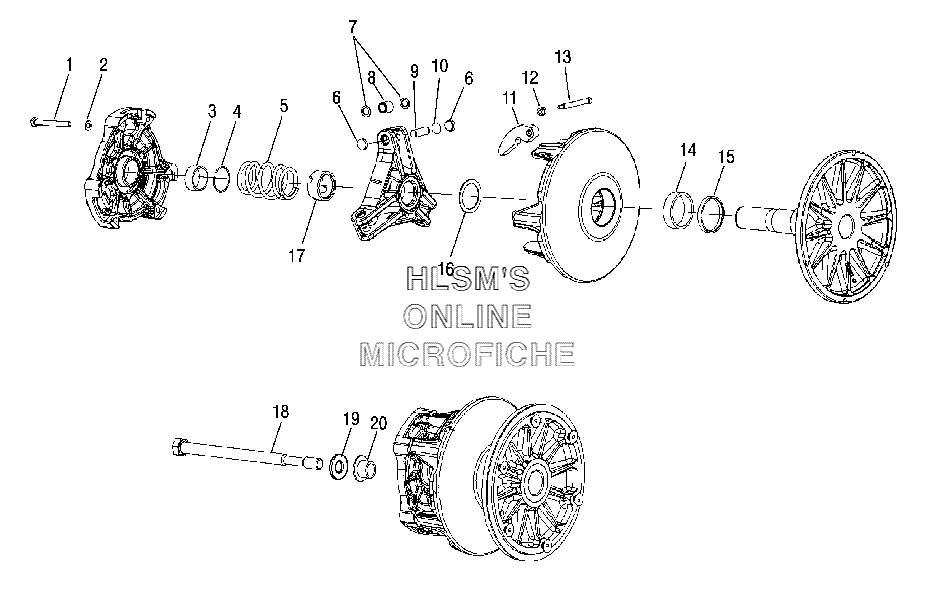

CLUTCH - DRIVE для Polaris 600 HO RMK 144'' (S06PK6FS) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    7512265 BOLT
    BOLT
  • 2
    7552801 WASHER, SPRING LOCK
    WASHER, SPRING LOCK
  • 3
    3576516 BEARING, COVER
    BEARING, COVER
  • 4
    7710417 RING, RETAINING, COVER
    RING, RETAINING, COVER
  • 5
    7042083 SPRING-CLUTCH (BLACK/GREEN)
    SPRING-CLUTCH (BLACK/GREEN)
  • 6
    5434188 BUTTON-GUIDE
    BUTTON-GUIDE
  • 7
    5430945 WASHER
    WASHER
  • 8
    1321622 ROLLER AND BUSHING ASSY (3)
    ROLLER AND BUSHING ASSY (3)
  • 9
    5133079 PIN-ROLLER, 1''
    PIN-ROLLER, 1''
  • 10
    2200387 SHIM KIT, DRIVE CLUTCH
    SHIM KIT, DRIVE CLUTCH
  • 11
    1321684 WT/BUSH.ASSY
    WT/BUSH.ASSY
  • 12
    7541906 NUT FLEXLOC
    NUT FLEXLOC
  • 13
    7515105 PIN, WT., HARDENED
    PIN, WT., HARDENED
  • 14
    3576502 BEARING, SLEEVE
    BEARING, SLEEVE
  • 15
    5010188 INSERT, MOVEABLE
    INSERT, MOVEABLE
  • 16
    5210754 SPACER, .050
    SPACER, .050
  • 16
    5210753 SPACER, .032
    SPACER, .032
  • 16
    5242981 SPACER, .025
    SPACER, .025
  • 16
    5210752 SPACER, .020
    SPACER, .020
  • 16
    5134018 SPACER, .130, PM
    SPACER, .130, PM
  • 17
    5020425 NUT, JAM
    NUT, JAM
  • 18
    7518412 SCREW
    SCREW
  • 19
    7556003 WASHER
    WASHER
  • 20
    5132441 WASHER, CLUTCH RETAINER
    WASHER, CLUTCH RETAINER
  • -
    1321928 DRIVE CLUTCH ASSY, BASIC (LESS 5, 11)
    DRIVE CLUTCH ASSY, BASIC (LESS 5, 11)
