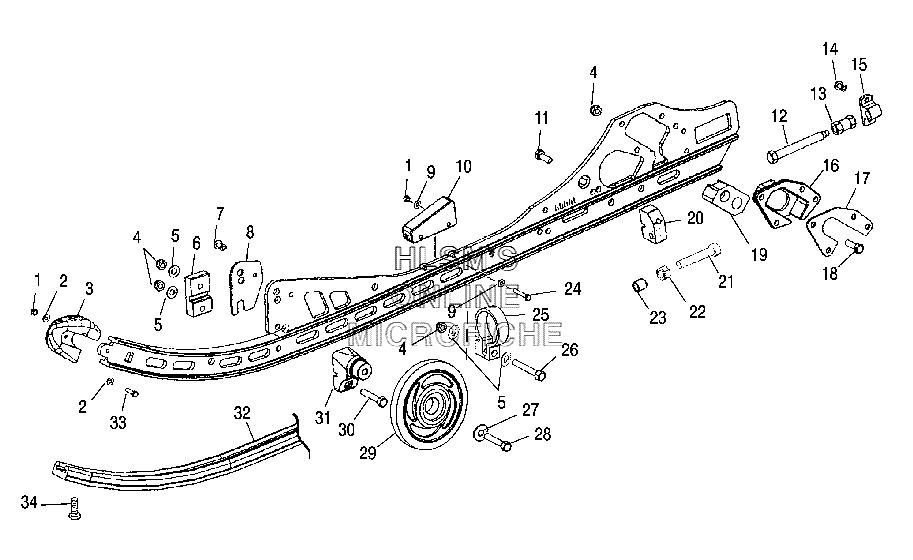

RAIL MOUNTING для Polaris 600 Classic (S06ND6ES) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    7541925 NUT, NYLOK
    NUT, NYLOK
  • 2
    7555792 WASHER
    WASHER
  • 3
    5434374 CAP-RAIL TIP
    CAP-RAIL TIP
  • 4
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 5
    7558402 WASHER, FLAT
    WASHER, FLAT
  • 6
    5132577 BLOCK-RAIL SUPPORT
    BLOCK-RAIL SUPPORT
  • 7
    7661845 RIVET
    RIVET
  • 8
    5244651 PLATE-RAIL SUPPORT
    PLATE-RAIL SUPPORT
  • 9
    7555783 WASHER, FLAT
    WASHER, FLAT
  • 10
    5411947 BUMPER-JOUNCE, RAIL
    BUMPER-JOUNCE, RAIL
  • 11
    7512392 BOLT
    BOLT
  • 12
    7517773 SCREW
    SCREW
  • 13
    5132712 NUT-TENSION, ADJ
    NUT-TENSION, ADJ
  • 14
    7621501 RIVET
    RIVET
  • 15
    5132611 BLOCK-IDLER BOLT ADJ, THIN
    BLOCK-IDLER BOLT ADJ, THIN
  • 16
    5631188 GUIDE-SLIDER, CAST (LEFT)
    GUIDE-SLIDER, CAST (LEFT)
  • 16
    5631189 GUIDE-SLIDER, CAST (RIGHT)
    GUIDE-SLIDER, CAST (RIGHT)
  • 17
    5245045 PLATE-COUPLER BLOCK
    PLATE-COUPLER BLOCK
  • 18
    7512310 SCREW
    SCREW
  • 19
    5434239 BLOCK-SLIDER, LONG (LEFT)
    BLOCK-SLIDER, LONG (LEFT)
  • 19
    5434240 BLOCK-SLIDER, LONG (RIGHT)
    BLOCK-SLIDER, LONG (RIGHT)
  • 20
    5132584 BLOCK-SHOCK PIVOT THREADED
    BLOCK-SHOCK PIVOT THREADED
  • 21
    7515511 SCREW
    SCREW
  • 22
    7542404 NUT
    NUT
  • 23
    5133009 SPACER
    SPACER
  • 24
    7511967 BOLT
    BOLT
  • 25
    5132832 CLAMP-RESERVIOR
    CLAMP-RESERVIOR
  • 26
    7515319 BOLT
    BOLT
  • 27
    7556179 WASHER-SPRING
    WASHER-SPRING
  • 28
    7515382 BOLT
    BOLT
  • 29
    1590275-244 WHEEL SCRLLD ASSY
    WHEEL SCRLLD ASSY
  • 29
    7718407 RING-RETAINING (1 PER WHEEL)
    RING-RETAINING (1 PER WHEEL)
  • 29
    3514303 BEARING #6205 (1 PER WHEEL)
    BEARING #6205 (1 PER WHEEL)
  • 30
    7512329 BOLT
    BOLT
  • 31
    5631065 BLOCK-WHEEL MOUNT
    BLOCK-WHEEL MOUNT
  • 32
    5521571 SLIDER, XL, SERVICE
    SLIDER, XL, SERVICE
  • 33
    7511975 SCREW
    SCREW
  • 34
    7515199 SCREW
    SCREW
  • -
    1541782-309 RAIL ASSY, M-10 (LEFT) (NATURAL) (INCL. 1-3, 10, 14, 15, 24, 33)
    RAIL ASSY, M-10 (LEFT) (NATURAL) (INCL. 1-3, 10, 14, 15, 24, 33)
  • -
    1541783-309 RAIL ASSY, M-10 (RIGHT) (NATURAL) (INCL. 1-3, 10, 14, 15, 24, 33)
    RAIL ASSY, M-10 (RIGHT) (NATURAL) (INCL. 1-3, 10, 14, 15, 24, 33)
