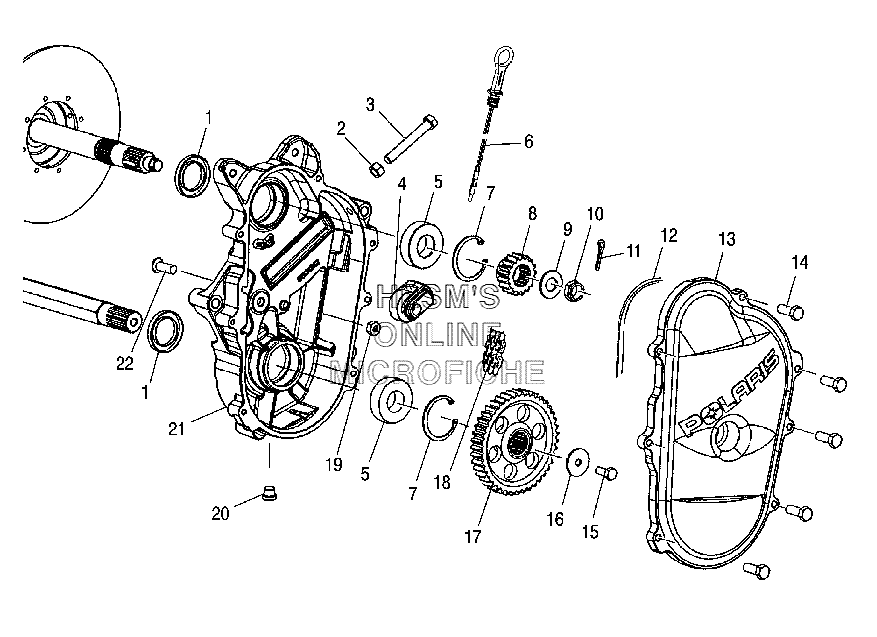

CHAINCASE ASSEMBLY для Polaris 600 Classic (S06ND6ES) - 2006 года выпуска
-
№АртикулНазвание
-
13610030 SEAL, OILSEAL, OIL
-
27542404 NUTNUT
-
37515459 SCREWSCREW
-
41341437 TIGHTENER ASSY, CHAINTIGHTENER ASSY, CHAIN
-
53514309 BEARING, BALLBEARING, BALL
-
61332143 DIPSTICK ASSY (INCL. O-RING)DIPSTICK ASSY (INCL. O-RING)
-
65410675 O-RINGO-RING
-
77718406 RING, RETAININGRING, RETAINING
-
83221099 SPROCKET, 15 SPLINE (23 TEETH)SPROCKET, 15 SPLINE (23 TEETH)
-
97571620 WASHER, SPRINGWASHER, SPRING
-
107547202 NUTNUT
-
117661203 PIN, COTTERPIN, COTTER
-
125812574 GASKET-CHAINCASE COVERGASKET-CHAINCASE COVER
-
135631354 COVER, CHAINCASECOVER, CHAINCASE
-
147512242 SCREWSCREW
-
157517979 SCREWSCREW
-
167571618 WASHER, SPRINGWASHER, SPRING
-
173222108 SPROCKET (39/15 TEETH)SPROCKET (39/15 TEETH)
-
183221109 CHAIN, HYVO. 74P, 3/4WCHAIN, HYVO. 74P, 3/4W
-
197542451 NUT, NYLOKNUT, NYLOK
-
207052115 PLUGPLUG
-
215134085 CHAINCASE 7.92 CDCHAINCASE 7.92 CD
-
227515477 SCREW, CARRIAGESCREW, CARRIAGE
