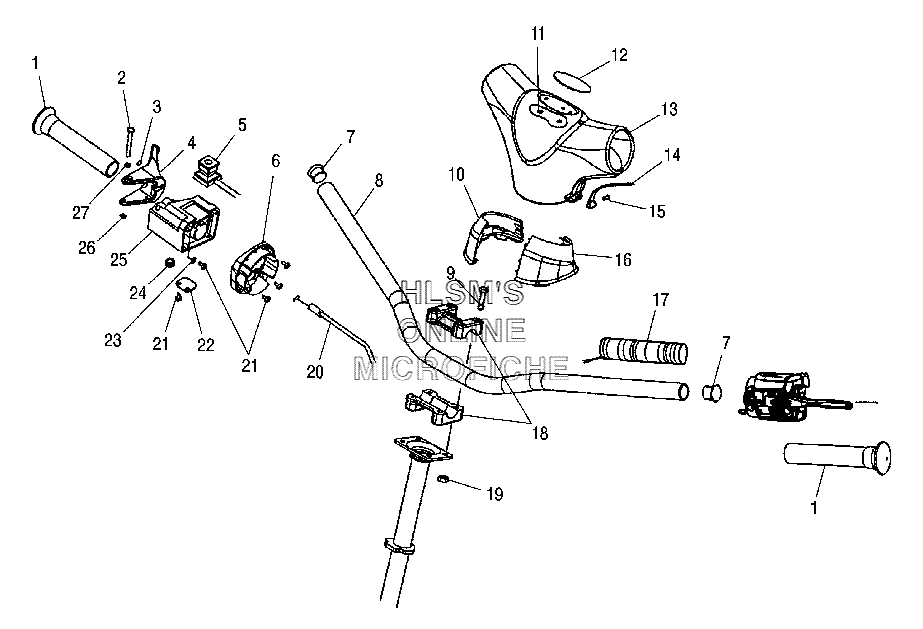

HANDLEBAR ASSEMBLY W/ CONTROLS для Polaris 600 Classic (S06ND6ES) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    5432634 GRIP, HANDLEBAR
    GRIP, HANDLEBAR
  • 2
    7661624 PIN-RETAINING
    PIN-RETAINING
  • 3
    7710503 RING, RETAINING
    RING, RETAINING
  • 4
    5432970 THROTTLE, LEVER 35.5MM
    THROTTLE, LEVER 35.5MM
  • 4
    2010171 LEVER ASSY, HEATER, HI/LO 35.5MM
    LEVER ASSY, HEATER, HI/LO 35.5MM
  • 5
    4110106 SWITCH, AUXILIARY SHUT-OFF
    SWITCH, AUXILIARY SHUT-OFF
  • 6
    5433345 ADAPTER-BLOCK, THROTTLE
    ADAPTER-BLOCK, THROTTLE
  • 7
    5431096 PLUG
    PLUG
  • 8
    5243355-067 HANDLEBAR (BLACK)
    HANDLEBAR (BLACK)
  • 9
    7517238 SCREW
    SCREW
  • 10
    5434488 COLLAR-CONSOLE (STD) (RIGHT)
    COLLAR-CONSOLE (STD) (RIGHT)
  • 11
    7670106 NUT-PUSH ON
    NUT-PUSH ON
  • 12
    5434179 EMBLEM-''STAR'' PLM.BEZEL, HANDLEBAR
    EMBLEM-''STAR'' PLM.BEZEL, HANDLEBAR
  • 13
    5433159-070 COVER-HANDLEBAR (BLACK)
    COVER-HANDLEBAR (BLACK)
  • 14
    5433160-070 SLIDE-HANDLEBAR COVER (BLACK)
    SLIDE-HANDLEBAR COVER (BLACK)
  • 15
    4010287 CLIP, DART NYLON (BLACK)
    CLIP, DART NYLON (BLACK)
  • 16
    5434487 COLLAR-CONSOLE (STD) (LEFT)
    COLLAR-CONSOLE (STD) (LEFT)
  • 17
    2460677 HEATER, GRIP, LO/MED/HI
    HEATER, GRIP, LO/MED/HI
  • 18
    5630187-067 BLOCK, HANDLEBAR (BLACK)
    BLOCK, HANDLEBAR (BLACK)
  • 19
    7542122 NUT-NYLOK
    NUT-NYLOK
  • 20
    7080867 CABLE, THROTTLE
    CABLE, THROTTLE
  • 21
    7511848 SCREW
    SCREW
  • 22
    5432261 HOLDER-WIRE
    HOLDER-WIRE
  • 23
    7555727 WASHER
    WASHER
  • 24
    7512465 SCREW SET
    SCREW SET
  • 25
    5431592 BLOCK, THROTTLE/BRAKE
    BLOCK, THROTTLE/BRAKE
  • 26
    7710401 RING, RETAINING
    RING, RETAINING
  • 27
    7555730 WASHER
    WASHER
