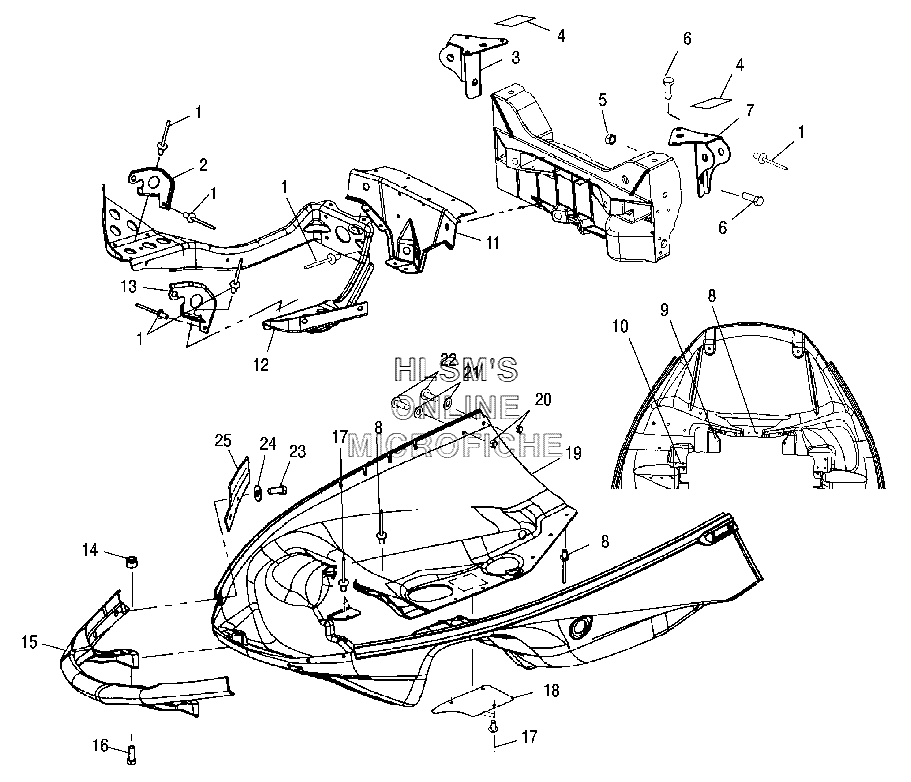

NOSEPAN ASSEMBLY #1 для Polaris 600 Classic (S06ND6ES) - 2006 года выпуска
-
№АртикулНазвание
-
17661637 RIVET, INTERLOCKRIVET, INTERLOCK
-
25243992-067 HINGE-PIVOT (LOWER/RIGHT/BLACK)HINGE-PIVOT (LOWER/RIGHT/BLACK)
-
35243978 MOUNT, UPPER SHOCK (RIGHT/BLACK)MOUNT, UPPER SHOCK (RIGHT/BLACK)
-
45810947 FOAM, SEALFOAM, SEAL
-
57547180 NUT-FLANGEDNUT-FLANGED
-
67517935 SCREWSCREW
-
75243977 MOUNT-UPPER SHOCK (LEFT) (BLACKHD)MOUNT-UPPER SHOCK (LEFT) (BLACKHD)
-
87621467 RIVET, BLINDRIVET, BLIND
-
97621431 RIVETRIVET
-
107661136 RIVETRIVET
-
115244049-067 BRACKET, RADIATOR ROD SUPPORT (BLACK)BRACKET, RADIATOR ROD SUPPORT (BLACK)
-
125244050 BRACE, PAN (LOWER)BRACE, PAN (LOWER)
-
135243991-067 HINGE-PIVOT (LOWER/LEFT/BLACK)HINGE-PIVOT (LOWER/LEFT/BLACK)
-
147542153 NUT, NYLOK, FLANGEDNUT, NYLOK, FLANGED
-
155434439-070 BUMPER-FRT, W/OUT NUTSERTS (BLACK)BUMPER-FRT, W/OUT NUTSERTS (BLACK)
-
167512163 BOLTBOLT
-
177621472 RIVETRIVET
-
185245853 SHIELD, HEAT, EXTENDEDSHIELD, HEAT, EXTENDED
-
195434343-070 NOSEPAN-GAS ASSIST (BLACK)NOSEPAN-GAS ASSIST (BLACK)
-
207542122 NUT-NYLOKNUT-NYLOK
-
217555827 WASHERWASHER
-
227515166 SCREWSCREW
-
237517986 SCREWSCREW
-
247552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
255244888 GUIDE-HOOD (LEFT)GUIDE-HOOD (LEFT)
-
255244889 GUIDE-HOOD (RIGHT)GUIDE-HOOD (RIGHT)
