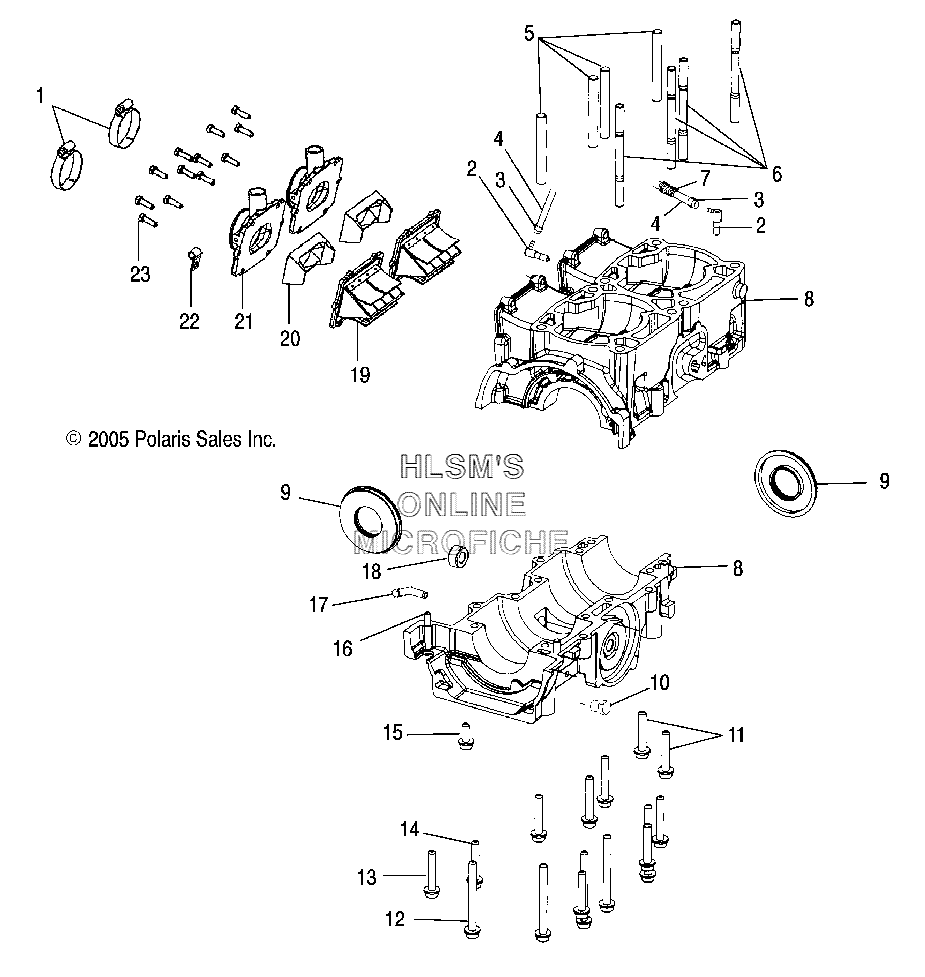

CRANKCASE ASSEMBLY для Polaris 600 Classic (S06ND6ES) - 2006 года выпуска
-
№АртикулНазвание
-
17080681 CLAMP, HOSECLAMP, HOSE
-
27051020 VALVE, CHECK, 90 DEG.VALVE, CHECK, 90 DEG.
-
37080603 CLAMPCLAMP
-
48450061-600 LINE, FUEL (3MMX7MM)LINE, FUEL (3MMX7MM)
-
55132196 STUD, CYLINDER (81MM)STUD, CYLINDER (81MM)
-
65132197 STUD, CYLINDER (118MM)STUD, CYLINDER (118MM)
-
78360056-25 TUBING-CONVOLUTED, 25CMTUBING-CONVOLUTED, 25CM
-
82202519 CRANKCASE KIT (INCL. 5, 6, 10-16)CRANKCASE KIT (INCL. 5, 6, 10-16)
-
95412091 SEAL-FLANGE (35X72X7)SEAL-FLANGE (35X72X7)
-
107051529 PLUGPLUG
-
117517785 BOLT, M8X1.25X55BOLT, M8X1.25X55
-
127517784 BOLT, M8X1.25X80BOLT, M8X1.25X80
-
137516825 SCREWSCREW
-
147517786 BOLT, M8X1.25X45BOLT, M8X1.25X45
-
157517577 SCREWSCREW
-
167663001 PIN, DOWELPIN, DOWEL
-
177052354 FITTINGFITTING
-
185010390 WASHERWASHER
-
191201825 VALVE, REED ASSYVALVE, REED ASSY
-
205433151 STUFFER-REED BLOCKSTUFFER-REED BLOCK
-
211253423 ADAPTER-CARBURETORADAPTER-CARBURETOR
-
227080880 CLAMP-HOSECLAMP-HOSE
-
237516822 SCREWSCREW
