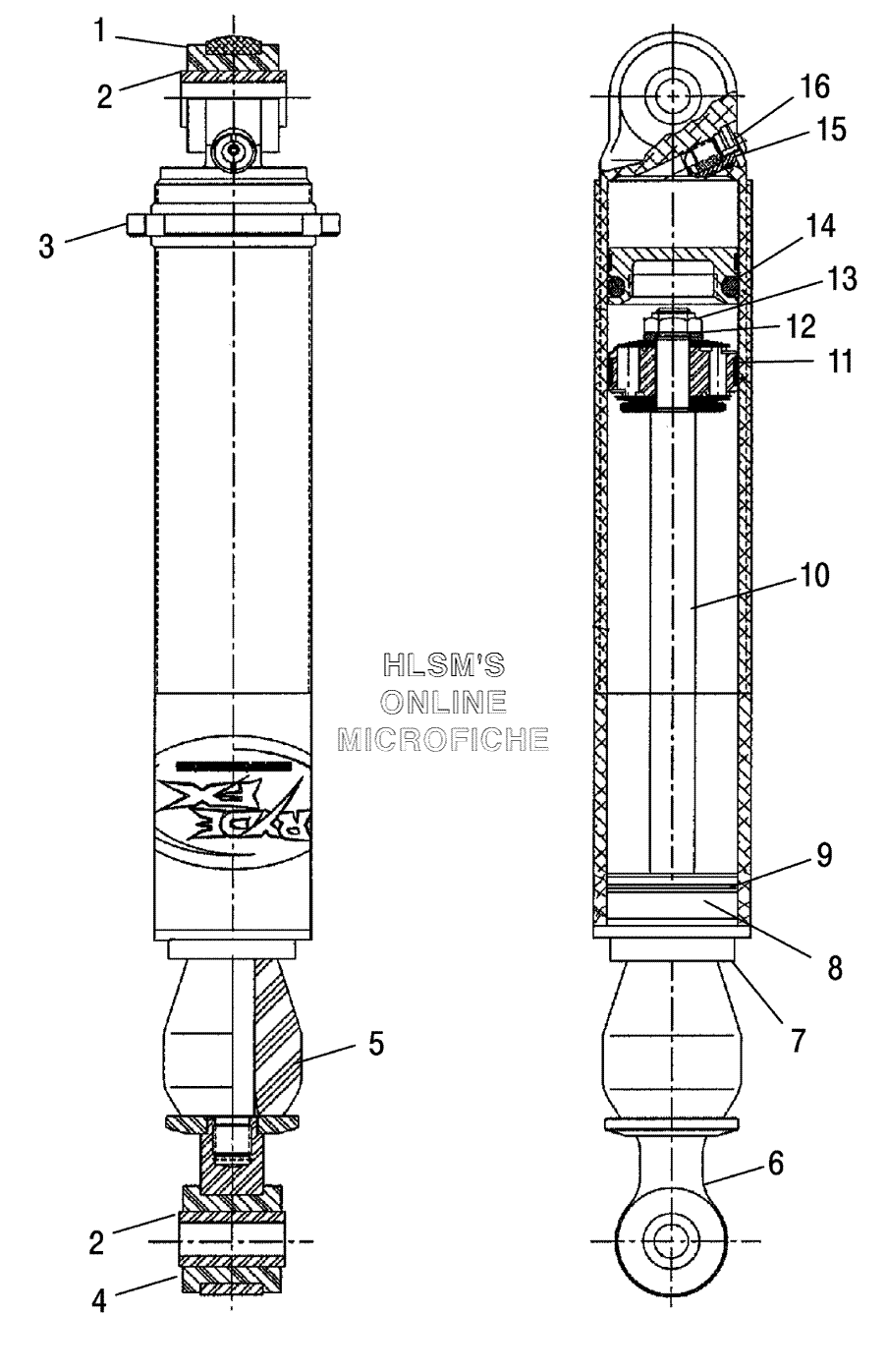

SUSPENSION - FOX SHOCK - IFS для Polaris 500 XC SP (S06NP5CSB) - 2006 года выпуска`
-
№АртикулНазвание
-
11700036 BUSHINGBUSHING
-
21700037 SLEEVE (.38''IDX.63''ODX1.18STEEL)SLEEVE (.38''IDX.63''ODX1.18STEEL)
-
31700033 NUT, SPRING RETAINERNUT, SPRING RETAINER
-
41700072 BUSHINGBUSHING
-
51700042 BUMPER, COMPRESSIONBUMPER, COMPRESSION
-
61700010 MOUNT, UPPERMOUNT, UPPER
-
71700156 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
81700021 ROD SEALROD SEAL
-
91700051 CYLINDER, HEAD O-RINGCYLINDER, HEAD O-RING
-
101700025 SHAFT (1/2''DIAX7.88''L)SHAFT (1/2''DIAX7.88''L)
-
111700109 BANDED PISTON .094" ORIFICEBANDED PISTON .094" ORIFICE
-
111700031 PISTON WEAR BANDPISTON WEAR BAND
-
111700077 TOP-OUT WASHERTOP-OUT WASHER
-
111700078 BACK-UP WASHERBACK-UP WASHER
-
122200618 VALVE PISTON KITVALVE PISTON KIT
-
131700057 NUTNUT
-
141700023 IFPIFP
-
141700032 IFP WEAR BANDIFP WEAR BAND
-
141700048 IFP-O-RINGIFP-O-RING
-
151700076 PRESS-VALVE ASSYPRESS-VALVE ASSY
-
151700047 PRESS-VALVE O-RINGPRESS-VALVE O-RING
-
161700056 VALVE SCREWVALVE SCREW
