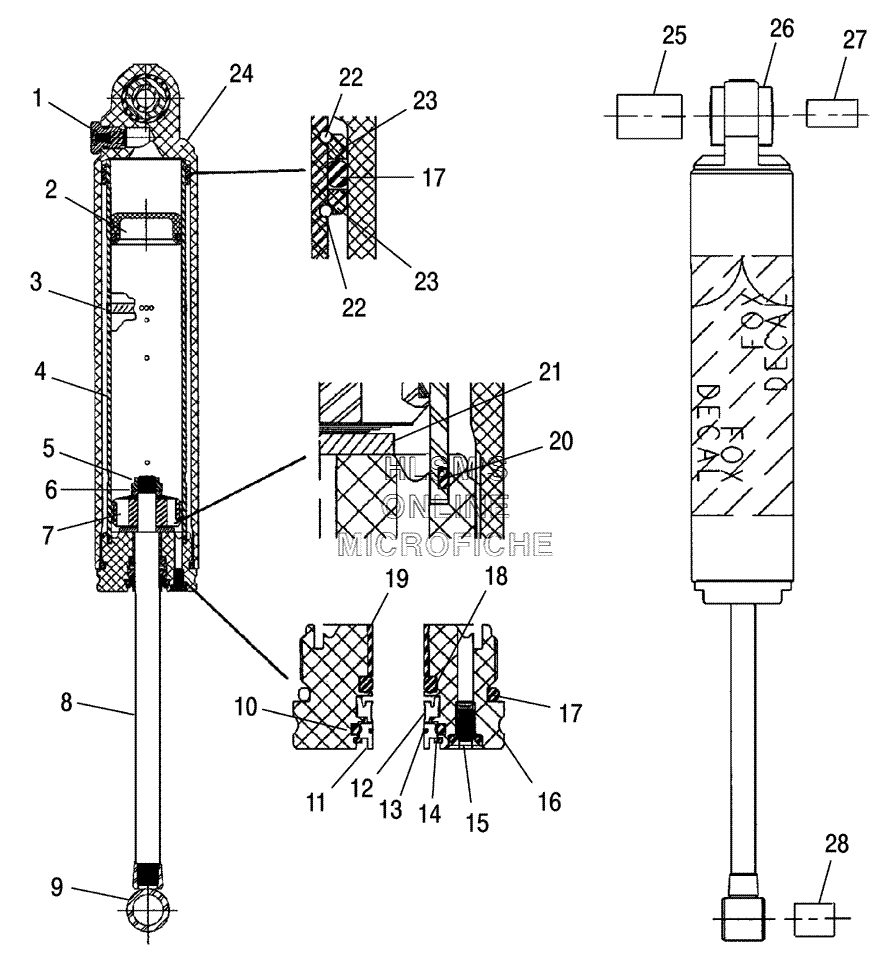

SUSPENSION - REAR SHOCK TRACK для Polaris 500 XC SP (S06NP5CSB) - 2006 года выпуска
-
№АртикулНазвание
-
11500295 SCREWSCREW
-
11500022 O-RING, DRUM OUTERO-RING, DRUM OUTER
-
21500481 FLOATING PISTON ASSYFLOATING PISTON ASSY
-
21500006 RING, PISTON, FLOATING,RING, PISTON, FLOATING,
-
21500003 O-RING, ENDCAPO-RING, ENDCAP
-
31500306 VALVE, CHECKVALVE, CHECK
-
41500331 BODY, ASSY (INNER)BODY, ASSY (INNER)
-
51500016 NUT, LOCKNUT, LOCK
-
61500015 PLATE, BACKUPPLATE, BACKUP
-
71500489 PISTON-.063 BLEEDPISTON-.063 BLEED
-
71500002 DAMPER, PISTON RINGDAMPER, PISTON RING
-
81500487 SHAFT (.5X8.41)SHAFT (.5X8.41)
-
91500302 EYELETEYELET
-
101500483 O-RINGO-RING
-
111500485 SCRAPER-FIST (BRONZE)SCRAPER-FIST (BRONZE)
-
121500266 U-CUP-4300 URETHU-CUP-4300 URETH
-
131500484 O-RING (14MM IDX1 MM)O-RING (14MM IDX1 MM)
-
141500486 RING-SNAP, INTERNALRING-SNAP, INTERNAL
-
151500295 SCREWSCREW
-
151500022 O-RING, DRUM OUTERO-RING, DRUM OUTER
-
161500482 BEARING, FIST ASSY (INCL. 10-19)BEARING, FIST ASSY (INCL. 10-19)
-
171500228 O-RINGO-RING
-
181500127 O-RINGO-RING
-
191500488 BEARING (.5 IDX.5)BEARING (.5 IDX.5)
-
201500459 O-RING (.070CSX1.489ID)O-RING (.070CSX1.489ID)
-
211500017 PLATE, TOP OUTPLATE, TOP OUT
-
221500097 RING-RETAINING, WIRERING-RETAINING, WIRE
-
231500336 COLLAR, ALUMINUMCOLLAR, ALUMINUM
-
241500480 BODY ASSY, PPS3BODY ASSY, PPS3
-
251500311 SLEEVE (.56X.81X1.28)SLEEVE (.56X.81X1.28)
-
261500307 BUSHING (.35ILG, .63TLG)BUSHING (.35ILG, .63TLG)
-
275333907 SLEEVE (.385X.560X1.30)SLEEVE (.385X.560X1.30)
-
285010422 BUSHINGBUSHING
