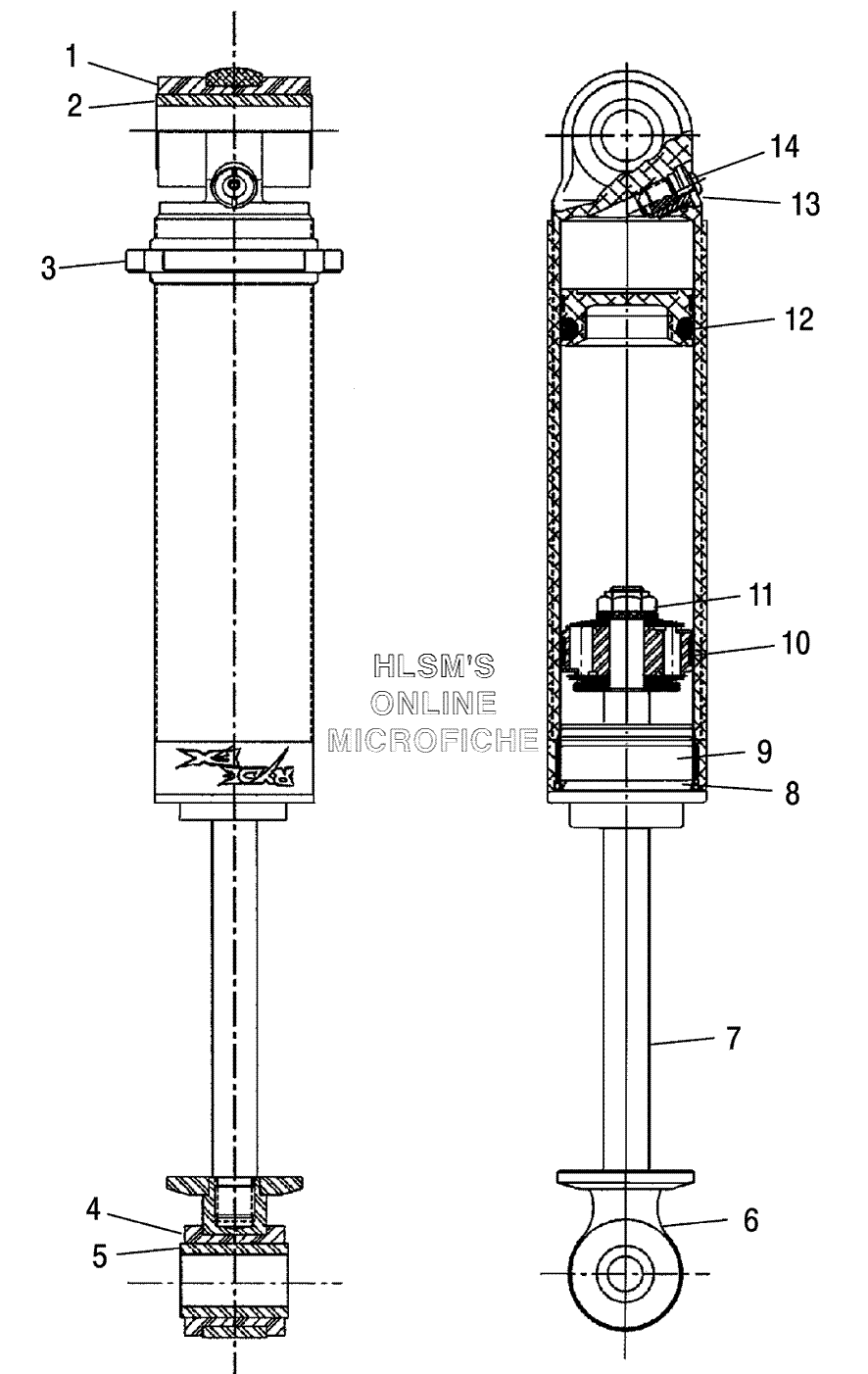

SUSPENSION - FRONT SHOCK TRACK для Polaris 500 XC SP (S06NP5CSB) - 2006 года выпуска
-
№АртикулНазвание
-
11700074 BUSHINGBUSHING
-
21700071 SLEEVE (.57''IDX.80''ODX1.68)SLEEVE (.57''IDX.80''ODX1.68)
-
31700033 NUT, SPRING RETAINERNUT, SPRING RETAINER
-
41700075 BUSHINGBUSHING
-
51700069 SLEEVE (.57''IDX.80''ODX1.20)SLEEVE (.57''IDX.80''ODX1.20)
-
61700010 MOUNT, UPPERMOUNT, UPPER
-
71700026 SHAFT (1/2''DIAX6.10''L)SHAFT (1/2''DIAX6.10''L)
-
81700051 CYL-HEAD O-RINGCYL-HEAD O-RING
-
91700156 CYL HEAD ASSY 215098-100CYL HEAD ASSY 215098-100
-
101700103 BANDED PISTON .070'' ORIFCE ASSYBANDED PISTON .070'' ORIFCE ASSY
-
101700031 PISTON WEAR BANDPISTON WEAR BAND
-
101700077 TOP-OUT WASHERTOP-OUT WASHER
-
101700078 BACK-UP WASHERBACK-UP WASHER
-
111700057 NUTNUT
-
121700023 IFPIFP
-
121700032 IFP WEAR BANDIFP WEAR BAND
-
121700048 IFP-O-RINGIFP-O-RING
-
131700076 PRESS-VALVE ASSYPRESS-VALVE ASSY
-
141700056 VALVE SCREWVALVE SCREW
