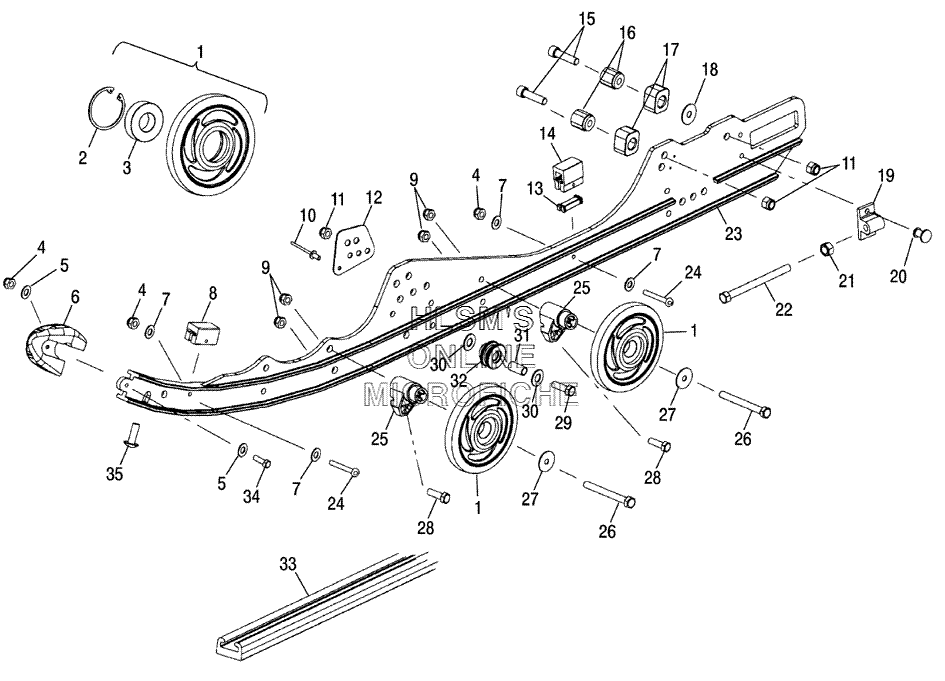

RAIL MOUNTING для Polaris 500 XC SP (S06NP5CSB) - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    1590275-293 WHEEL SCROLLED ASSY (RED) (INCL. 2, 3)
    WHEEL SCROLLED ASSY (RED) (INCL. 2, 3)
  • 2
    7718407 RING-RETAINING (1 PER WHEEL)
    RING-RETAINING (1 PER WHEEL)
  • 3
    3514303 BEARING #6205 (1 PER WHEEL)
    BEARING #6205 (1 PER WHEEL)
  • 4
    7541925 NUT, NYLOK
    NUT, NYLOK
  • 5
    7555792 WASHER
    WASHER
  • 6
    5434374 CAP-RAIL TIP
    CAP-RAIL TIP
  • 7
    7555783 WASHER, FLAT
    WASHER, FLAT
  • 8
    5521499 BUMPER, JOUNCE FRONT
    BUMPER, JOUNCE FRONT
  • 9
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 10
    7661845 RIVET
    RIVET
  • 11
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 12
    5244677 BRKT, RAIL REINF
    BRKT, RAIL REINF
  • 13
    5432946 LINER, BUMPER
    LINER, BUMPER
  • 14
    5521498 BUMPER, JOUNCE (REAR)
    BUMPER, JOUNCE (REAR)
  • 15
    7515537 BOLT
    BOLT
  • 16
    5131113 MOUNT, BUMPER
    MOUNT, BUMPER
  • 17
    5410925 BUMPER, PIVOT ARM
    BUMPER, PIVOT ARM
  • 18
    5244371 SPACER (1.00X.390X.105)
    SPACER (1.00X.390X.105)
  • 19
    5132444 BLOCK, IDLER BOLT ADJ
    BLOCK, IDLER BOLT ADJ
  • 20
    7621501 RIVET
    RIVET
  • 21
    7547156 NUT (7/16-14)
    NUT (7/16-14)
  • 22
    7517773 SCREW
    SCREW
  • 23
    1541755 RAIL ASSY, 121 (LEFT) (INCL. 6, 8, 14, 19)
    RAIL ASSY, 121 (LEFT) (INCL. 6, 8, 14, 19)
  • 23
    1541756 RAIL ASSY, 121 (RIGHT) (INCL. 6, 8, 14, 19)
    RAIL ASSY, 121 (RIGHT) (INCL. 6, 8, 14, 19)
  • 24
    7510504 SCREW
    SCREW
  • 25
    5631065 BLOCK-WHEEL MOUNT
    BLOCK-WHEEL MOUNT
  • 26
    7515346 SCREW
    SCREW
  • 27
    7556179 WASHER-SPRING
    WASHER-SPRING
  • 28
    7515317 BOLT
    BOLT
  • 29
    7515438 BOLT
    BOLT
  • 30
    7555983 WASHER, FLAT
    WASHER, FLAT
  • 31
    5333948 SPACER (.407X.625X1.33)
    SPACER (.407X.625X1.33)
  • 32
    5433959 ROLLER-SPRING, SQUARE
    ROLLER-SPRING, SQUARE
  • 33
    5521571 SLIDER, SERVICE
    SLIDER, SERVICE
  • 34
    7511975 SCREW
    SCREW
  • 35
    7515199 SCREW
    SCREW
