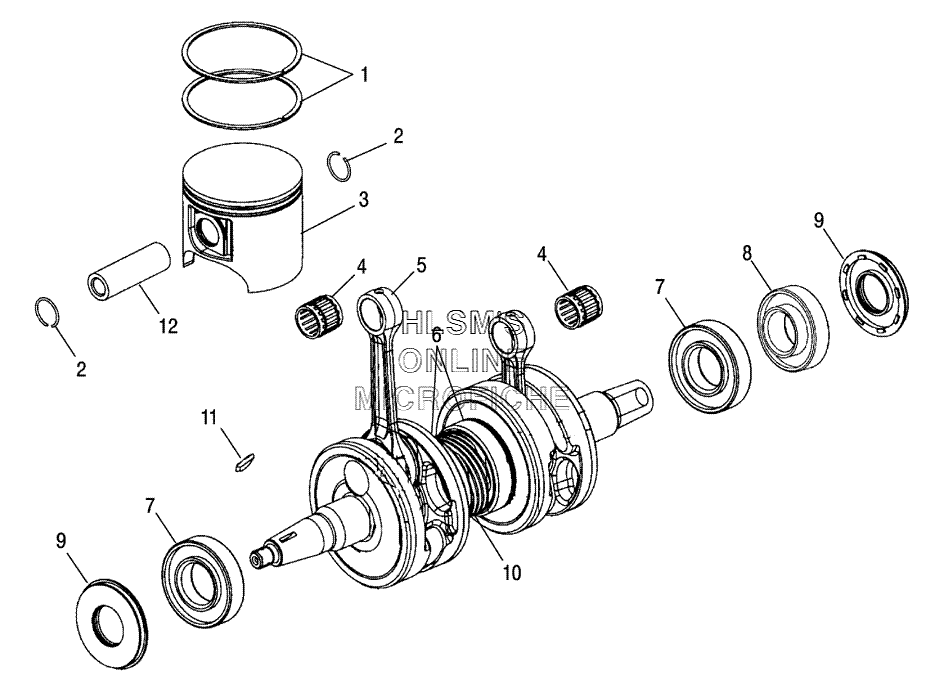

PISTON AND CRANKSHAFT для Polaris 500 XC SP (S06NP5CSB) - 2006 года выпуска
-
№АртикулНазвание
-
12201196 PISTON RINGS KIT (70.5MM)PISTON RINGS KIT (70.5MM)
-
23022950 CIRCLIP, PISTON (20MM)CIRCLIP, PISTON (20MM)
-
32202318 PISTON KIT (INCL. 1, 2, 12)PISTON KIT (INCL. 1, 2, 12)
-
43514365 BEARING (17-20X25X23, PNPIN, KOYO)BEARING (17-20X25X23, PNPIN, KOYO)
-
52201132 CONNECT ROD ASSYCONNECT ROD ASSY
-
63514363 BEARING-BALL (35X72X20, SL, KOYO)BEARING-BALL (35X72X20, SL, KOYO)
-
73585503 BEARING, BALLBEARING, BALL
-
83514310 BEARING, BALL, EXTRACEBEARING, BALL, EXTRACE
-
95411394 SEAL, FLANGEDSEAL, FLANGED
-
105133689 GEAR-PUMP DRIVE 10 STARTGEAR-PUMP DRIVE 10 START
-
117721117 KEY, WOODRUFFKEY, WOODRUFF
-
-2202520 CRANKSHAFT KIT (INCL. 6-8, 10)CRANKSHAFT KIT (INCL. 6-8, 10)
