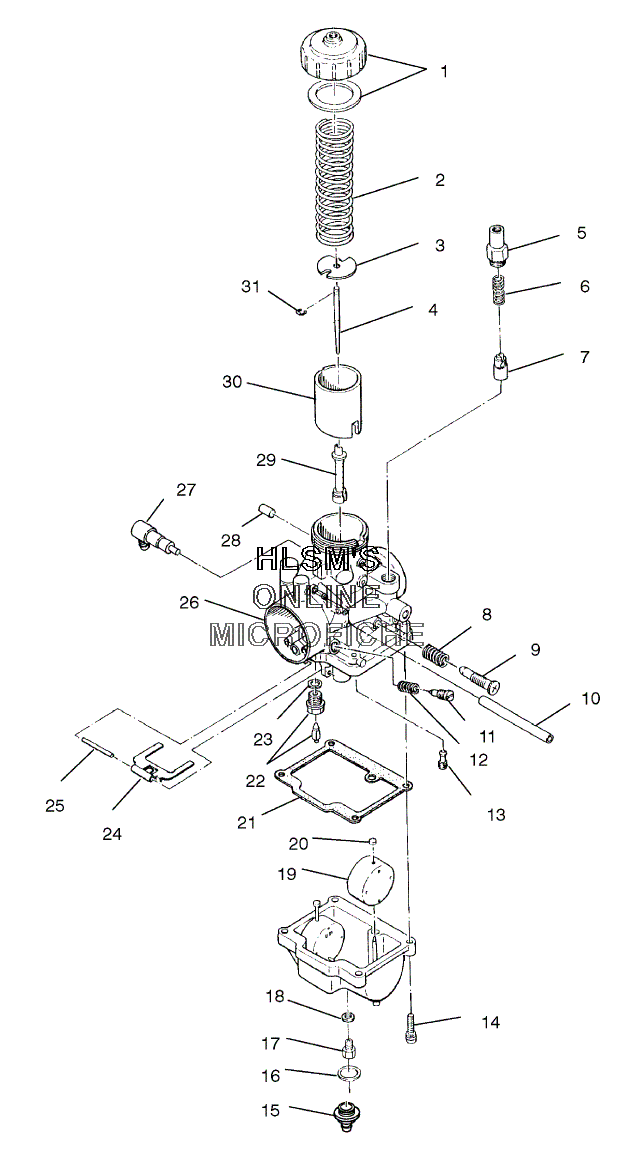

CARBURETOR ASSEMBLY для Polaris SPORT TOURING (S04NU5BS) - 2004 года выпуска`
-
№АртикулНазвание
-
13130877 TOP MIXING CHAMBER ASSYTOP MIXING CHAMBER ASSY
-
23130439 SPRING, THROTTLESPRING, THROTTLE
-
33130879 PLAT THROTTLEPLAT THROTTLE
-
43131416 NEEDLE JETNEEDLE JET
-
53130199 HOLDER, GUIDEHOLDER, GUIDE
-
63130884 SPRING PLUNGERSPRING PLUNGER
-
73130328 PLUNGER ASSYPLUNGER ASSY
-
83130010 SPRING, THROTTLE ADJUSTERSPRING, THROTTLE ADJUSTER
-
93130437 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
103131288 HOSEHOSE
-
113130011 SCREW, AIRSCREW, AIR
-
123130012 SPRING, AIR ADJUSTSPRING, AIR ADJUST
-
133130067 JET, PILOTJET, PILOT
-
143130025 SCREW AND WASHER ASSYSCREW AND WASHER ASSY
-
155020476 FITTING, SEDIMENTFITTING, SEDIMENT
-
163130239 O-RINGO-RING
-
173130130 JET, MAIN, HEXAGON HEAD (MAG)JET, MAIN, HEXAGON HEAD (MAG)
-
173130131 JET, MAIN HEXAGON HEAD (PTO)JET, MAIN HEXAGON HEAD (PTO)
-
183130014 WASHERWASHER
-
193130430 FLOAT ASSYFLOAT ASSY
-
203130237 CAPCAP
-
213130020 GASKET, FLOAT CHAMBERGASKET, FLOAT CHAMBER
-
223131146 VALVE, NEEDLEVALVE, NEEDLE
-
233130017 PACKING, NEEDLE VALVEPACKING, NEEDLE VALVE
-
243130018 ARM, FLOATARM, FLOAT
-
253130361 PIN, FLOATPIN, FLOAT
-
263131520 CARBURETOR ASSY (INCL. ALL) (MAG)CARBURETOR ASSY (INCL. ALL) (MAG)
-
263131521 CARBURETOR ASSY (INCL. ALL) (PTO)CARBURETOR ASSY (INCL. ALL) (PTO)
-
273083337 VALVE CHECK ASSYVALVE CHECK ASSY
-
283130479 CAPCAP
-
293130894 JET, NEEDLE Q-2JET, NEEDLE Q-2
-
303130372 VALVE, THROTTLEVALVE, THROTTLE
-
313130508 E-RINGE-RING
