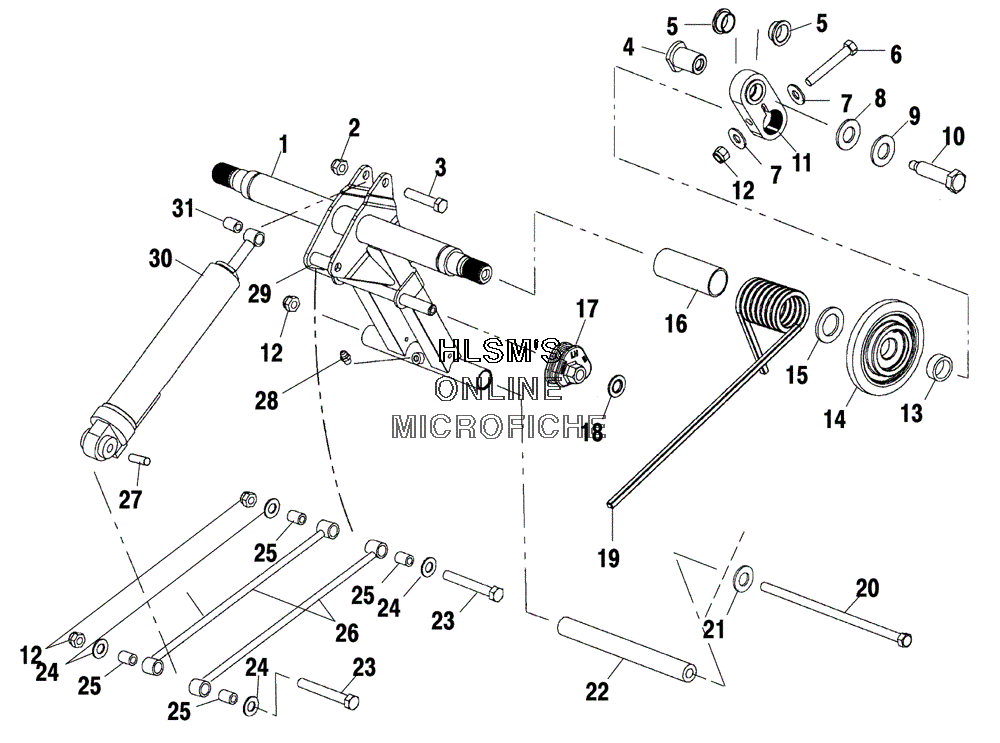

SUSPENSION - REAR TORQUE ARM ASSEMBLY для Polaris SPORT TOURING (S04NU5BS) - 2004 года выпуска

№

Артикул

Название
1

1541969-067 WELD ARM, TORQUE (REAR/BLACK)

WELD ARM, TORQUE (REAR/BLACK)
2

7542411 NUT, FLEXLOC

NUT, FLEXLOC
3

7512410 BOLT

BOLT
4

5333758 SHAFT ARM

SHAFT ARM
5

3514331 BUSHING

BUSHING
6

7515415 SCREW

SCREW
7

7556188 WASHER FLAT

WASHER FLAT
8

7555893 WASHER, FLAT

WASHER, FLAT
9

7552603 WASHER, SPRING LOCK

WASHER, SPRING LOCK
10

7517435 SCREW

SCREW
11

1541967 ARM ASSY(INCL. 5)

ARM ASSY(INCL. 5)
12

7542439 NUT, NYLOK

NUT, NYLOK
13

5132388 SPACER, WHEEL

SPACER, WHEEL
14

1590343 CARRIER WHEEL ASSY

CARRIER WHEEL ASSY
15

7555787 WASHER

WASHER
16

5431923 SLEEVE, TORSION SPRING

SLEEVE, TORSION SPRING
17

5434589 ROLLER SPRING, TRI ADJUSTER (LEFT)

ROLLER SPRING, TRI ADJUSTER (LEFT)
17

5434590 ROLLER SPRING, TRI ADJUSTER (RIGHT)

ROLLER SPRING, TRI ADJUSTER (RIGHT)
18

7080394 CLIP, PUSH ON

CLIP, PUSH ON
19

7041942-067 SPRING TORSION (LEFT/BLACK) (OPT.)

SPRING TORSION (LEFT/BLACK) (OPT.)
19

7041943-067 SPRING TORSION (RIGHT/BLACK) (OPT.)

SPRING TORSION (RIGHT/BLACK) (OPT.)
19

7041940-067 SPRING TORSION (BLACK/LEFT) (STANDARD)

SPRING TORSION (BLACK/LEFT) (STANDARD)
19

7041941-067 SPRING TORSION (BLACK/RIGHT) (STANDARD)

SPRING TORSION (BLACK/RIGHT) (STANDARD)
20

7517232 SCREW

SCREW
21

7555806 WASHER, FLAT

WASHER, FLAT
22

5334025 SHAFT ANODIZE

SHAFT ANODIZE
23

7515514 BOLT

BOLT
24

7555795 WASHER, WAVE SPRING

WASHER, WAVE SPRING
25

5132391 BUSHING

BUSHING
26

1541479-067 ROD, SHOCK (BLACK)

ROD, SHOCK (BLACK)
27

5333905 SLEEVE

SLEEVE
28

7080424 FITTING, LUBRICATION

FITTING, LUBRICATION
29

5333904 SPACER

SPACER
30

7042138 SHOCK R/T

SHOCK R/T
31

5010422 BUSHING

BUSHING
