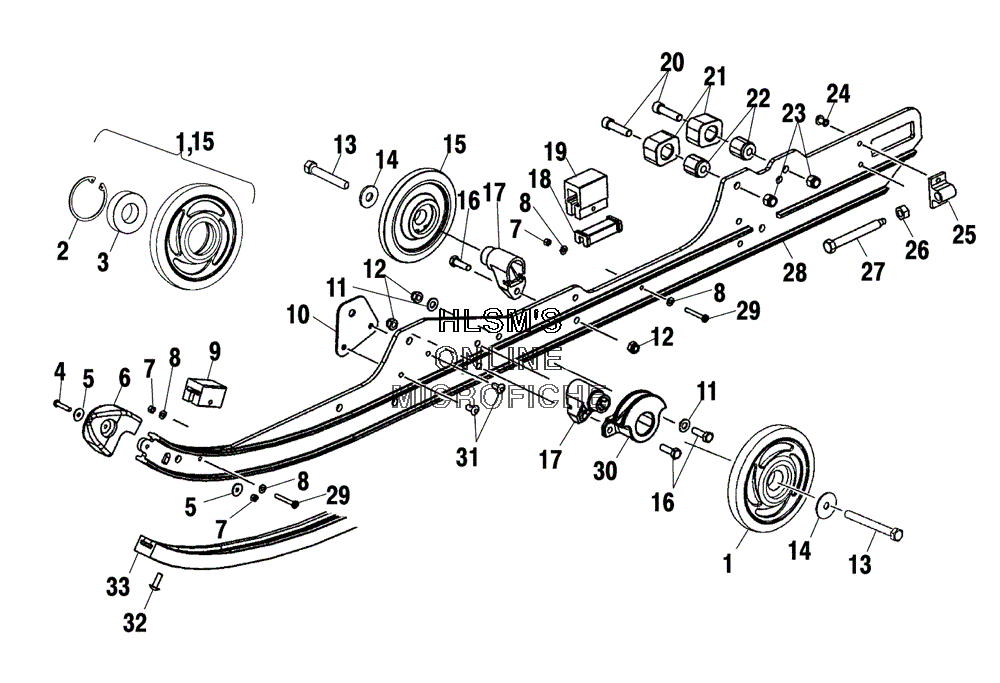

RAIL ASSEMBLY W/ IDLER WHEELS для Polaris SPORT TOURING (S04NU5BS) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    1590318-244 WHEEL, SCROLLED ASSY (SILVER) (INCL. 2, 3)
    WHEEL, SCROLLED ASSY (SILVER) (INCL. 2, 3)
  • 2
    7718407 RING RETAINING (1 PER WHEEL)
    RING RETAINING (1 PER WHEEL)
  • 3
    3514303 BEARING (1 PER WHEEL)
    BEARING (1 PER WHEEL)
  • 4
    7512007 BOLT
    BOLT
  • 5
    7555792 WASHER
    WASHER
  • 6
    5434355 CAP RAIL TIP UHMW
    CAP RAIL TIP UHMW
  • 7
    7541925 NUT, NYLOK 10-24 Y
    NUT, NYLOK 10-24 Y
  • 8
    7555783 WASHER, FLAT
    WASHER, FLAT
  • 9
    5521499 BUMPER, JOUNCE FRONT
    BUMPER, JOUNCE FRONT
  • 10
    5245678 BRACKET RAIL REINFORCE
    BRACKET RAIL REINFORCE
  • 11
    7558402 WASHER, FLAT
    WASHER, FLAT
  • 12
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 13
    7515346 SCREW
    SCREW
  • 14
    7556179 WASHER SPRING
    WASHER SPRING
  • 15
    1590317 WHEEL, BOGIE PLAIN ASSY (INCL. 2, 3)
    WHEEL, BOGIE PLAIN ASSY (INCL. 2, 3)
  • 16
    7515317 BOLT
    BOLT
  • 17
    5631065 BLOCK WHEEL MOUNT, LWT
    BLOCK WHEEL MOUNT, LWT
  • 18
    5432946 LINER, BUMPER
    LINER, BUMPER
  • 19
    5521498 BUMPER, JOUNCE (REAR)
    BUMPER, JOUNCE (REAR)
  • 20
    7515537 BOLT
    BOLT
  • 21
    5410925 BUMPER, PIVOT ARM
    BUMPER, PIVOT ARM
  • 22
    5131113 MOUNT, BUMPER
    MOUNT, BUMPER
  • 23
    7542439 NUT, NYLOK
    NUT, NYLOK
  • 24
    7621501 RIVET
    RIVET
  • 25
    5132444 BLOCK, IDLER BOLT ADJUSTER (7/16)
    BLOCK, IDLER BOLT ADJUSTER (7/16)
  • 26
    7547156 NUT
    NUT
  • 27
    7517773 SCREW HEAD
    SCREW HEAD
  • 28
    1541684 RAIL ASSY (LEFT) (INCL. 6, 9, 19, 21, 25)
    RAIL ASSY (LEFT) (INCL. 6, 9, 19, 21, 25)
  • 28
    1541685 RAIL ASSY (RIGHT) (INCL. 6, 9, 19, 21, 25)
    RAIL ASSY (RIGHT) (INCL. 6, 9, 19, 21, 25)
  • 29
    7510504 SCREW
    SCREW
  • 30
    5434277 GUIDE SPRING
    GUIDE SPRING
  • 31
    7661845 RIVET
    RIVET
  • 32
    7515199 SCREW
    SCREW
  • 33
    5521633 SLIDER SERVICE, BASIC
    SLIDER SERVICE, BASIC
