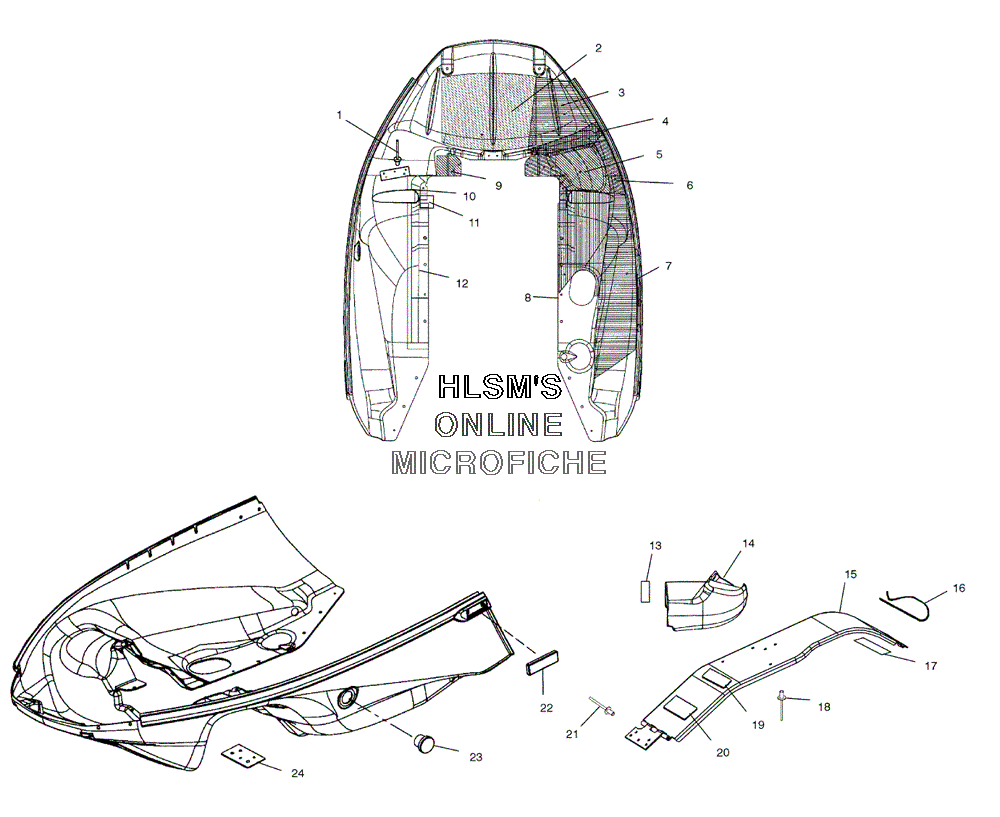

NOSEPAN ASSEMBLY #1 для Polaris SPORT TOURING (S04NU5BS) - 2004 года выпуска
-
№АртикулНазвание
-
17621462 RIVETRIVET
-
25811458 FOIL TAPE (12"X12")FOIL TAPE (12"X12")
-
35812040 FOIL (FRONT)FOIL (FRONT)
-
45812067 FOIL, TAPEFOIL, TAPE
-
55812039 FOILFOIL
-
65812068 FOIL, TAPEFOIL, TAPE
-
75812018 FOIL, TAPE (UPPER/RIGHT)FOIL, TAPE (UPPER/RIGHT)
-
85812019 FOIL, TAPE (LOWER/RIGHT)FOIL, TAPE (LOWER/RIGHT)
-
95812020 FOIL, TAPEFOIL, TAPE
-
107080963 RETAINER "J" CLIPRETAINER "J" CLIP
-
115811948 FOILFOIL
-
127670130 SPEED CLIP "U" TYPESPEED CLIP "U" TYPE
-
135812353 FOAMFOAM
-
145434531 DUCT ENGINE AIR OUTLETDUCT ENGINE AIR OUTLET
-
151013069 GUARD, CLUTCH ASSYGUARD, CLUTCH ASSY
-
167080698 PIN CLUTCH GUARDPIN CLUTCH GUARD
-
175812352 PAD CLUTCH GUARDPAD CLUTCH GUARD
-
187621485 RIVETRIVET
-
197079297 DECALDECAL
-
207170742 DECAL TROUBLE SHOOTDECAL TROUBLE SHOOT
-
217621402 RIVET, POPRIVET, POP
-
222670134 REFLECTOR, AMBER ASSYREFLECTOR, AMBER ASSY
-
235433926 PLUG, OBLONGPLUG, OBLONG
-
245211722 PLATE, BACKERPLATE, BACKER
