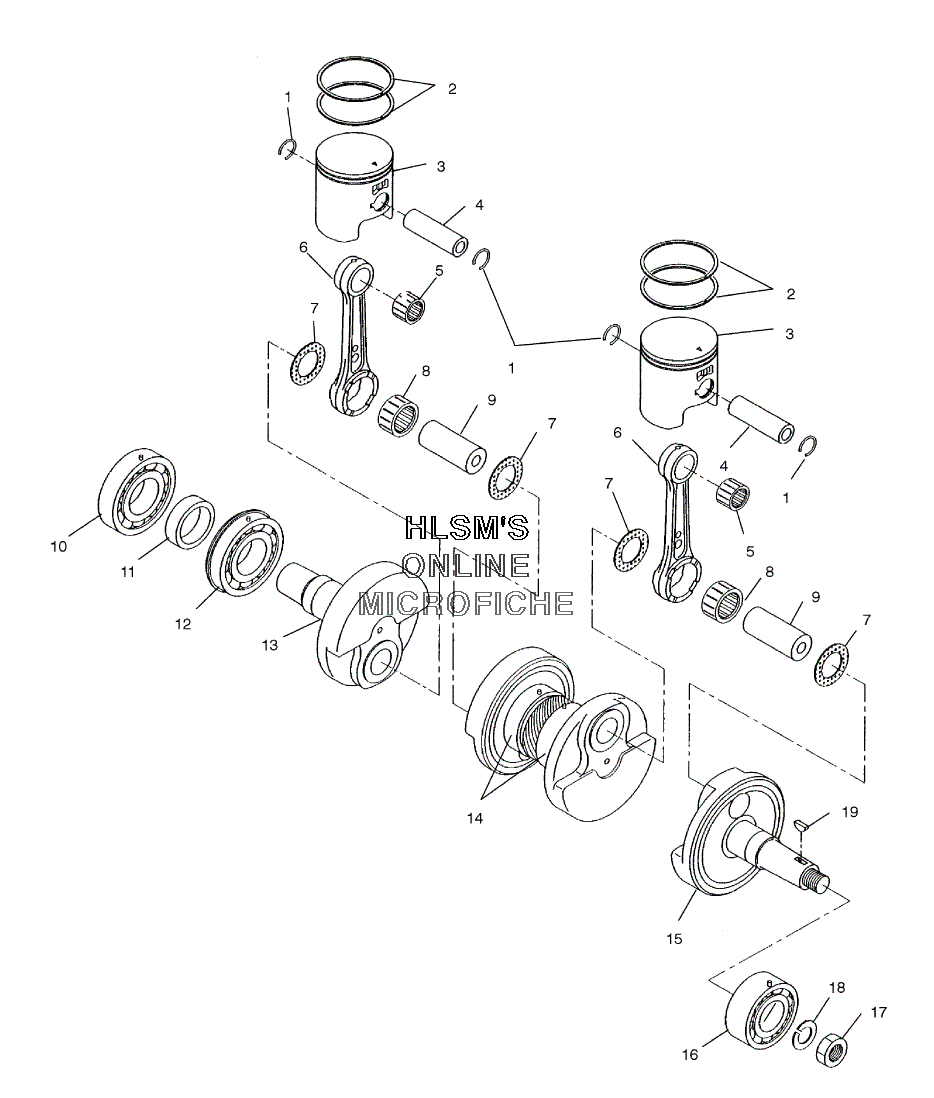

PISTON AND CRANKSHAFT для Polaris SPORT TOURING (S04NU5BS) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    3084167 CLIP, PISTON PIN
    CLIP, PISTON PIN
  • 2
    3086988 SET PISTON, RING (STANDARD)
    SET PISTON, RING (STANDARD)
  • 2
    3086989 SET PISTON, RING (0.25 O/S)
    SET PISTON, RING (0.25 O/S)
  • 2
    3086990 SET PISTON, RING (0.50 O/S)
    SET PISTON, RING (0.50 O/S)
  • 3
    3088216 PISTON (STANDARD) (INCL. 1)
    PISTON (STANDARD) (INCL. 1)
  • 3
    3088217 PISTON (0.25 O/S) (INCL. 1)
    PISTON (0.25 O/S) (INCL. 1)
  • 3
    3088218 SET, PISTON (0.50 O/S) (INCL. 1)
    SET, PISTON (0.50 O/S) (INCL. 1)
  • 4
    3083838 PIN, PISTON
    PIN, PISTON
  • 5
    3083216 BEARING SMALL END
    BEARING SMALL END
  • 6
    3240083 ROD, CONNECTING
    ROD, CONNECTING
  • 7
    3083277 SPACER, CRANKPIN
    SPACER, CRANKPIN
  • 8
    3086390 BEARING END, LARGE
    BEARING END, LARGE
  • 9
    3083456 PIN, CRANK 2
    PIN, CRANK 2
  • 10
    3085754 BEARING, BALL
    BEARING, BALL
  • 11
    3085677 SPACER
    SPACER
  • 12
    3085753 BEARING, BALL
    BEARING, BALL
  • 13
    3088199 CRANKSHAFT 3 (PTO SIDE)
    CRANKSHAFT 3 (PTO SIDE)
  • 14
    3084586 BEARING, BALL
    BEARING, BALL
  • 15
    3088198 CRANKSHAFT ASSY (INCL. 7-16)
    CRANKSHAFT ASSY (INCL. 7-16)
  • 15
    3087177 CRANKSHAFT 1 (MAG SIDE)
    CRANKSHAFT 1 (MAG SIDE)
  • 16
    3084681 BEARING, BALL
    BEARING, BALL
  • 17
    3083093 NUT
    NUT
  • 18
    3083094 WASHER SPRING
    WASHER SPRING
  • 19
    3080130 KEY WOODRUFF
    KEY WOODRUFF
  • 19
    3085674 CRANKSHAFT 2, CENTER (INCL. 9)
    CRANKSHAFT 2, CENTER (INCL. 9)
