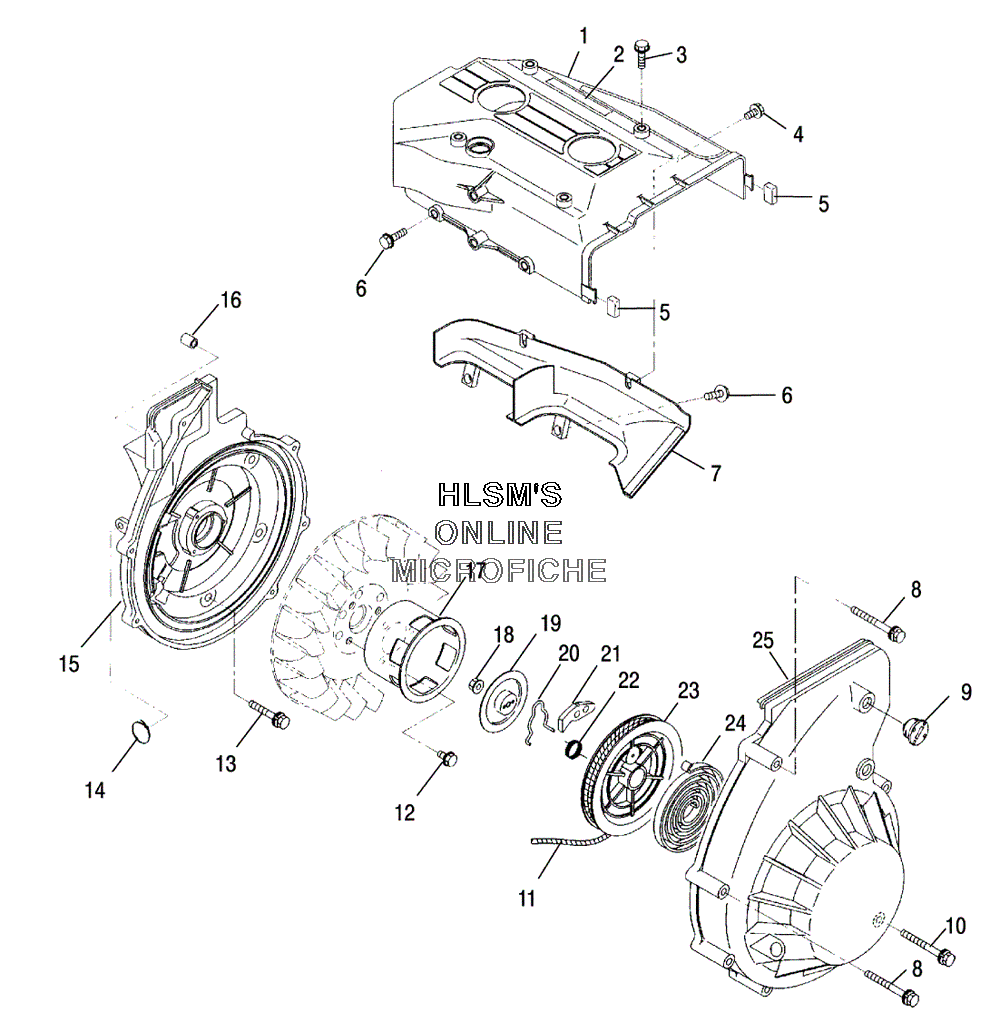

STARTER - RECOIL ASSEMBLY W/ BLOWER HOUSING для Polaris 550 PRO X FAN (S04NX5BS) - 2004 года выпуска`
-
№АртикулНазвание
-
13086991 BAFFLE 1 CYLINDER ASSYBAFFLE 1 CYLINDER ASSY
-
27077756 DECAL "POLARIS" ENGINE SHROUD (RED)DECAL "POLARIS" ENGINE SHROUD (RED)
-
33084566 BOLT, FLANGEBOLT, FLANGE
-
43085693 BOLT, FLANGEBOLT, FLANGE
-
53085690 CAP, CYLINDER BAFFLECAP, CYLINDER BAFFLE
-
63085694 BOLT, FLANGEBOLT, FLANGE
-
73085691 BAFFLE #2, CYLINDERBAFFLE #2, CYLINDER
-
83083550 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
93086792 PLUG, RUBBERPLUG, RUBBER
-
103082030 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
112870621 ROPE, NYL.STARTER (100FT)ROPE, NYL.STARTER (100FT)
-
123085688 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
133084225 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
-
143084823 BAND, WIREBAND, WIRE
-
153087020 HOUSING BLOWERHOUSING BLOWER
-
163084857 PIN, STRAIGHTPIN, STRAIGHT
-
173087181 PULLEY, STARTERPULLEY, STARTER
-
183083381 NUT, FLANGENUT, FLANGE
-
193083464 PLATE, FRICTIONPLATE, FRICTION
-
203083379 SPRING, FRICTIONSPRING, FRICTION
-
213087207 RATCHETRATCHET
-
223083463 SPRING, RETURNSPRING, RETURN
-
233083377 REEL ASSYREEL ASSY
-
243083376 SPRING, SPIRALSPRING, SPIRAL
-
253087206 STARTER RECOIL ASSY (INCL.11, 18-25)STARTER RECOIL ASSY (INCL.11, 18-25)
-
253087180 STARTER CASE COMPLETESTARTER CASE COMPLETE
