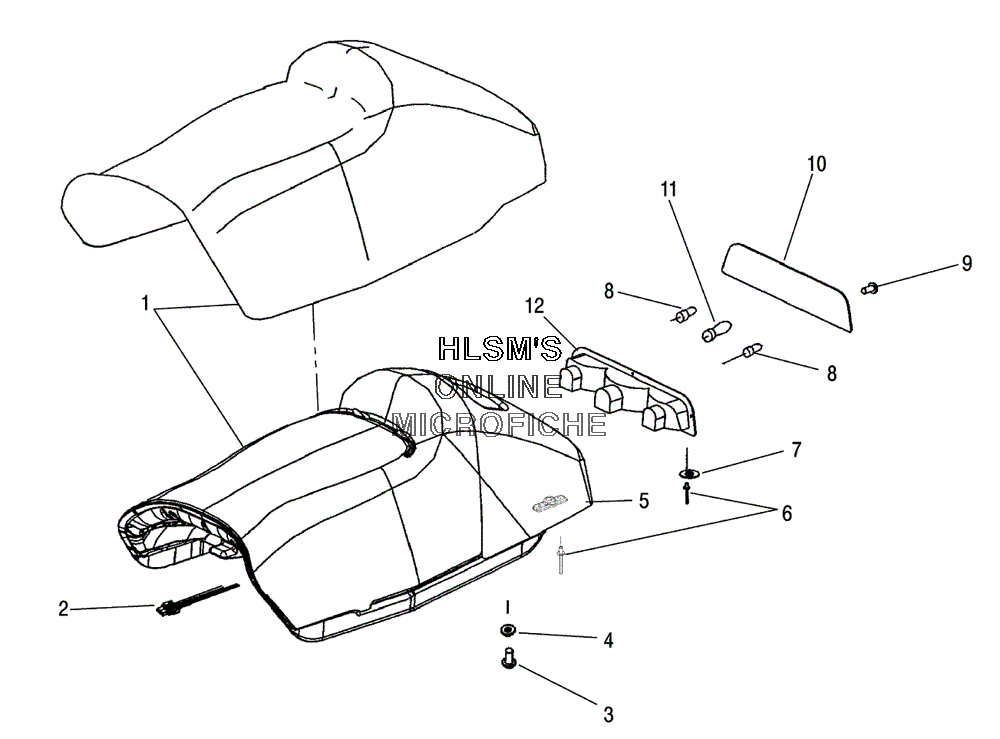

SEAT W/ TAILLIGHT для Polaris 550 PRO X FAN (S04NX5BS) - 2004 года выпуска
-
№АртикулНазвание
-
12683347 SEAT ASSY (INCL. 1, 2, 12)SEAT ASSY (INCL. 1, 2, 12)
-
12683348 SEAT COVER ASSYSEAT COVER ASSY
-
22460399 HARNESS, TAILLIGHTHARNESS, TAILLIGHT
-
37517219 SCREWSCREW
-
47558301 WASHER, FLATWASHER, FLAT
-
55631194 NUT SEATNUT SEAT
-
67621319 RIVETRIVET
-
77555727 WASHERWASHER
-
84030024 BULB, TAILLIGHTBULB, TAILLIGHT
-
97511840 SCREWSCREW
-
105430423 LENS, TAILLIGHTLENS, TAILLIGHT
-
114030045 BULBBULB
-
125433341 HOUSING TAILLIGHTHOUSING TAILLIGHT
