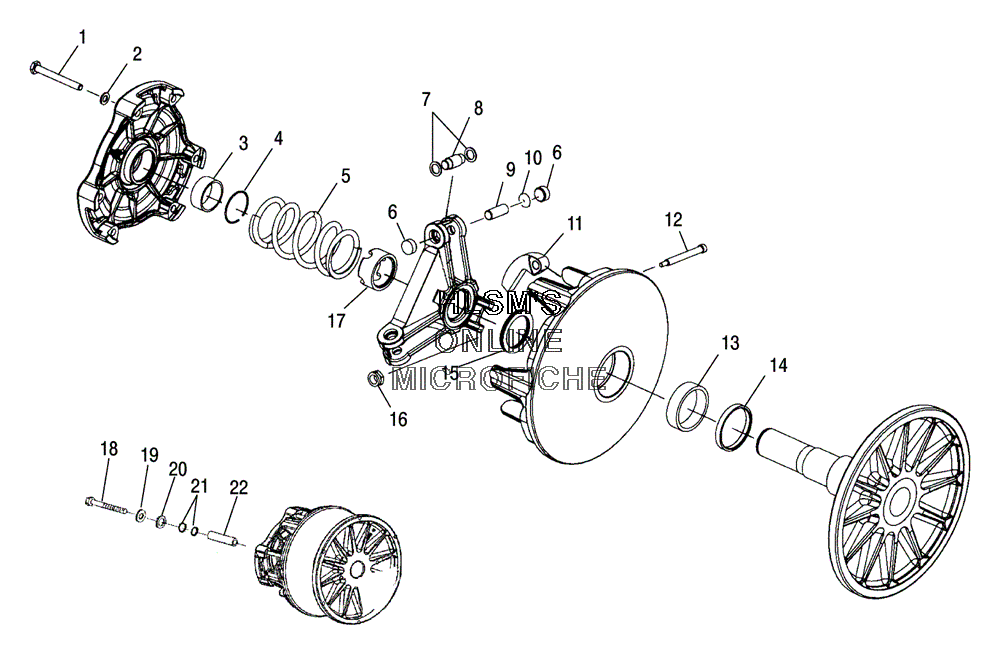

CLUTCH - DRIVE для Polaris 550 PRO X FAN (S04NX5BS) - 2004 года выпуска`
-
№АртикулНазвание
-
17512265 BOLTBOLT
-
27552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
33576516 BEARING, COVERBEARING, COVER
-
47710417 RING, RETAINING, COVERRING, RETAINING, COVER
-
57041781 SPRING CLUTCH (DARK BLUE/WHITE)SPRING CLUTCH (DARK BLUE/WHITE)
-
65430445 BUTTON, GUIDEBUTTON, GUIDE
-
75430945 WASHERWASHER
-
81321622 ROLLER AND BUSHING ASSYROLLER AND BUSHING ASSY
-
95133079 PIN ROLLER 1" SBNPIN ROLLER 1" SBN
-
102200387 SHIM, DRIVE CLUTCH KITSHIM, DRIVE CLUTCH KIT
-
111321586 WT/BUSH.ASSYWT/BUSH.ASSY
-
127515105 PIN, WT. HARDENEDPIN, WT. HARDENED
-
133576502 BEARING, SLEEVEBEARING, SLEEVE
-
145010188 INSERT, MOVEABLEINSERT, MOVEABLE
-
155210754 SPACER (.050)SPACER (.050)
-
155210753 SPACER (.032)SPACER (.032)
-
155210752 SPACER (.020)SPACER (.020)
-
167541906 NUT FLEXLOCNUT FLEXLOC
-
175020425 NUT, JAMNUT, JAM
-
187517776 SCREW HEXAGON CAPSCREW HEXAGON CAP
-
197575202 WASHER LOCKWASHER LOCK
-
205010287 WASHER, CLUTCH RETAINERWASHER, CLUTCH RETAINER
-
215410507 O-RINGO-RING
-
225020513 SPACERSPACER
-
221321699 CLUTCH, BASIC #69 ASSY (DRIVE) (INCL. ALL LESS 5, 11)CLUTCH, BASIC #69 ASSY (DRIVE) (INCL. ALL LESS 5, 11)
