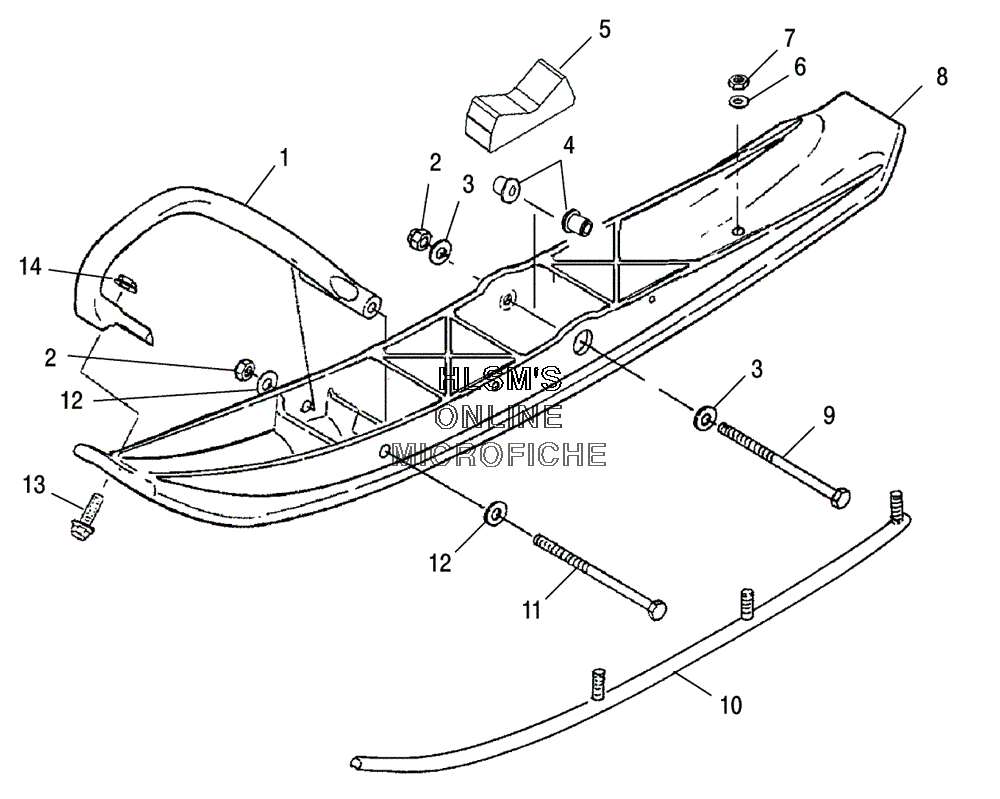

SKI ASSEMBLY для Polaris 550 PRO X FAN (S04NX5BS) - 2004 года выпуска
-
№АртикулНазвание
-
15434165-293 TOE PLASTIC SKI (BLACK)TOE PLASTIC SKI (BLACK)
-
27542439 NUT, NYLOKNUT, NYLOK
-
37556130 WASHERWASHER
-
45132637 BUSHING, METAL (.390 ID)BUSHING, METAL (.390 ID)
-
55412018 STOP, RUBBERSTOP, RUBBER
-
67556175 WASHER FLATWASHER FLAT
-
77542324 NUT, NYLOKNUT, NYLOK
-
81821327-070 COMPRESSION SKI, DEEPSADLSS ASSY (BLACK)COMPRESSION SKI, DEEPSADLSS ASSY (BLACK)
-
97517968 SCREW HEXAGON CAPSCREW HEXAGON CAP
-
102871688 SKAG, CARBURETOR IDE 60ШCOMPRESSION KIT (PAIR)SKAG, CARBURETOR IDE 60ШCOMPRESSION KIT (PAIR)
-
117515514 BOLTBOLT
-
127555832 WASHERWASHER
-
137515307 BOLTBOLT
-
147542321 NUT, FLANGENUT, FLANGE
