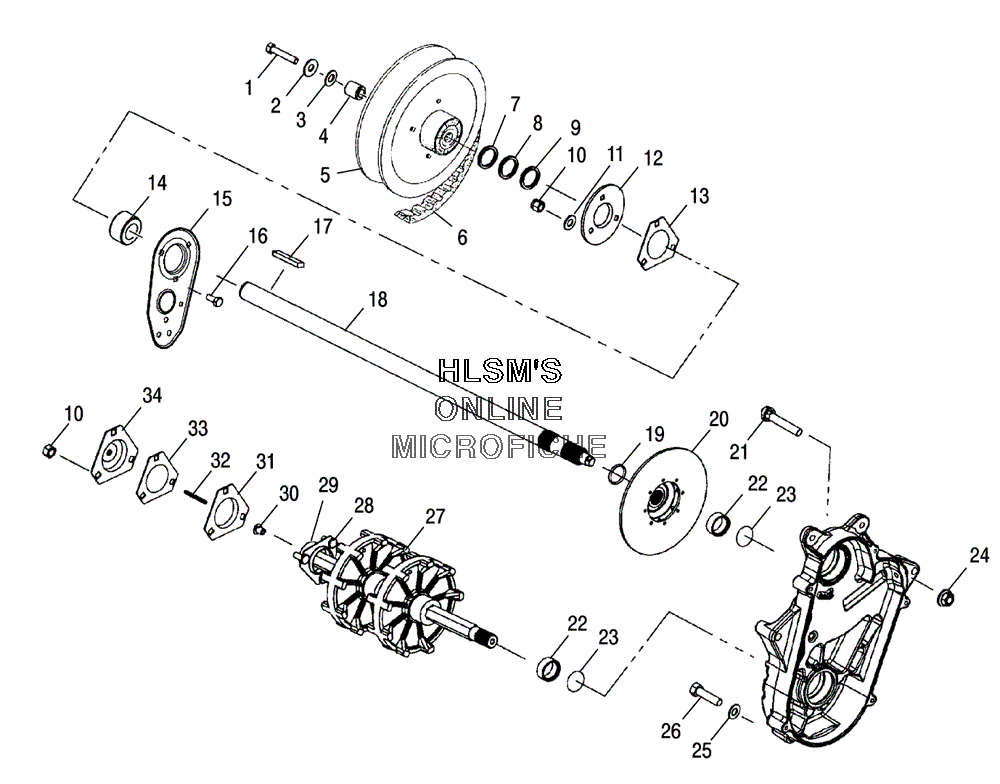

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris 550 PRO X FAN (S04NX5BS) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    7517830 SCREW
    SCREW
  • 2
    7555701 WASHER, FLAT
    WASHER, FLAT
  • 3
    7555734 WASHER, FLAT
    WASHER, FLAT
  • 4
    5133106 SPACER INPUT SHAFT (.38)
    SPACER INPUT SHAFT (.38)
  • 6
    3211078 BELT DRIVE
    BELT DRIVE
  • 7
    7555917 WASHER
    WASHER
  • 8
    7555864 WASHER
    WASHER
  • 9
    7556509 BUSHING
    BUSHING
  • 10
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 11
    7558402 WASHER, FLAT
    WASHER, FLAT
  • 12
    5241359 FLANGE RD, RELUBE WITH ZERK
    FLANGE RD, RELUBE WITH ZERK
  • 13
    5811095 GASKET, JACKSHAFT (BLACK)
    GASKET, JACKSHAFT (BLACK)
  • 14
    3514519 BEARING, JACKSHAFT
    BEARING, JACKSHAFT
  • 15
    5245889-067 FLANGETTE JACKSHAFT, REINFORCED (BLACK)
    FLANGETTE JACKSHAFT, REINFORCED (BLACK)
  • 16
    7512377 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 17
    7721128 KEY
    KEY
  • 18
    1332254 JACKSHAFT, SOLID ASSY(INCL. 19)
    JACKSHAFT, SOLID ASSY(INCL. 19)
  • 19
    7710422 RING, RETAINING
    RING, RETAINING
  • 20
    1910703 BRAKE DISC FORGED KIT
    BRAKE DISC FORGED KIT
  • 21
    7515428 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 22
    5020588 SLEEVE, SEAL
    SLEEVE, SEAL
  • 23
    5410613 O-RING
    O-RING
  • 24
    7542423 NUT, FLANGE
    NUT, FLANGE
  • 25
    7558403 WASHER, WROUGHT
    WASHER, WROUGHT
  • 26
    7512492 SCREW
    SCREW
  • 27
    1590346 DRIVE SHAFT 2 DRIVE W ASSY (SMOOTH) (INCL. 28-30)
    DRIVE SHAFT 2 DRIVE W ASSY (SMOOTH) (INCL. 28-30)
  • 28
    1012945 FLANGETTE WITH SCREWS ASSY
    FLANGETTE WITH SCREWS ASSY
  • 29
    3514525 BEARING
    BEARING
  • 30
    3280019 BUSHING METAL SPEEDOMETER
    BUSHING METAL SPEEDOMETER
  • 31
    5243529 FLANGETTE OFFSET, WITH HOLE
    FLANGETTE OFFSET, WITH HOLE
  • 32
    3280017 KEY, SPEEDOMETER, SQUARE
    KEY, SPEEDOMETER, SQUARE
  • 33
    5830012 GASKET, DRIVE ADAPTOR
    GASKET, DRIVE ADAPTOR
  • 34
    3280116 ADAPTER, DRIVE WITH ZERK
    ADAPTER, DRIVE WITH ZERK
