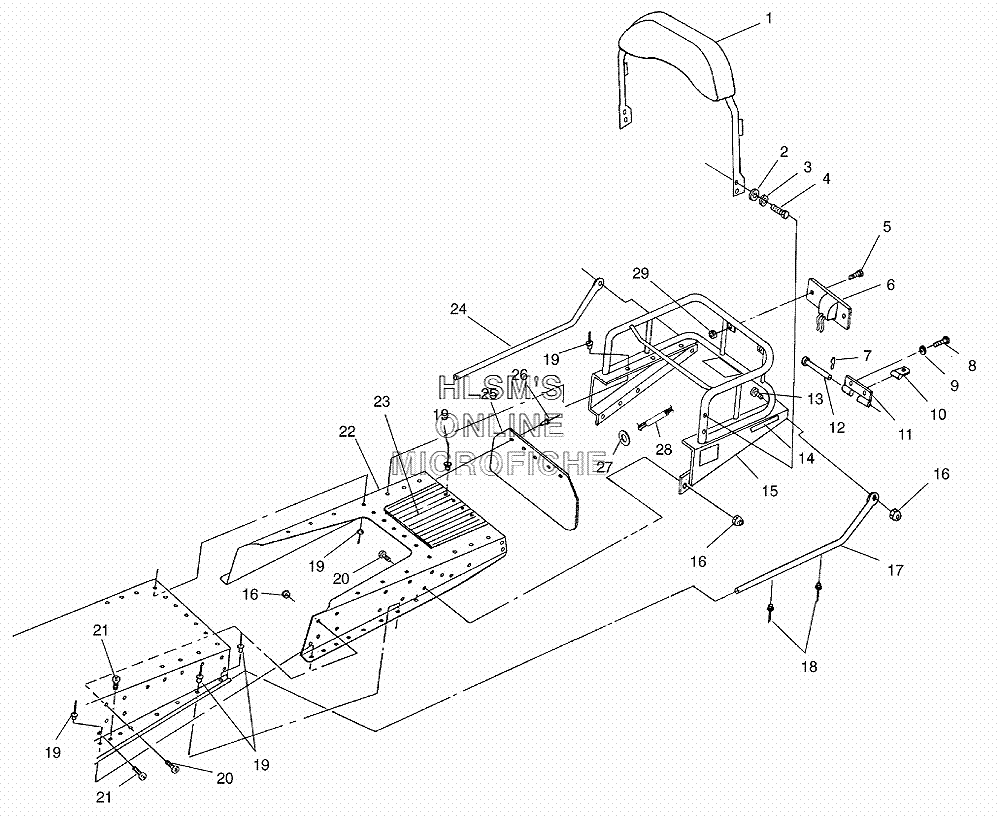

TUNNEL EXTENSION ASSEMBLY W/RACK для Polaris INDY 340 TOURING (S03LT3AS) - 2003 года выпуска`
-
№АртикулНазвание
-
12681356 BACKREST ASSY (INCL. COVER)BACKREST ASSY (INCL. COVER)
-
12681265 COVER, BACKRESTCOVER, BACKREST
-
27555843 WASHER, WROUGHTWASHER, WROUGHT
-
37552606 WASHERWASHER
-
47515341 SCREWSCREW
-
57511989 SCREWSCREW
-
64030041 TAILLIGHT ASSY (INCL. BULB, LENS, GASKET)TAILLIGHT ASSY (INCL. BULB, LENS, GASKET)
-
64030063 BULB TAILLIGHT EXTENTION DUTYBULB TAILLIGHT EXTENTION DUTY
-
64032014 LENSLENS
-
64032015 GASKETGASKET
-
77661401 PIN, COTTERPIN, COTTER
-
87512490 SCREWSCREW
-
97552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
101011518-067 HITCH WELD (BLACK) (U.S.)HITCH WELD (BLACK) (U.S.)
-
111011624-067 TOWHITCHTOWHITCH
-
127662209 CLEVIS PINCLEVIS PIN
-
137512282 BOLT (BLACK)BOLT (BLACK)
-
142670133 REFLECTOR ASSY (RED)REFLECTOR ASSY (RED)
-
152670129-067 RACK (REAR/BLACK)RACK (REAR/BLACK)
-
167542101 NUT HEXAGON LOCKNUT HEXAGON LOCK
-
175224461-067 TUBE TUNNEL (BLACK/LEFT)TUBE TUNNEL (BLACK/LEFT)
-
187621453 RIVETRIVET
-
197661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
207515107 BOLTBOLT
-
217515106 BOLTBOLT
-
221012612-067 CLOSEOFF WELD (BLACK)CLOSEOFF WELD (BLACK)
-
235410619 PROTECTOR, BEDPROTECTOR, BED
-
245224466-067 TUBE TUNNEL (BLACK/RIGHT)TUBE TUNNEL (BLACK/RIGHT)
-
255410394-1106 FLAP SNOW (BLACK W/WHITE)FLAP SNOW (BLACK W/WHITE)
-
267621418 RIVET, POPRIVET, POP
-
275410047 WASHERWASHER
-
285521246 PROTECTOR, HARNESSPROTECTOR, HARNESS
-
297541925 NUT, NYLOK 10-24 YNUT, NYLOK 10-24 Y
