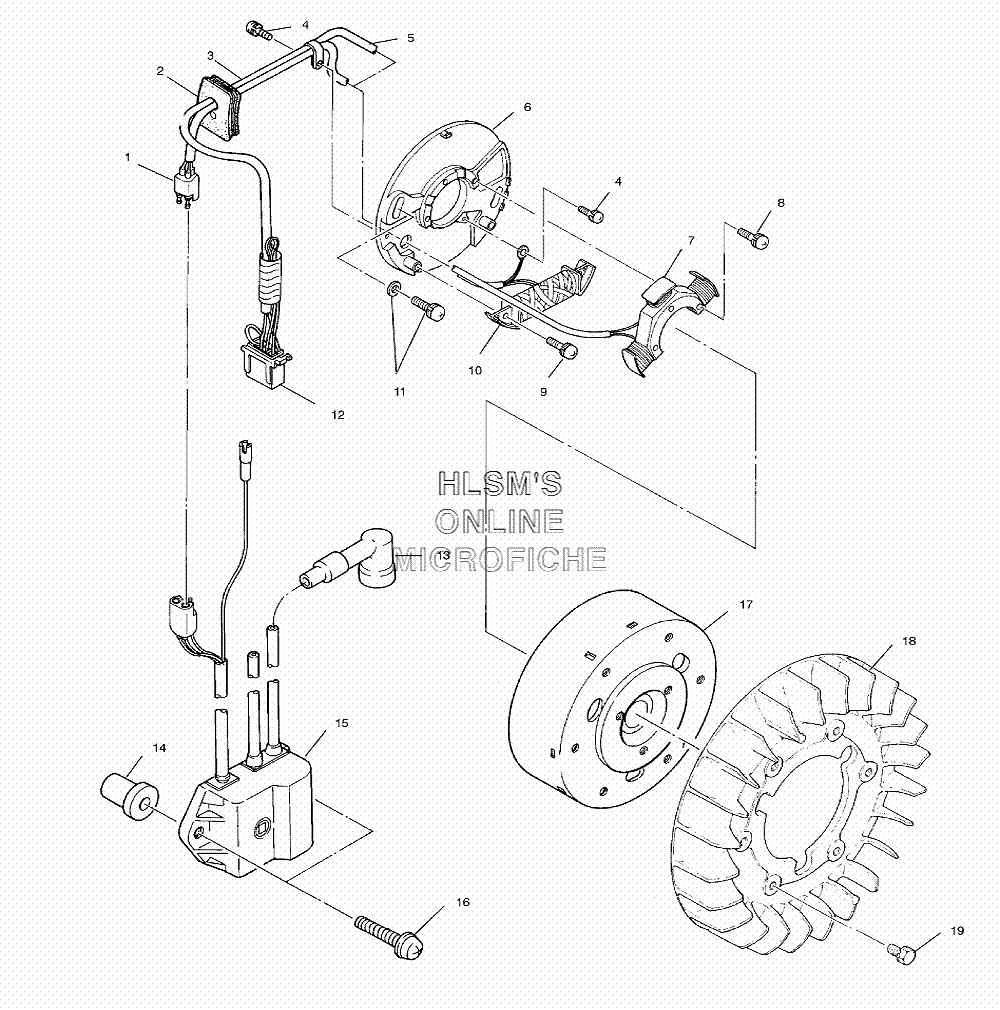

ELECTRICAL - MAGNETO ASSEMBLY W/ COIL для Polaris INDY 340 TOURING (S03LT3AS) - 2003 года выпуска
-
№АртикулНазвание
-
13083150 COUPLER 3PCOUPLER 3P
-
23082969 GROMMETGROMMET
-
33084259 HARNESS, WIRE (INCL. 1-3, 12)HARNESS, WIRE (INCL. 1-3, 12)
-
43081260 SCREW AND WASHER, ASSYSCREW AND WASHER, ASSY
-
53081296 CLAMPCLAMP
-
63085658 PLATE ASSY (INCL. 1-10, 12)PLATE ASSY (INCL. 1-10, 12)
-
63083987 PLATE, COILPLATE, COIL
-
73085659 STATOR #1STATOR #1
-
83083736 SCREW AND WASHER, ASSYSCREW AND WASHER, ASSY
-
93083423 SCREW AND WASHER, ASSYSCREW AND WASHER, ASSY
-
103083984 COIL, EXCITERCOIL, EXCITER
-
113082175 SCREW AND WASHER, ASSYSCREW AND WASHER, ASSY
-
123081513 COUPLER, MALECOUPLER, MALE
-
134020129 RESISTOR PLUG CAPRESISTOR PLUG CAP
-
143083240 NUT RUBBERNUT RUBBER
-
153083723 CDI UNITCDI UNIT
-
163083784 SCREW AND WASHERSCREW AND WASHER
-
173085661 FLYWHEEL ASSY (INCL. 17-19)FLYWHEEL ASSY (INCL. 17-19)
-
183083152 BLOWERBLOWER
-
193085660 BOLT AND WASHER ASSYBOLT AND WASHER ASSY
