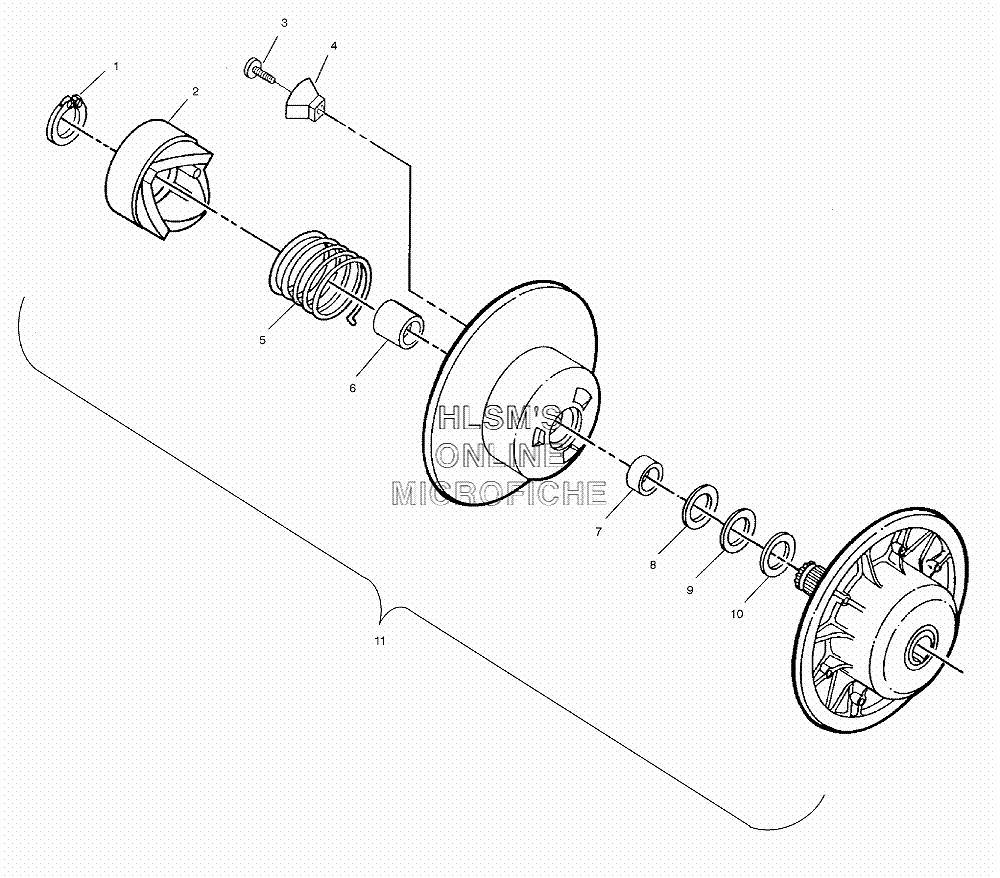

CLUTCH - DRIVEN для Polaris INDY 340 TOURING (S03LT3AS) - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    7710423 RING, RETAINING
    RING, RETAINING
  • 2
    5630383 RAMP, STATIONARY
    RAMP, STATIONARY
  • 3
    7511854 BOLT
    BOLT
  • 4
    5430766 BUTTON, RAMP
    BUTTON, RAMP
  • 5
    7041499 SPRING, CLUTCH SVR.
    SPRING, CLUTCH SVR.
  • 6
    3576511 BUSHING, MOVEABLE (1")
    BUSHING, MOVEABLE (1")
  • 7
    3576504 BUSHING, MOVEABLE (1/2")
    BUSHING, MOVEABLE (1/2")
  • 8
    7556804 WASHER (.030)
    WASHER (.030)
  • 9
    7556076 WASHER (.025)
    WASHER (.025)
  • 10
    7555898 WASHER (.020)
    WASHER (.020)
  • 11
    1322197 CLUTCH DRIVEN, P-90 (SILVER) (INCL. 1-10)
    CLUTCH DRIVEN, P-90 (SILVER) (INCL. 1-10)
